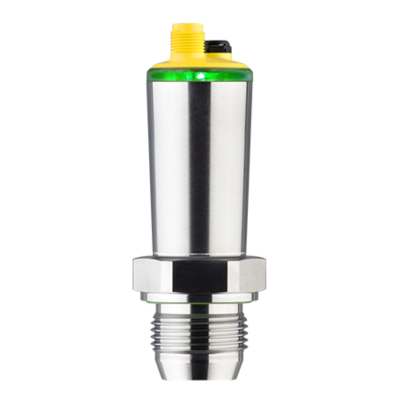

VEGABAR 29
Pressure sensor with switching function
With metallic measuring cell
Application area
From thread ½”, hygienic connections, universal connection G1″ for hygiene adapter, 4 … 20 mA, three-wire: PNP/NPN, 4 … 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display
VEGABAR 29 is a universal pressure transmitter with metal measuring cell for measurement of gases, vapours and liquids up to 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping.
Your benefit
- Universally applicable due to fully welded metallic measuring cell
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
Technical specifications
Measuring range – Pressure
- -1 … 1000 bar [Bar – kPa – psi]
Process temperature
- -40 … 130 °C [°C – °F]
Accuracy
- 0.3 %
Materials, wetted parts
- 316L
Threaded connection
- ≥ G¼, ≥ ¼ NPT

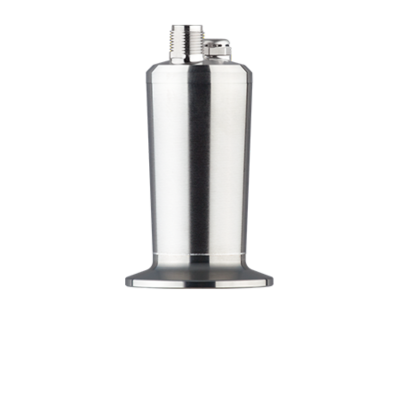

Hygenic fittings
- Clamp ≥ 2″, DN50 – DIN32676, ISO2852
- Clamp ≥ 1″ – DIN32676, ISO2852
- Clamp ≥ 1½” – DIN32676, ISO2852
- Slotted nut ≥ 1½”, ≥ DN40 – DIN 11851
- Slotted nut ≥ DN25 – DIN 11851
- SMS 1145 DN51
- SMS DN38
- Hygienic fittings ≥ DN25 – DIN11864-1-A
- Hygienic fittings ≥ DN40 – DIN11864-1-A
- Varivent N50-40
- SMS DN25
- Ingold connection PN10
- Varivent F25
Protection rating
- IP65
- IP68 (0,5 bar)/IP69
Output
- 4 … 20 mA
- Three-wire (PNP/NPN, 4 … 20 mA)
- IO-Link
Ambient temperature
- -40 … 70 °C
Approvals
Scope
- ATEX / Europe
- IEC / worldwide
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCOE / India
- KTL Korea
- TIIS / Japan
- IA
- c-UL-us
- UKEX
Explosion protection
- Intrinsic safety “i”
- Dust ignition protection “t”
- Increased safety “e”
Foodstuffs/Pharma
- 3A
- EHEDG
- FDA
- EG1935/2004
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
Display & adjustment
Adjustment
- Smartphone / Tablet / PC via Bluetooth
- PC, PACTware and DTM, IODD
Indication
- 360° status display
