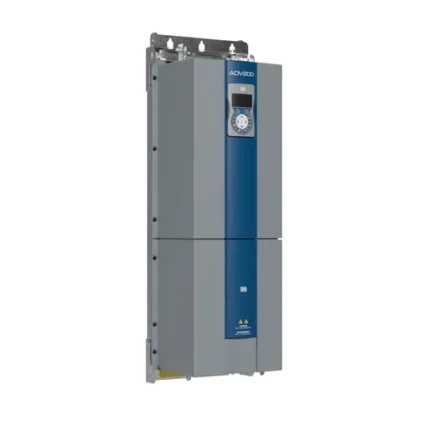

Variable speed drive ADV200
The ADV200 AC drive family has been designed and engineered to provide System Integrators and OEMs with a complete solution for demanding industrial applications. Developed through WEG’s passion for innovation and decades of expertise across a wide range of industries, the ADV200 delivers proven reliability and high performance. Its modular mechanical design, combined with advanced control and communication capabilities, ensures seamless integration into modern automation environments. Dedicated software applications further enhance flexibility, reducing time-to-market and enabling optimal results.
MAIN FEATURES
- Power range: from 0.75kW up to 355kW as single module, up to 1.65MW with parallel connection (Heavy Duty)
- Power Supply :
- 3 x 380…480Vac, 50/60Hz (-4 models )
- 3 x 500…690Vac, 50/60Hz (-6 models )
- 450 … 750 Vdc (-DC-4 models)
- 600 … 1,120 Vdc (-DC -6 models)
- 7 different mechanical sizes
- Field Oriented Control (Closed loop or sensorless), V/f Control (Closed loop or open loop)
- Asynchronous and synchronous motors
- HMI integrated as standard
- Broad range of option cards (encoders, I/Os, Fieldbus)
- Fast Link fiber optic communication for drive-to-drive synchronization
- Safe Torque Off (STO) card integrated as option
- SW applications dedicated to specific industries
- Certifications: CE. UL, cUL
APPLICATION SEGMENT
OPTIONAL BOARDS
The drive’s control hardware accommodates up to three slots for the installation of optional boards:
- Encoder boards (incremental, Sin/Cos, absolute)
- I/O Expansions (digital and analog)
- FastLink drive-to-drive synchronous communication
- Industrial Fieldbus
If needed by the application, up to three encoder boards can be installed in the same drive.
SOFTWARE APPLICATIONS
ADV200 supports SW applications solving complex technological tasks in high-demanding industrial sectors such as:
- Hoist & Crane
- Torque winder
- Electric line shaft
- Positioner
- PID IMM (Injection Moulding)
- Flying Shear
- PID
