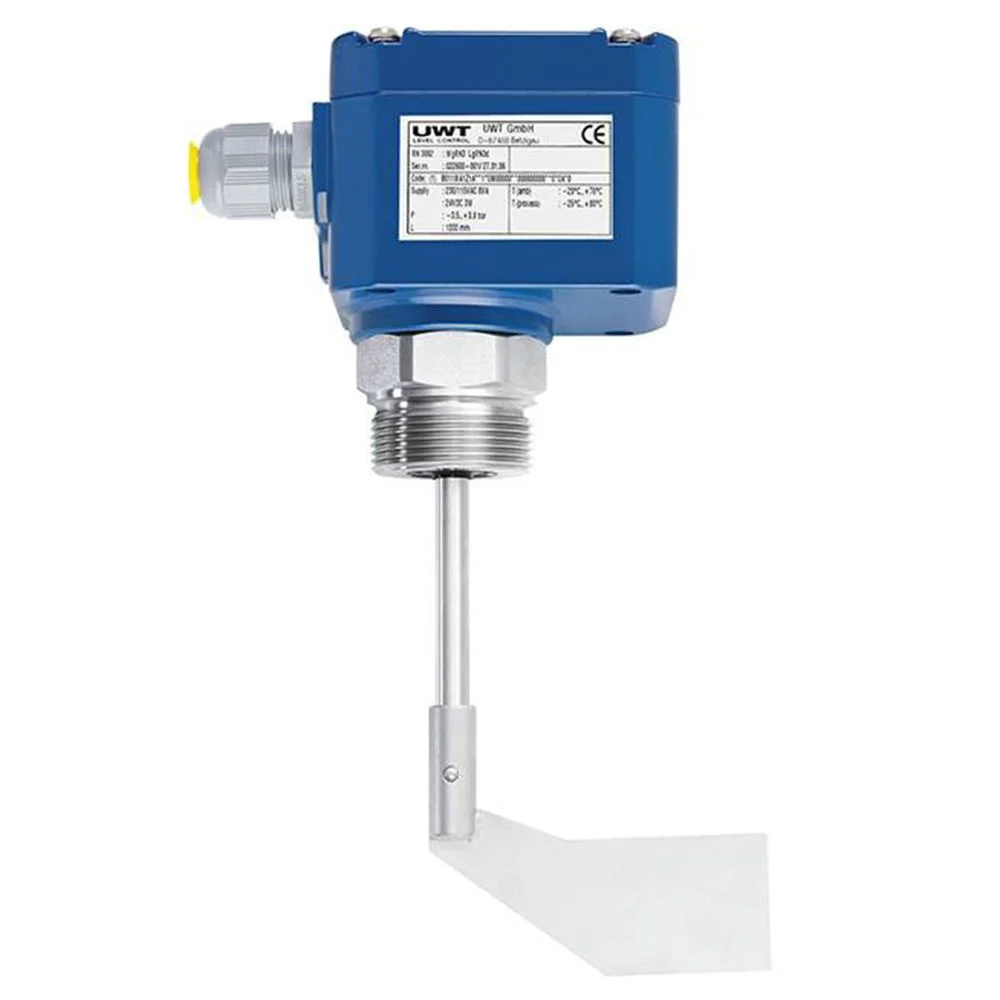

UWT RN 3001 AW11WA3B3A
Rotary paddle level switch
Application area
The rotating paddle detector Rotonivo® RN 3001 is used in storage and process vessels as a full, demand and empty detector in all bulk solids. It can be configured for process temperatures up to +1100°C and process overpressure up to 10 bar. Buildup or a dust-intensive process environment does not in any way affect the accuracy of the measurement results of the level indicator. In addition, the sensor, which has been developed in accordance with EHEDG guidelines, meets increased hygiene requirements.
Your benefit
- Simple, reliable and maintenance-free all-rounder in bulk materials
- Can be configured for almost any application
- Plug and play level limit switch without calibration
Specifications
| Measurement principle | Rotary Paddle |
|---|---|
| Measuring task | Point level measurement |
| Versions |
|
| Medium | Solids |
| Mounting position |
|
| Ambient temperature | -40°C … +60°C (-40°F … +140°F) |
| Process temperature | -40°C … +1100°C (-40°F … +2012°F) |
| Process pressure | -0,9 bar … +10 bar (-13.1 psi … +145 psi) |
| Minimum sensitivity | > 15 g/l (> 0.9 lbs/ft3) |
| Housing type | standard |
| Housing material |
|
| Housing protection rating | IP66 |
| Threaded connection |
|
| Flange connection |
|
| Hygienic fittings | ≥ Triclamp 2″ |
| Wetted materials |
|
| Accuracy | — |
| Mechanical load |
|
| Min. immersion length | 70 mm (2.76″) |
| Max. immersion length | 1 m (3.34′) |
| Power supply |
|
| Signal output |
|
| Approvals |
|
| Ex markings | Ex t |
| Hygienic / Pharma |
|
| Ship approval | — |
| Overfill protection | — |
| SIL qualification | — |
| Further approvals | — |
| Adjustment possibility |
|
| Optical indicator | LED |
| Features |
|
