Overview

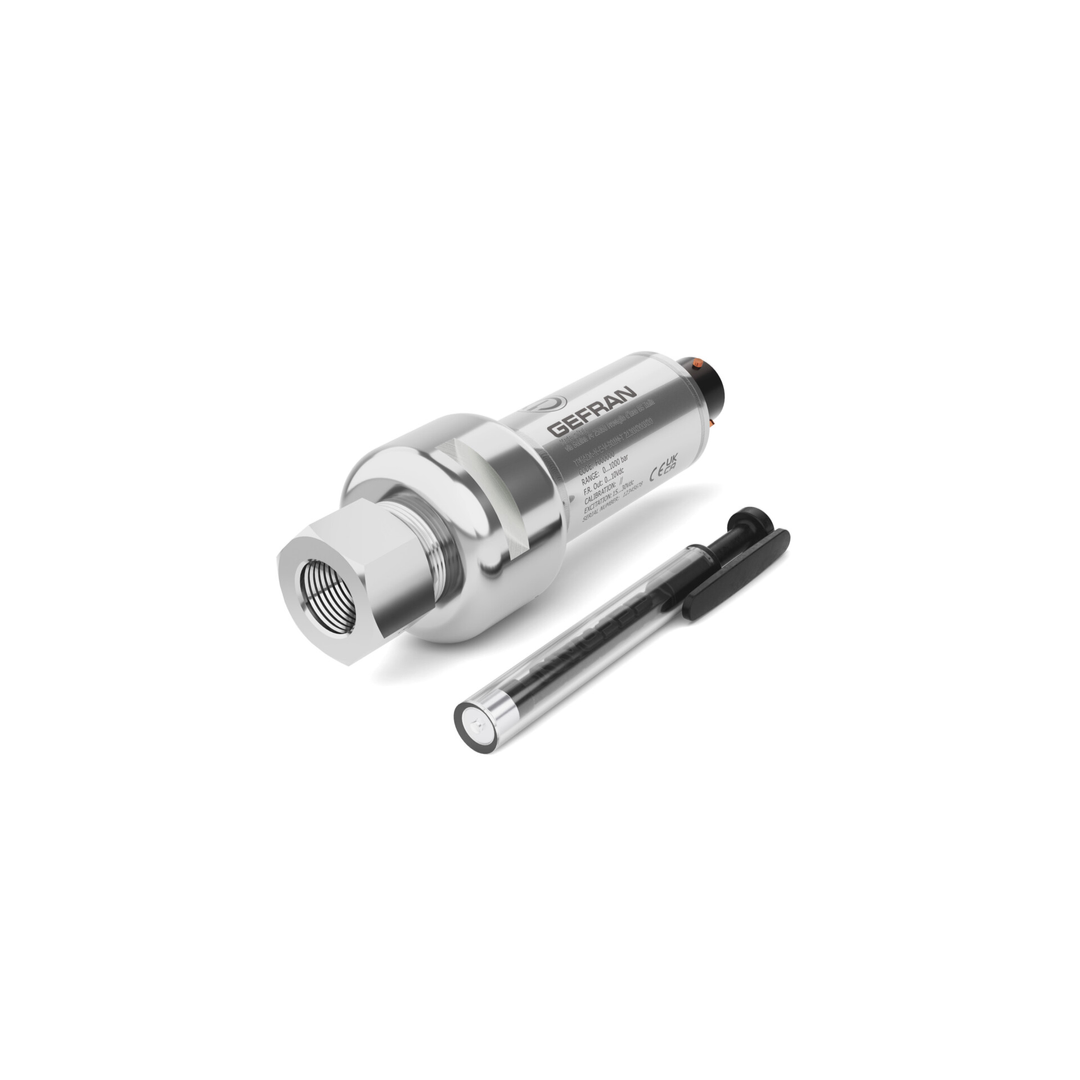

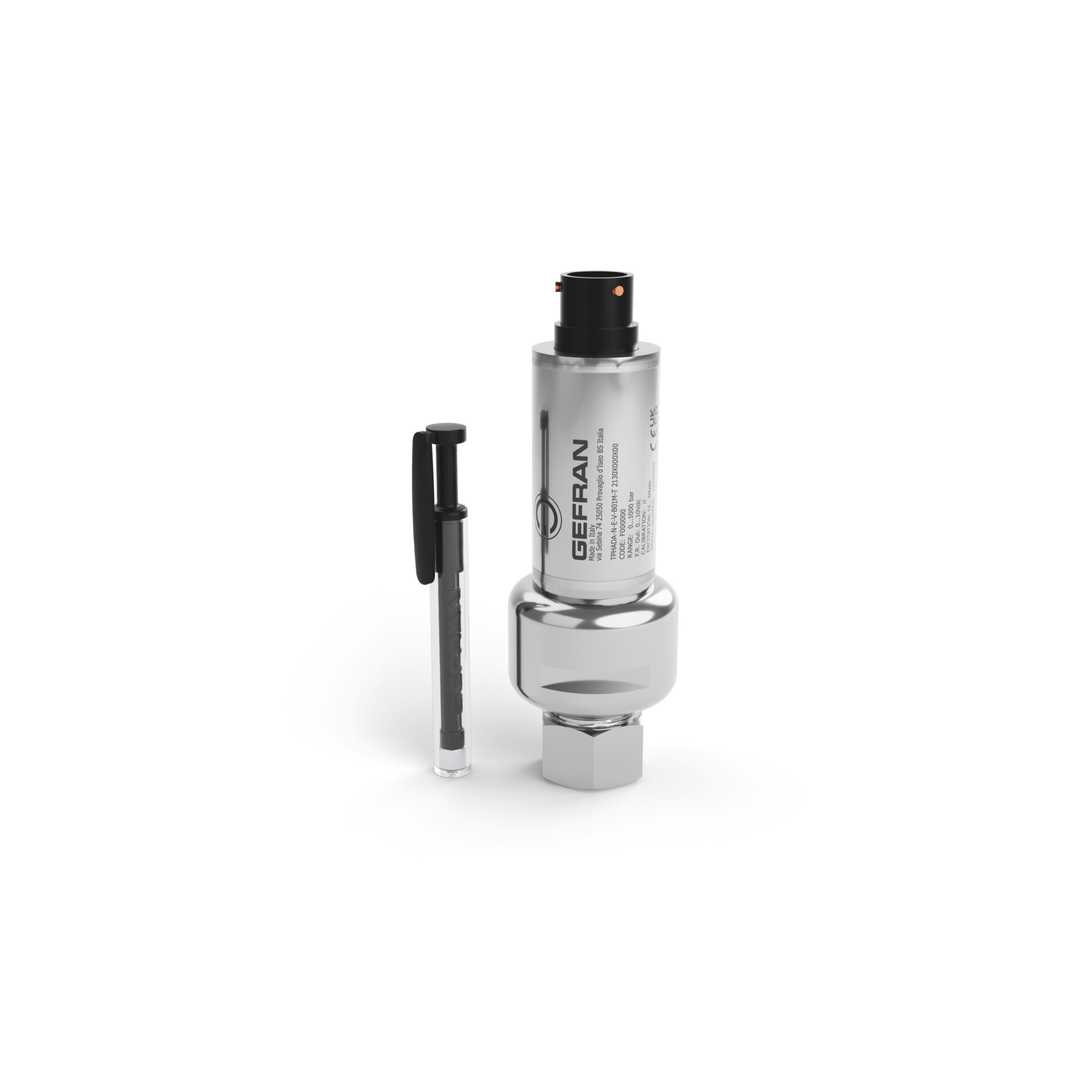

Series TPHADA transmitters for high pressure are based on bonded strain gauge on stainless technology.
The measurement diaphragm with monolithic structure makes the transmitter highly efficient, reliable, and safe – extremely important factors in high-pressure applications.
The entire mechanical structure, with vent holes, is designed to guarantee safety and makes the transducer suitable for measuring both static and dynamic pressure, even under harsh conditions.
The TPHADA is particularly suitable for applications in high and very high pressure hydraulic circuits, such as (for example) on test benches or on waterjet cutting machines.
State-of-the-art electronics provides a wide range of output signals in current and in voltage, and the innovative digital “Auto-Zero & Span” function provides quick and easy automatic adjustment of zero after installation with a simple touch of the magnetic pen (supplied).
Features
- Ranges: from: 0…1000 to 0…5000 bar
- Protection: IP65/IP67
- Wetted parts: 15-5PH / 17-4PH stainless steel
