Main features
- Ranges: from: 0…1000 to 0…5000 bar
- Accuracy: ± 0.1% FSO typical
- Protection: IP65/IP67
Available resources
Brochure
– Pressure Transudcers and Transmitters
– Gefran product range brochure
Datasheet
– TPH datasheet
User Manual
– Manual of electrical installation for pressure probes
Certifications
– EU_Conformity declaration – TPH
– UK Conformity declaration – TPH
– EU_Conformity declaration – TPH
Technical specifications
Overview

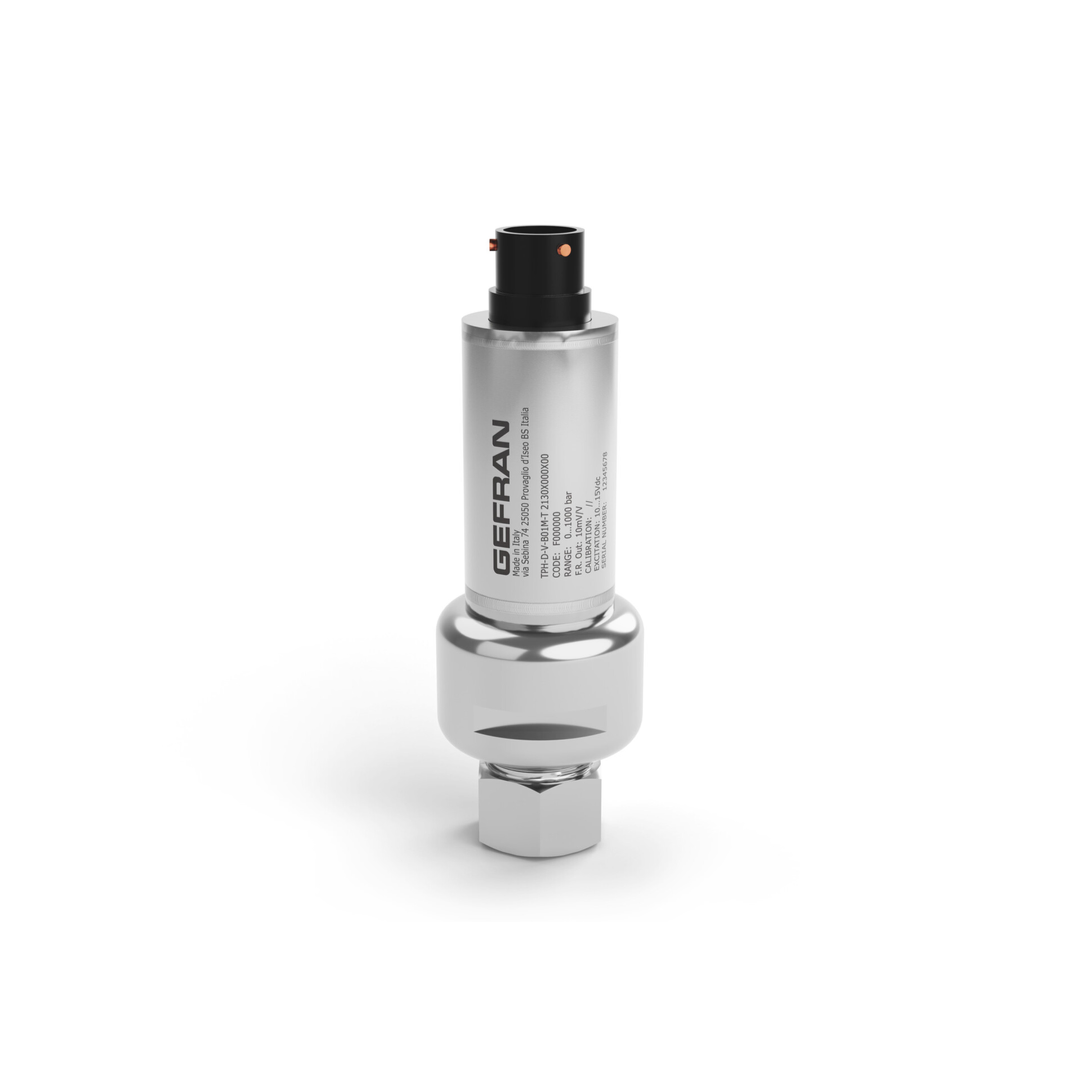

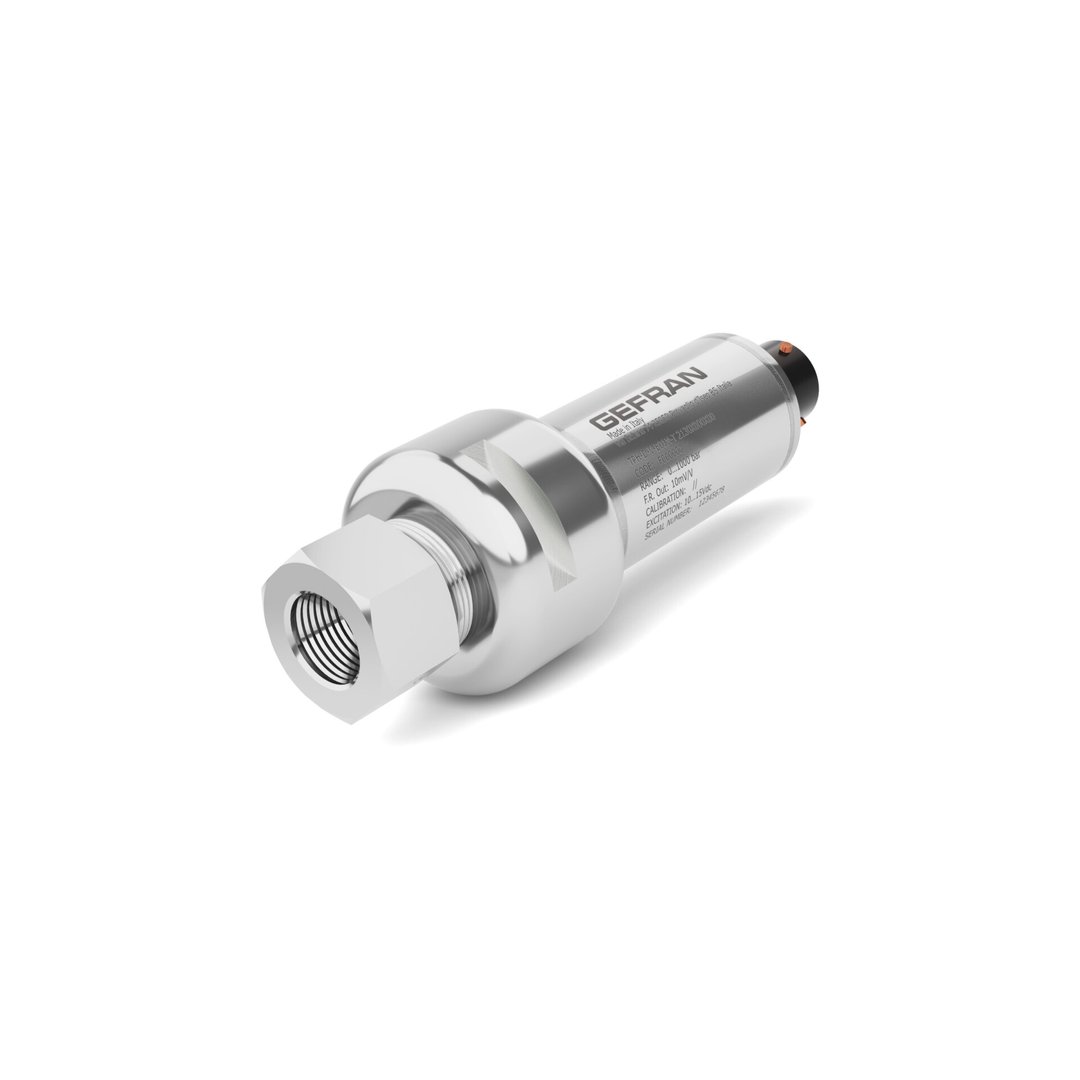

Series TPH transducers for high pressure are based on bonded strain gauge on stainless steel technology.
The measurement diaphragm with monolithic structure makes the transmitter highly efficient, reliable, and safe – extremely important factors in high-pressure applications.
The entire mechanical structure, with vent holes, is designed to guarantee safety and makes the transducer suitable for measuring both static and dynamic pressure, even under harsh conditions.
The TPH is particularly suitable for applications in high and very high pressure hydraulic circuits, such as (for example) on test benches or on waterjet cutting machines. State of the art components and high precision machining make the TPH the ideal product for all above requirements, where is needed the non-amplified transducer with mV/V output.
