Overview

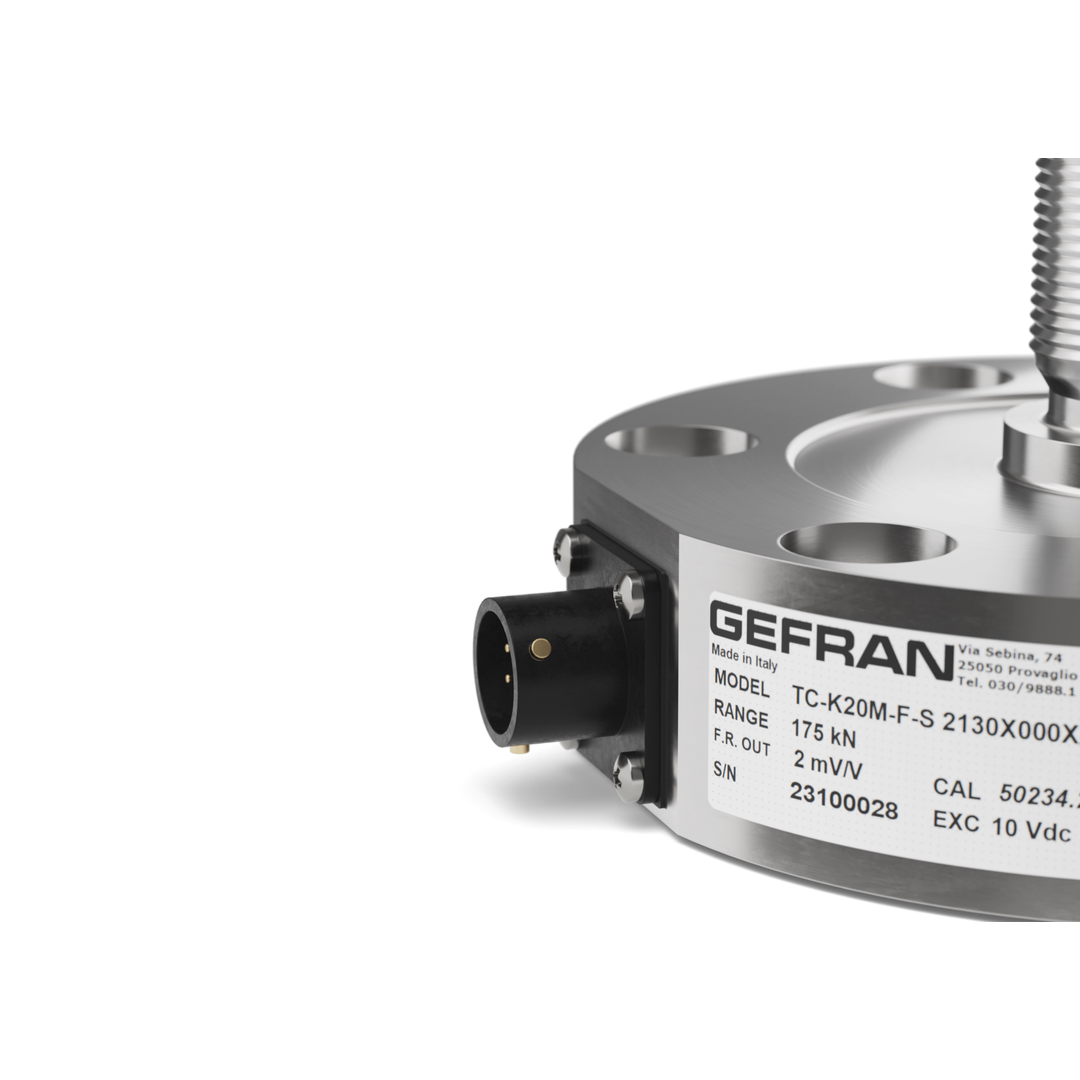

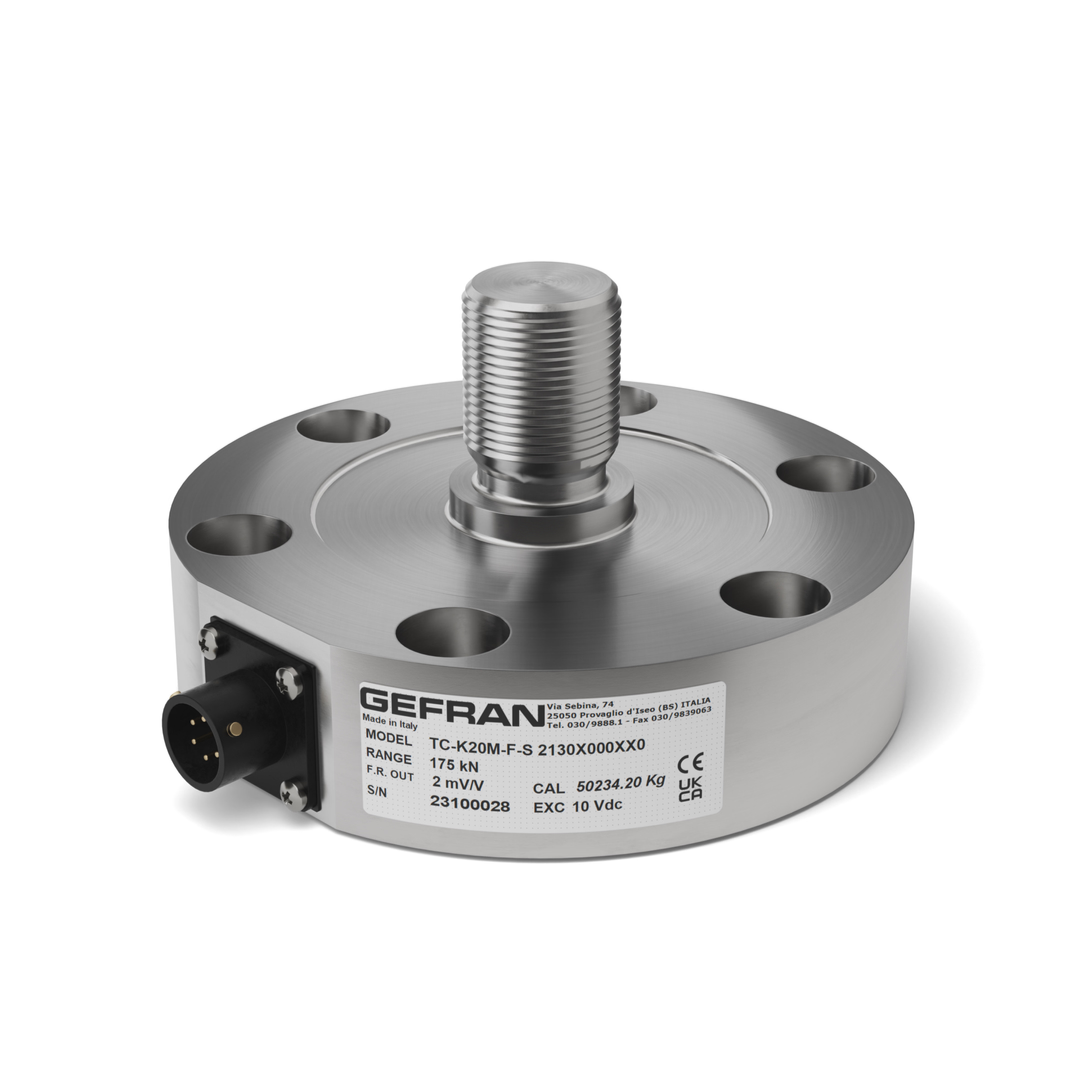

TC series load cells are strain gauge transducers used to measure loads in static and dynamic applications, in tension and compression, with high accuracy (industrial weighing, laboratory testing, automation, etc).

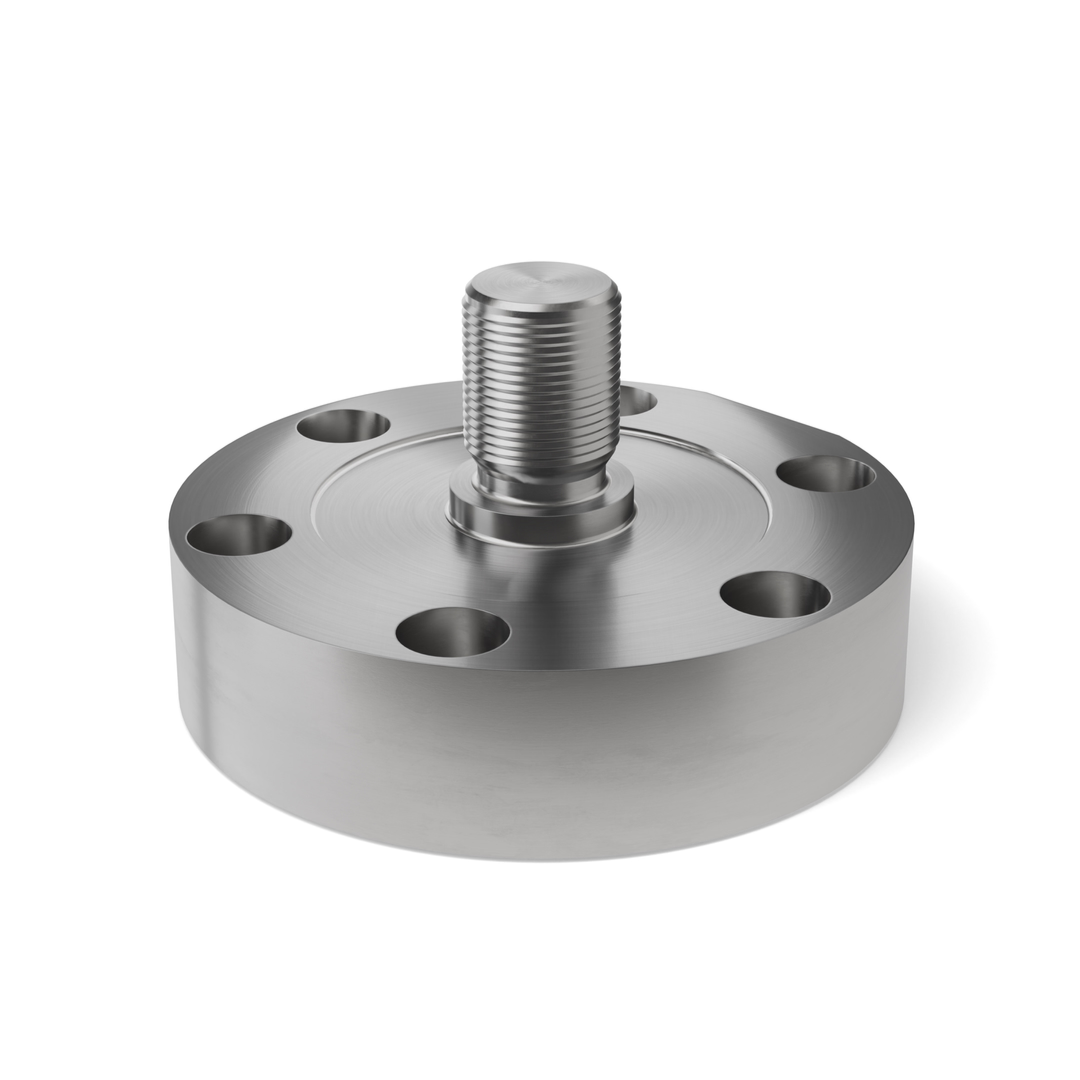

The TC series is machined from a single block of metal, so the primary sensing element, the mountings and the case contain no welds allowing smaller dimensions and an enhanced grade of protection.
The configuration of the point of measurement, with 8 strain gauges, reduces errors caused by imperfect application of the load.
Typical applications of load cells connected in parallel are: silos, hoppers, large weighing platforms, and with suitable accessories, suspended loads.
The stainless steel construction is suitable for use in aggressive environments in the chemical and petrochemical industries.
Features
- Range of measurement: from100 to 20,000 Kg
- Accuracy class: 0.2%
- All stainless steel construction
