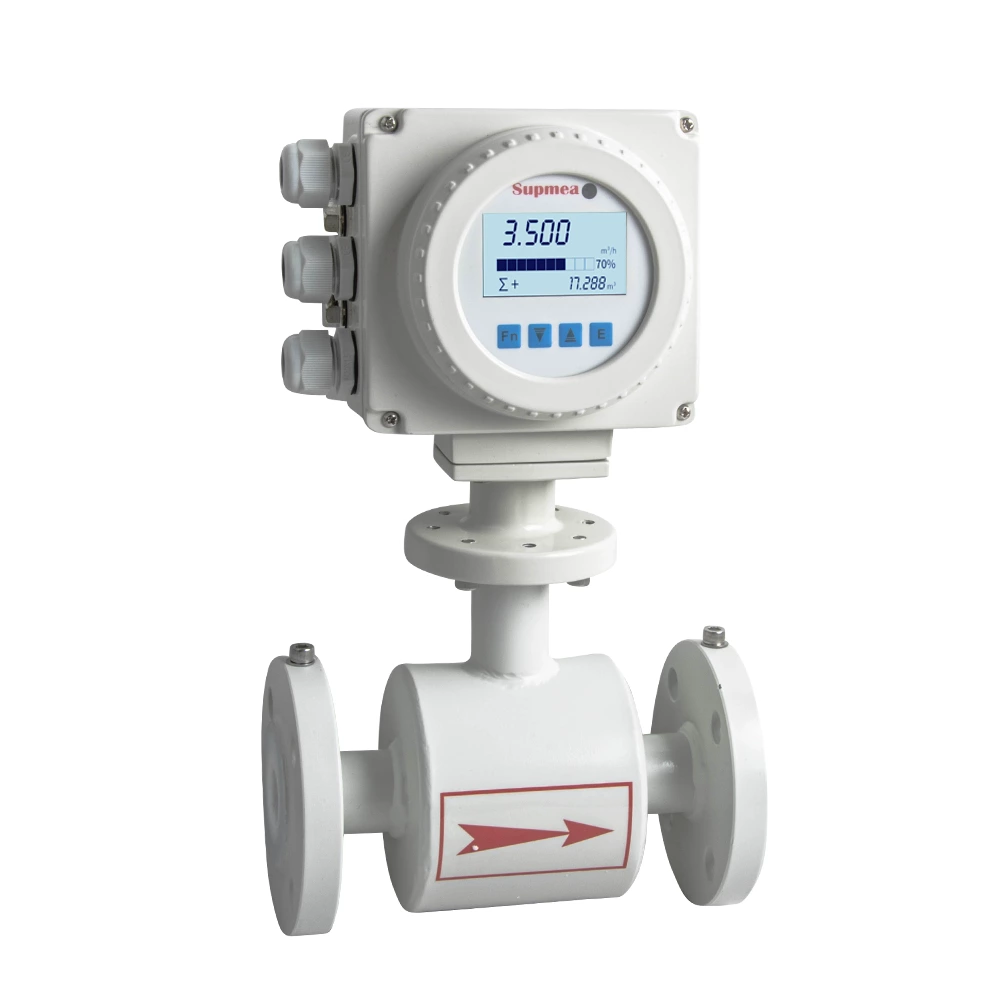

Supmea FMC240 Electromagnetic Flowmeter Measuring Tap Water

FMC240 Electromagnetic meters are a leading choice to deliver the performance and precision your applications require. These meters are applicable for all conductive liquids, such as water, acids, alkalis, slurries and many others. Typical applications are monitoring of liquids, filling, dosing and precise measurement in custody transfer

Enquiry
Add to quote
Part Number: SUP-FMC240 Category:

Overview

 Product  Electromagnetic flowmeter
 Model  FMC240
 Diameter nominal  DN15~DN1000
 Nominal pressure DN15 – DN250, PN ≤1.6MPa
DN300 – DN1000, PN ≤1.0MPa
 Accuracy ±0.5% F.S. (Flow speed > 0.5m/s)； ±0.5% F.S.±2mm/s（Flow speed <0.5m/s）
 Repetitiveness 0.16%
 Liner material Neoprene (CR), Polyurethane (PU), PTFE (F4), PFEP (F46), PFA
 Electrode material 316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
 Medium temperature Neoprene: -10…+70℃ Polyurethane: -10…+60℃ PTFE/FEP: -10…+120℃ PFA: -10…+120℃
 Power supply 220VAC, 24VDC
 Structure type  Compact type, Remote type
 Ingress protection  IP65, IP68(remote type only)
 Product standard  JB/T 9248-2015
