Overview

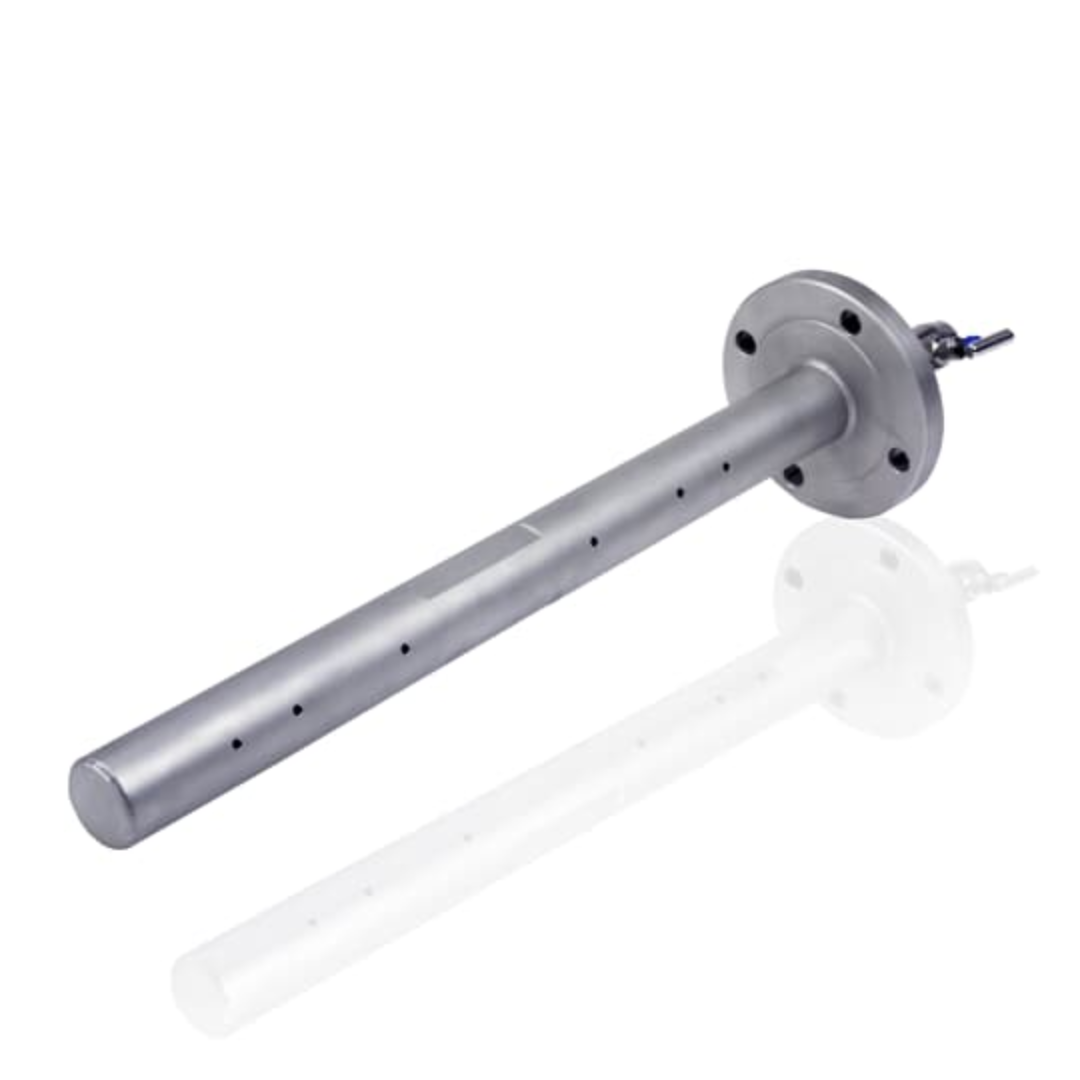

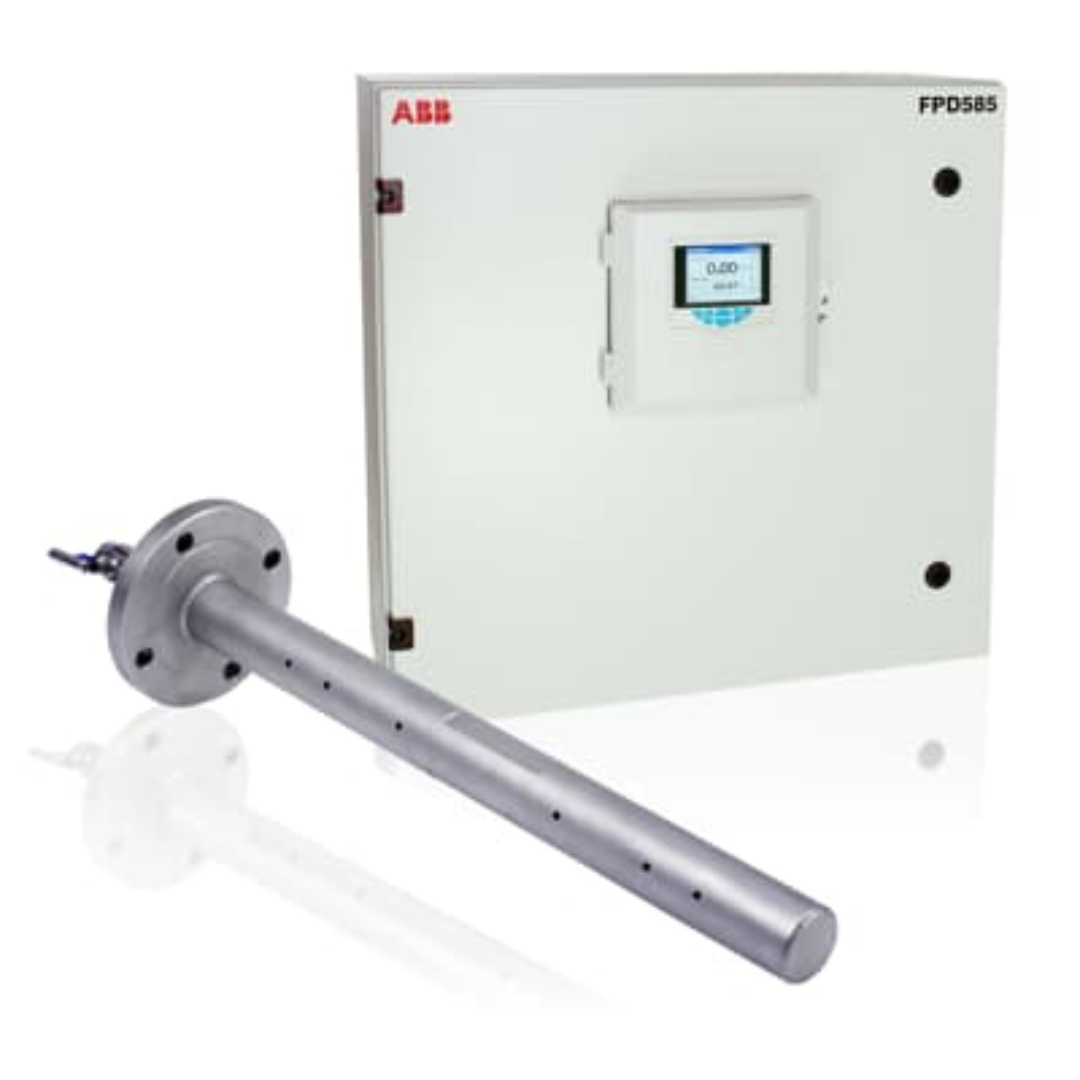

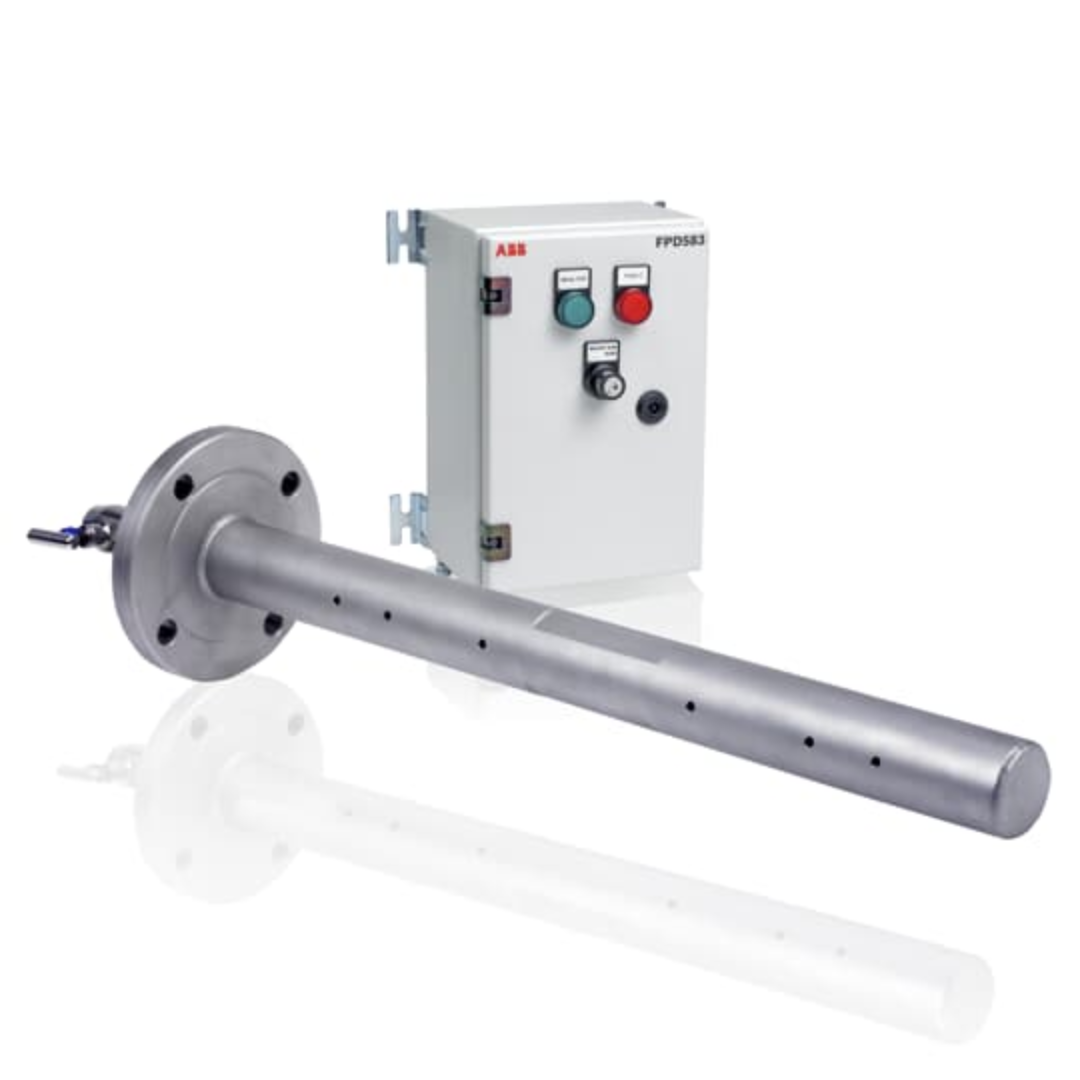

StackFlowMaster is a dedicated stack gas flow measuring system based on the Torbar multi port self-averaging pitot flow meter. In most cases the probe is designed to measure across the complete diameter of the stack, but a partial-insertion option (spanning less than half the stack diameter) is available.
Data
- MCERTS approved
– meets the requirements of EN 14181 & EN 15267-3

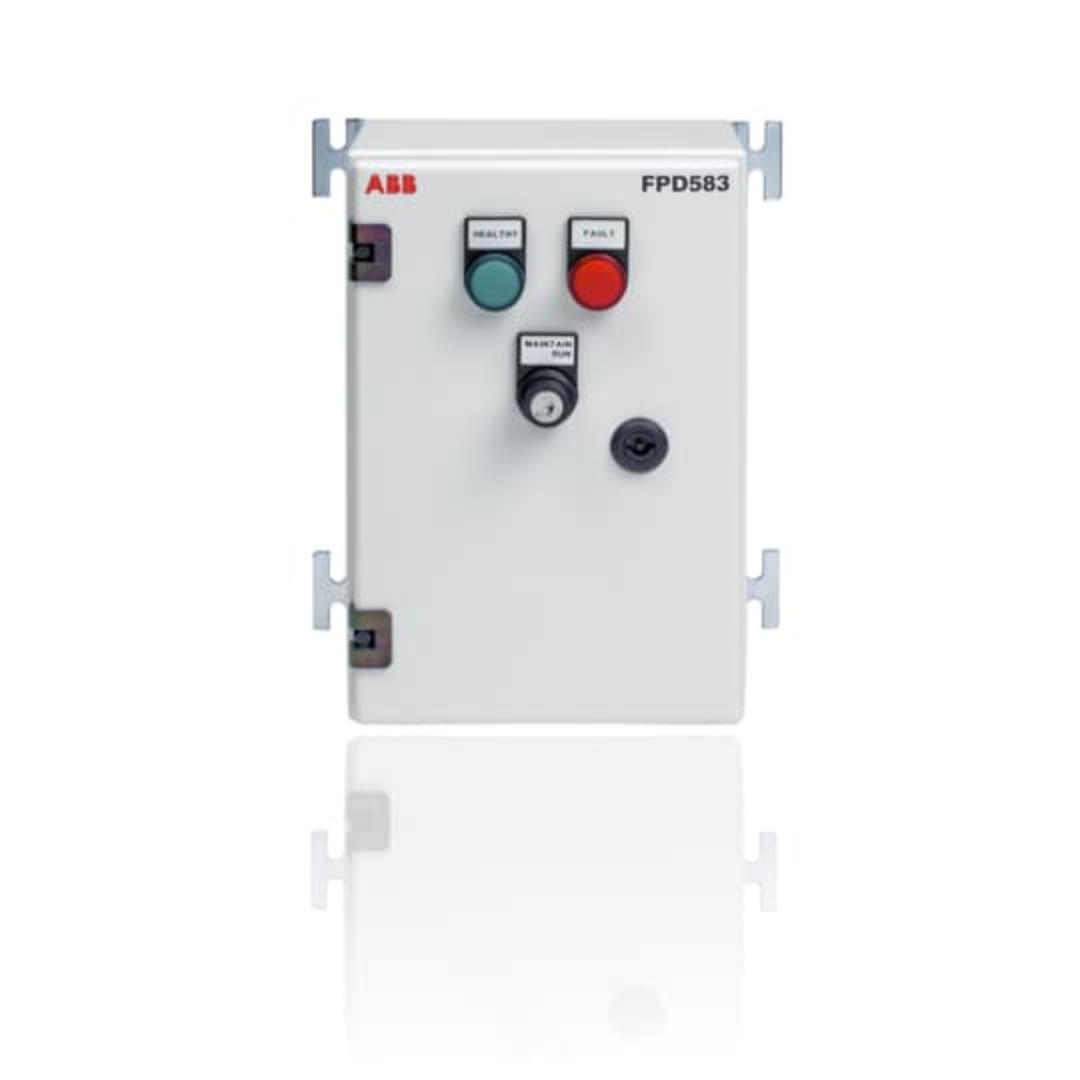

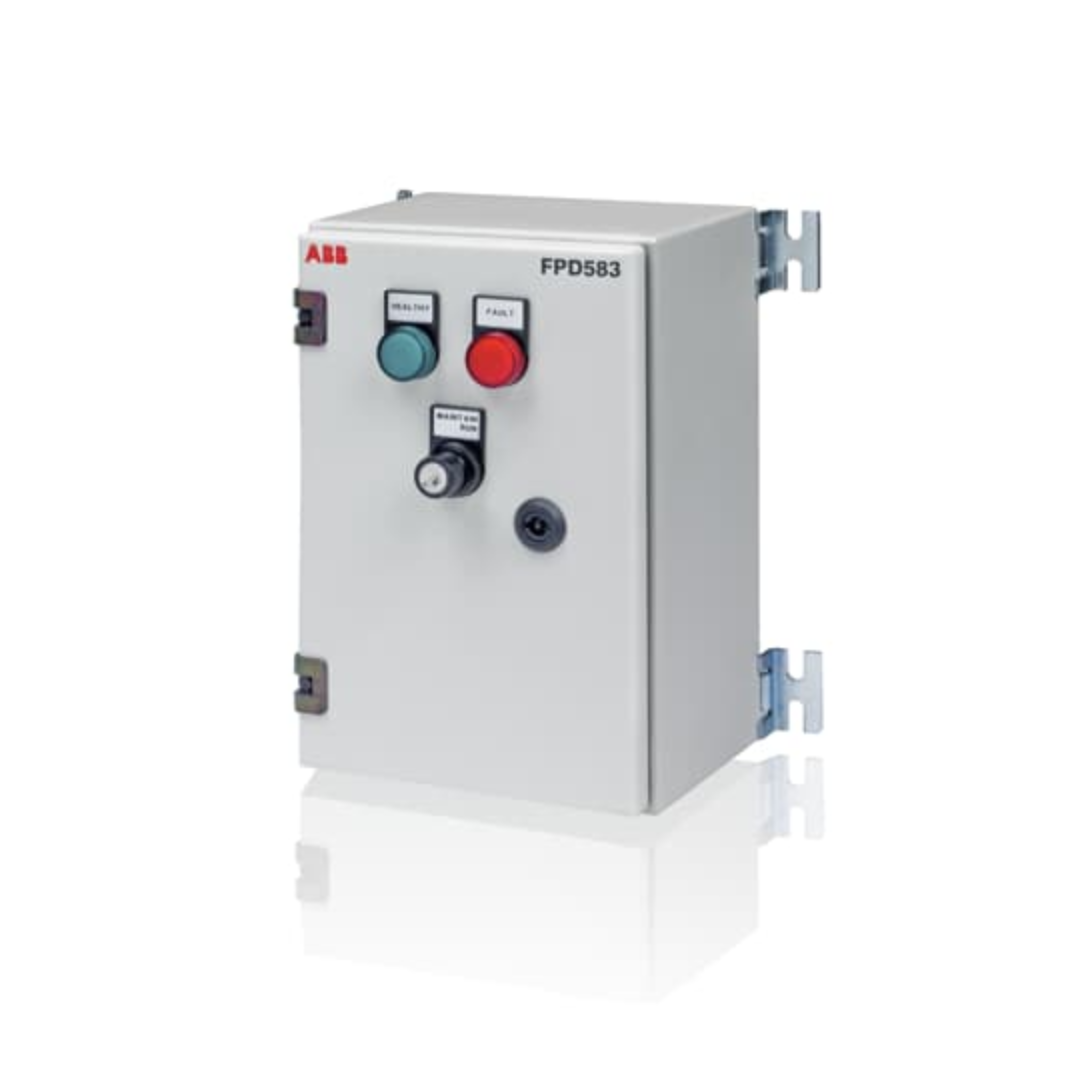

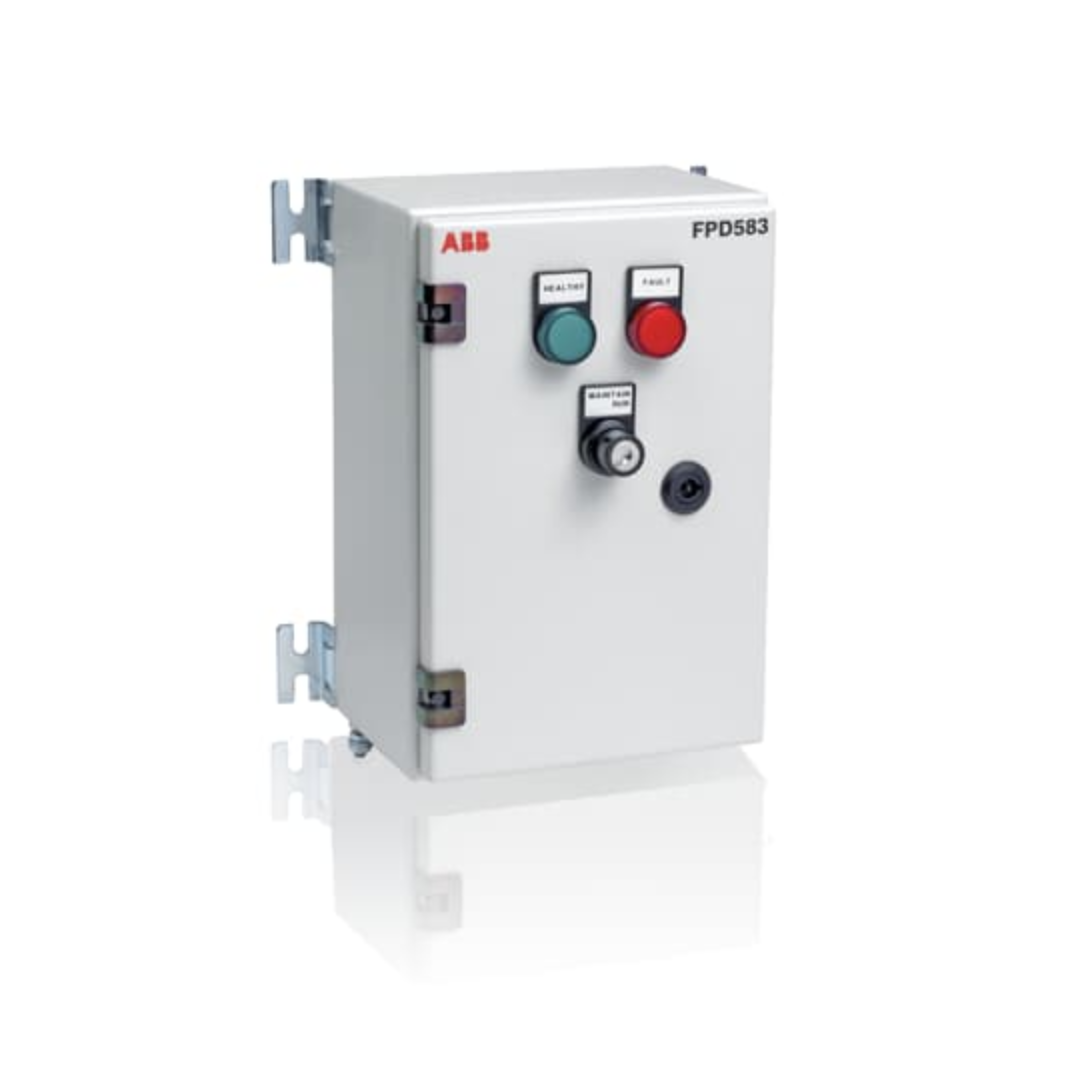

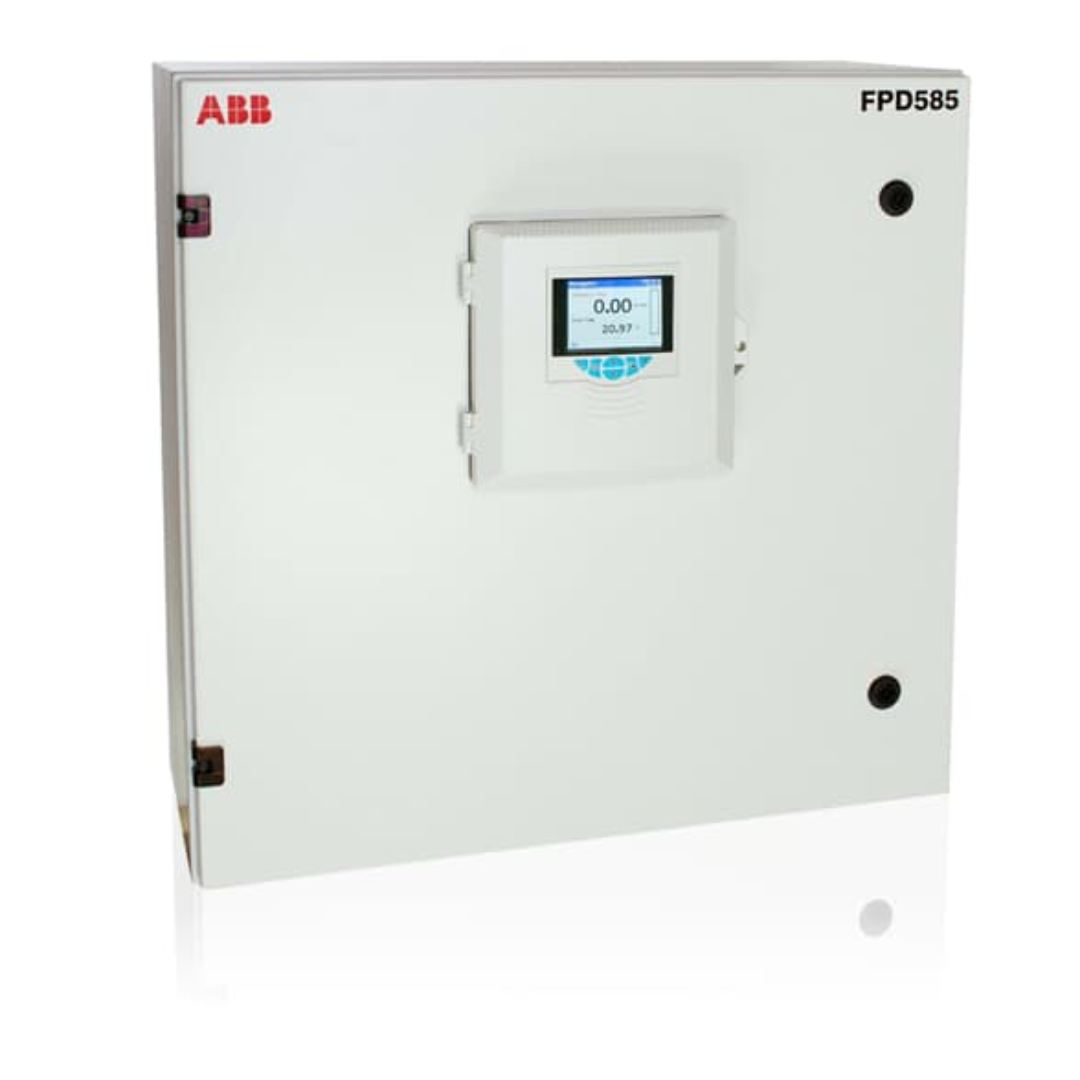

- Manual and automatic versions
– simple system for basic applications
– optional meter purging (for solids contamination)
– manual/automatic zero and span
- Suitable for wide range of stack sizes and temperatures
– for stacks from 1 to 8 metres (3.3 to 26.25 ft.) diameter
– gas temperatures up to 1200 °C (2192 °F) - Optional end supports for larger stacks
– flanged fitting on both sides of the stack
– improves mechanical stability; prevents probe resonance
– optional bayonet lock reduces risk of distortion of the probe - Optional partial-insertion design for larger stacks
– lower cost / weight option for easier handling
– usually requires pre-investigation of stack flow velocity profile
