R-Series V RM5

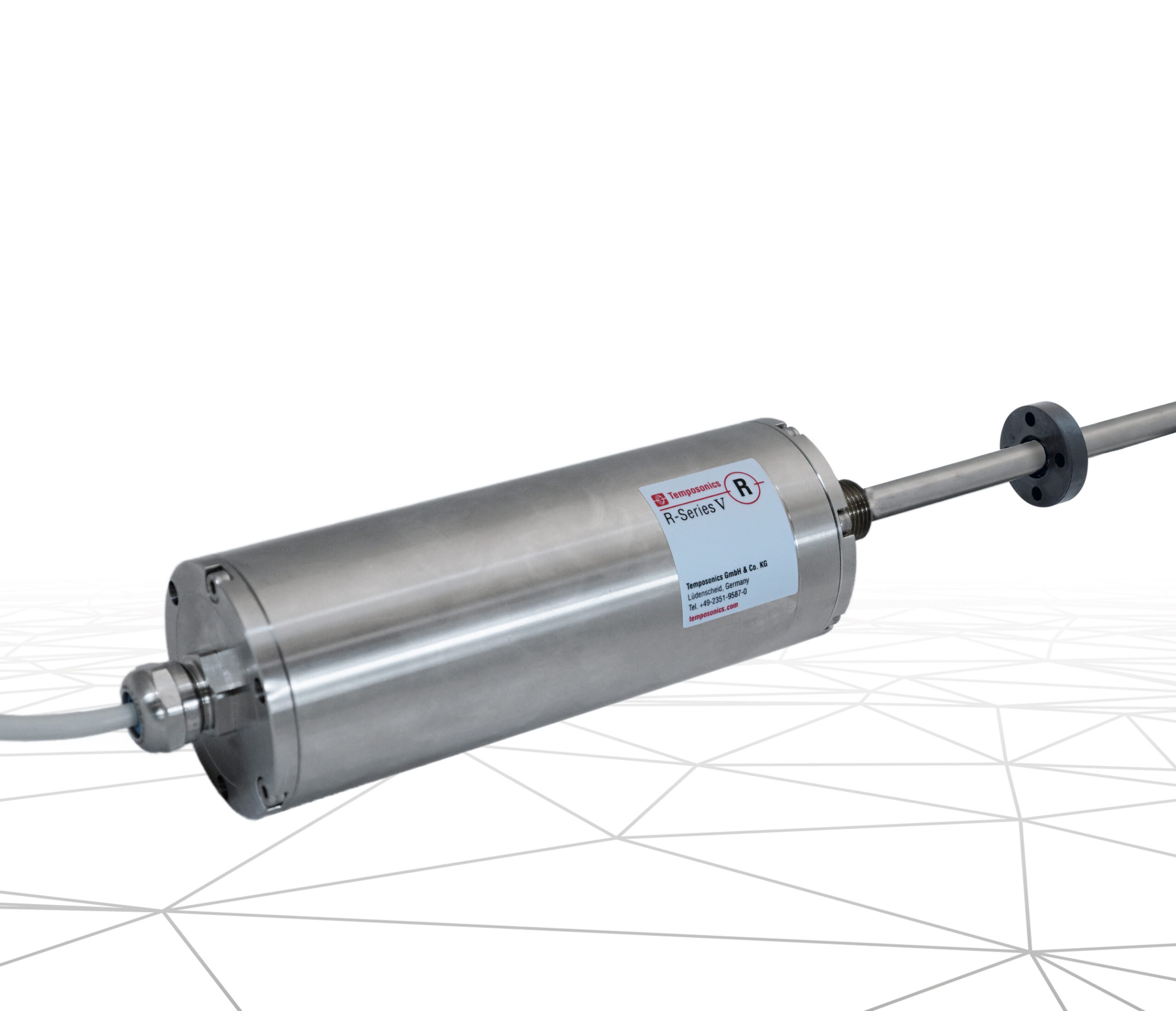

The extremely robust RM5 sensor with super shield housing, ensures long-term linear position measurement in the harshest environments
- Super shield housing with IP68/IP69 against ingress of dust and water
- Improved performance with high accuracy & reliability
- Outputs: Analog, SSI, EtherCAT®, EtherNet/IP™, POWERLINK, PROFINET
- Output of additional status information of the position sensor via the TempoLink® smart assistant or TempoGate® smart assistant
Specifications
| Output | Stroke Length | Resolution | Multi-Position | Status |
|---|---|---|---|---|
| SSI | 25…7615 mm (1…299.8 in.) | 0.1 µm | – | Active |
| Analog | 25…7615 mm (1…299.8 in.) | 16 bit | Up to 2 positions | Active |
| PROFINET | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| POWERLINK | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherCAT® | 25…7615 mm (1…299.8 in.) | 0.5 µm | Up to 30 positions | Active |
| EtherNet/IP™ | 25…7615 mm (1…299.8 in.) | 1 µm | Up to 20 positions | Active |
Documents & Downloads
| SSI | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552119 | A | EN | File |
| Operation Manual | 552011 | E | EN | File |
| 3D Model | ||||
| Analog | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552114 | A | EN | File |
| Operation Manual | 552063 | F | EN | File |
| 3D Model | ||||
| PROFINET | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552118 | A | EN | File |
| Operation Manual | 551973 | G | EN | File |
| GSDML File | for sensors with firmware 2.2.x GSDML file | File | ||
| 3D Model | ||||
| POWERLINK | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552117 | A | EN | File |
| Operation Manual | 552010 | E | EN | File |
| XDD File | File | |||
| 3D Model | ||||
| EtherCAT® | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552115 | A | EN | File |
| Operation Manual | 552059 | D | EN | File |
| ESI File | EN | File | ||
| 3D Model | ||||
| EtherNet/IP™ | Document Part No. | Revision | Language | Download |
|---|---|---|---|---|
| Data Sheet | 552116 | A | EN | File |
| Operation Manual | 551971 | E | EN | File |
| EDS File | V1.7 | File | ||
| 3D Model | ||||
