Main features
- Version for 4, 8, 12, 18 modules
- High-speed parallel bus
- I/O modules can be inserted in any position
Available resources
2D/3D files
– R-BUS Backplane with 04 position for I/O module of system
– R-BUS Backplane with 08 position for I/O module of system
– R-BUS Backplane with 12 position for I/O module of system
– R-BUS Backplane with 18 position for I/O module of system
Datasheet
– R-BUS datasheet
Catalogue
– 4.0 plastic application catalogue
Brochure
– Automation platforms
– Gefran product range brochure
Certifications
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

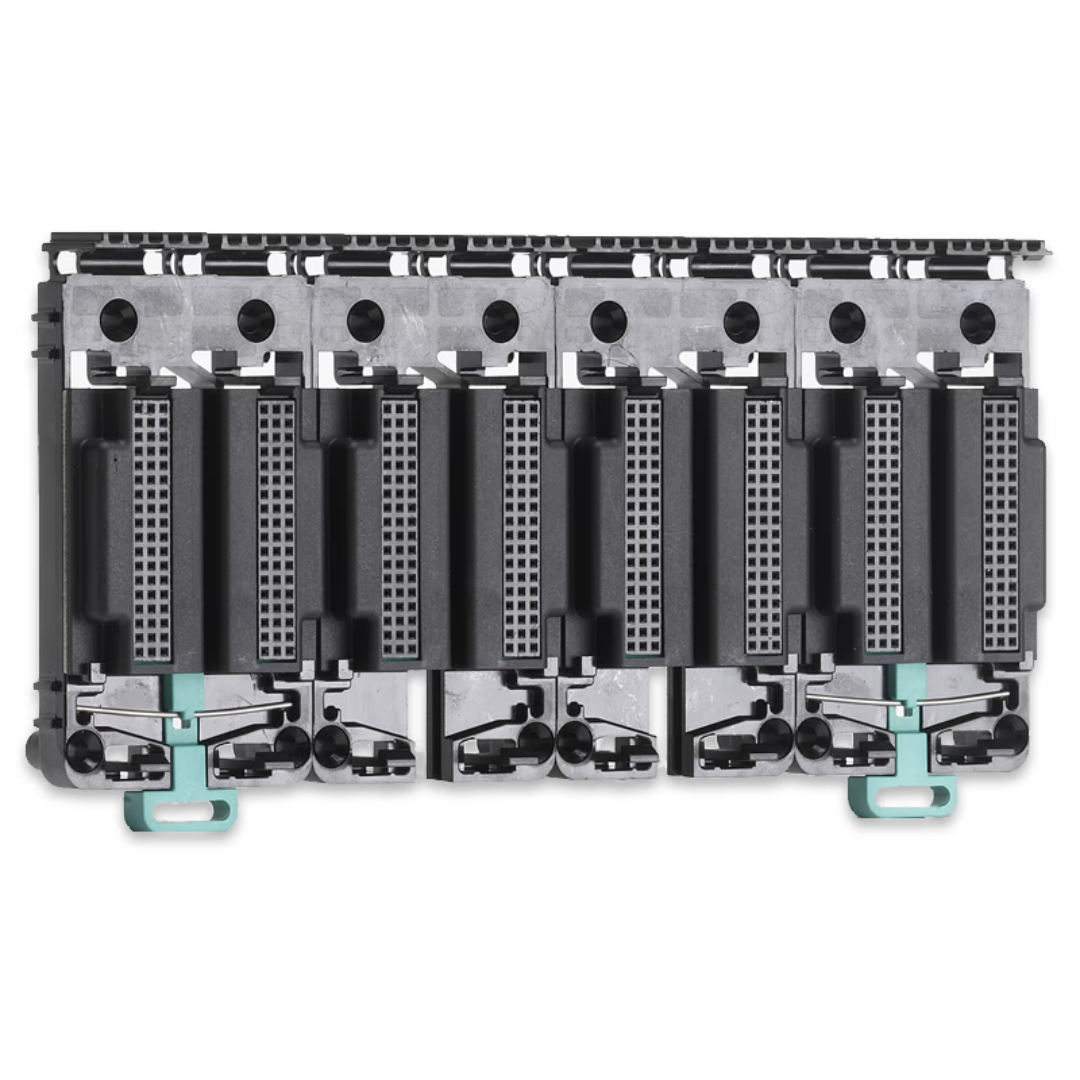

R-BUS(x) are the backplanes of the GILOGIK II system.
They are organized at 16 bit, with geographic addressing and 80 Mbps data transfer band.
They can be installed on a standard 35 mm DIN rod or screwed directly onto the plate.
