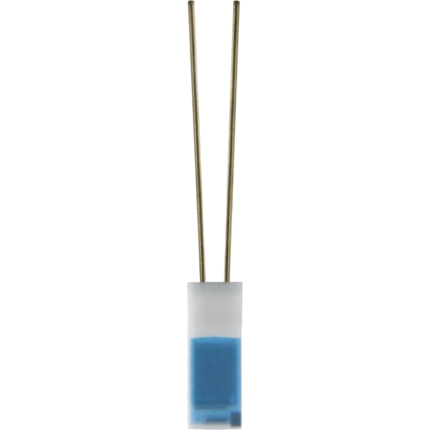

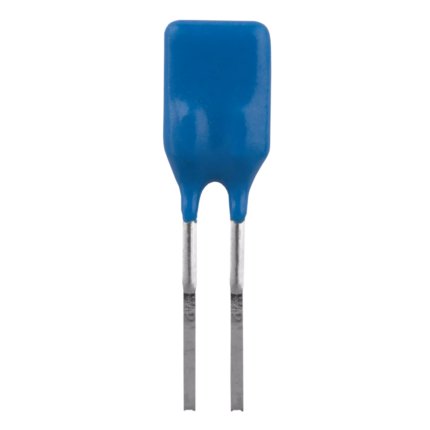

Platinum-chip temperature sensors

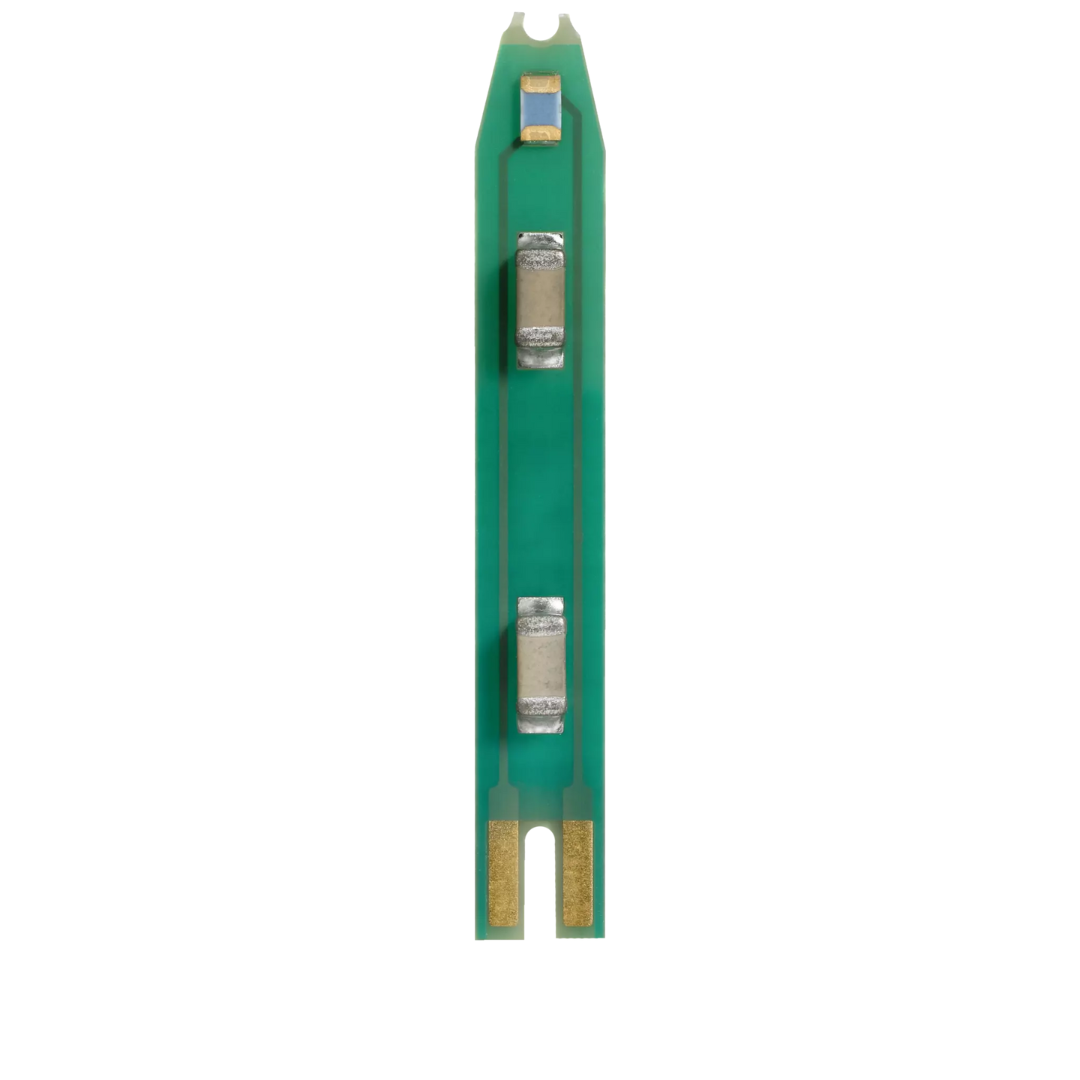

Platinum-chip temperature sensors of the PCSE design type are pre-finished measuring inserts. An equipped platinum SMD temperature sensor, which acquires the temperature as an active component, is located on an epoxy PCB.
Technical data
| General technical data | |
|---|---|
| Standard | DIN EN 60751 |
| Temperature range | -20 to +150 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Features | Not to be used unprotected in humid ambient conditions or in corrosive atmospheres, not to be directly submerged in liquids |
| Connection | Circuit board |
