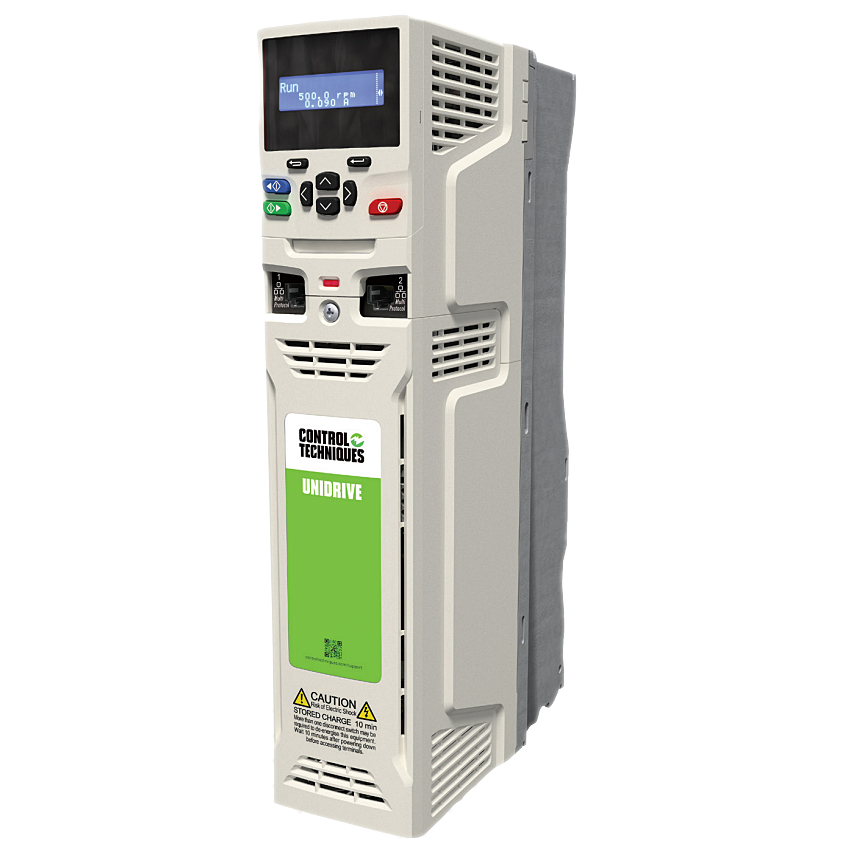

NIDEC Unidrive M700 Universal AC/Servo Drives
High Performance AC/Servo Drives
1.0 – 4,200 HP (0.75 kW – 2.8 MW)
208-240 V | 380-480 V | 575 V | 690 V
Specifications
Features and specifications table
| M700 | M701 | M702 | ||
| Performance | Current loop update: 62 μs | ✓ | ✓ | ✓ |
| Heavy Duty peak rating: 200 % (3 s) | ✓ | ✓ | ✓ | |
| Maximum output frequency: 599 Hz (open loop), 550 Hz (RFC-A & RFC-S) | ✓ | ✓ | ✓ | |
| Switching frequency range: 2, 3, 4, 6, 8, 12, 16 kHz (3 kHz default) | ✓ | ✓ | ✓ | |
| High performance current controllers – | ✓ | ✓ | ✓ | |
| On-board intelligence | Programmable Logic Control (PLC) | ✓ | ✓ | ✓ |
| Real-time tasks | ✓ | ✓ | ✓ | |
| Digital lock control | ✓ | ✓ | ✓ | |
| Advanced Motion Controller – | ✓ | ✓ | ✓ | |
| On-board comms | Ethernet (2 switched ports): EtherNet/IP, Modbus/TCP, RTMoE and PROFINET RT – | ✓ | – | ✓ |
| RS485: Modbus RTU | – | ✓ | – | |
| Mechanical attributes Tile mounting on sizes 3, 4, 5 | ✓ | ✓ | ✓ | |
| Unidrive SP compatible mechanical footprint | ✓ | ✓ | ✓ | |
| Common DC bus connections | ✓ | ✓ | ✓ | |
| Parameter back-up | Ethernet | ✓ | – | ✓ |
| Serial port cloning | ✓ | ✓ | ✓ | |
| SD card (using SD-Card Adaptor) | ✓ | ✓ | ✓ | |
| Smartcard reader support | ✓ | ✓ | ✓ | |
| Electronic motor nameplate parameter storage (HIPERFACE, EnDat 2.2) | ✓ | ✓ | ✓ | |
| Feedback | Encoder and resolver feedback input | 2 | 2 | 2 |
| Simulated encoder output | 1 | 1 | 1 | |
| Optional SI-Encoder/SI-Universal Encoder | ✓ | ✓ | ✓ | |
| On-board I/O | Analogue input | 3 | 3 | – |
| Analogue output | 2 | 2 | – | |
| Digital input | 3 | 3 | 2* | |
| Digital output | – | – | 2 | |
| Bidirectional digital input or output | 3 | 3 | – | |
| Relay output | 1 | 1 | 1 | |
| Machine Safety Single-channel Safe Torque Off (STO) input, certified to SIL3 / PLe | ✓ | ✓ | – | |
| Dual-channel Safe Torque Off (STO) inputs, certified to SIL3 / PLe | – | – | ✓ | |
| Power and motor control | Stationary autotune for permanent magnet motors | ✓ | ✓ | ✓ |
| Mechanical load resonance compensation | ✓ | ✓ | ✓ | |
| Wide operating range back-up DC supply | ✓ | ✓ | ✓ | |
| 24 V control back-up | ✓ | ✓ | ✓ | |
| Other | Temperature controlled fan operation with user adjustable speed limit | ✓ | ✓ | ✓ |
| User replaceable fan(s) | ✓ | ✓ | ✓ | |
| Conformal coating | ✓ | ✓ | ✓ | |
| Standby mode (energy saving) | ✓ | ✓ | ✓ | |
*Terminal 8 on the Unidrive M702, by default, is set as a digital input but can be configured as a motor protection thermistor input
Overload ratings by operating mode
| Operating mode | RFC from cold | RFC from 100 % | Open loop from cold | Open loop from 100 % |
| Normal duty overload with motor rated current = drive rated current | 110 % for 165 s | 110 % for 9 s | 110% for 165 s | 110% for 9 s |
| Heavy duty overload with motor rated current = drive rated current (size 8 and below) | 200 % for 28 s | 200 % for 3 s | 150 % for 60 s | 150% for 7 s |
| Heavy duty overload with motor rated current = drive rated current (size 9A, 9E, 10, 11 and 12) | 170 % for 42 s | 170 % for 5 s | 150 % for 60 s | 150% for 7 s |
| Heavy duty overload with motor rated current = drive rated current (size 12) | 140 % for 60 s | 140 % for 10 s | 140 % for 60 s | 140 % for 10 s |
Ordering guide
| DC Bus Choke/AC Line Choke | ||||
| Frame size | Dimensions H x W x D mm (in) | Weight kg (lb) | Internal | External |
| 3 | 365 x 83 x 200 (14.4 x 3.3 x 7.9) | 4.5 (9.9) | ✓ | – |
| 4 | 365 x 124 x 200 (14.4 x 4.9 x 7.9) | 6.5 (14.3) | ✓ | – |
| 5 | 365 x 143 x 200 (14.4 x 5.6 x 7.6) | 7.4 (16.3) | ✓ | – |
| 6 | 365 x 210 x 227 (14.4 x 8.3 x 8.9) | 14 (30.9) | ✓ | – |
| 7 | 508 x 270 x 280 (20 x 10.6 x 11.0) | 28 (61.7) | ✓ | – |
| 8 | 753 x 310 x 290 (29.7 x 12.2 x 11.4) | 52 (114.6) | ✓ | – |
| 9A | 1049 x 310 x 290 (41.3 x 12.2 x 11.4) | 66.5 (146.6) | ✓ | |
| 9E | 1010 x 310 x 290 (41.3 x 12.2 x 11.4) | 46 (101.4) | – | ✓ |
| 10E | 1010 x 310 x 290 (41.3 x 12.2 x 11.4) | 46 (101.4) | – | ✓ |
| 11E | 1190 x 310 x 312 (46.9 x 12.2 x 12.3) | 63 (138.9) | – | ✓ |
| 12 | 1750 x 295 x 526 (68.9 x 11.6 x 20.7) | 130 (286.6) | – | ✓ |
Unidrive part numbers
200/240 Vac ±10%
| Product Code M600/M700/M701/M702 | Heavy Duty | Normal Duty | |||||
| Supply Phases | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | |
| Mxxx – 03200050A | 3 | 5 | 0.75 | 1 | 6.6 | 1.1 | 1.5 |
| Mxxx – 03200066A | 3 | 6.6 | 1.1 | 1.5 | 8 | 1.5 | 2 |
| Mxxx – 03200080A | 3 | 8 | 1.5 | 2 | 11 | 2.2 | 3 |
| Mxxx – 03200106A | 3 | 10.6 | 2.2 | 3 | 12.7 | 3 | 3 |
| Mxxx – 04200137A | 3 | 13.7 | 3 | 3 | 18 | 4 | 5 |
| Mxxx – 04200185A | 3 | 18.5 | 4 | 5 | 24 | 5.5 | 7.5 |
| Mxxx – 05200250A | 3 | 25 | 5.5 | 7.5 | 30 | 7.5 | 10 |
| Mxxx – 06200330A | 3 | 33 | 7.5 | 10 | 50 | 11 | 15 |
| Mxxx – 06200440A | 3 | 44 | 11 | 15 | 58 | 15 | 20 |
| Mxxx – 07200610A | 3 | 61 | 15 | 20 | 75 | 18.5 | 25 |
| Mxxx – 07200750A | 3 | 75 | 18.5 | 25 | 94 | 22 | 30 |
| Mxxx – 07200830A | 3 | 83 | 22 | 30 | 117 | 30 | 40 |
| Mxxx – 08201160A | 3 | 116 | 30 | 40 | 149 | 37 | 50 |
| Mxxx – 08201320A | 3 | 132 | 37 | 50 | 180 | 45 | 60 |
| Mxxx – 09201760A | 3 | 176 | 45 | 60 | 216 | 55 | 75 |
| Mxxx – 09202190A | 3 | 219 | 55 | 75 | 266 | 75 | 100 |
| Mxxx – 09201760E | 3 | 176 | 45 | 60 | 216 | 55 | 75 |
| Mxxx – 09202190E | 3 | 219 | 55 | 75 | 266 | 75 | 100 |
| Mxxx – 10202830E | 3 | 283 | 75 | 100 | 325 | 90 | 125 |
| Mxxx – 10203000E | 3 | 300 | 90 | 125 | 360 | 110 | 150 |
380/480 VAC +/-10%
| Product Code M600/M700/M701/M702 | Heavy Duty | Normal Duty | |||||
| Supply Phases | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | |
| Mxxx – 03400025A | 3 | 2.5 | 0.75 | 1 | 3.4 | 1.1 | 1.5 |
| Mxxx – 03400031A | 3 | 3.1 | 1.1 | 1.5 | 4.5 | 1.5 | 2 |
| Mxxx – 03400045A | 3 | 4.5 | 1,5 | 2 | 6.2 | 2.2 | 3 |
| Mxxx – 03400062A | 3 | 6.2 | 2.2 | 3 | 7.7 | 3 | 5 |
| Mxxx – 03400078A | 3 | 7.8 | 3 | 5 | 10.4 | 4 | 5 |
| Mxxx – 03400100A | 3 | 10 | 4 | 5 | 12.3 | 5.5 | 7.5 |
| Mxxx – 04400150A | 3 | 15 | 5.5 | 10 | 18.5 | 7.5 | 10 |
| Mxxx – 04400172A | 3 | 17.2 | 7.5 | 10 | 24 | 11 | 15 |
| Mxxx – 05400270A | 3 | 27 | 11 | 20 | 30 | 15 | 20 |
| Mxxx – 05400300A | 3 | 30 | 15 | 20 | 31 | 15 | 20 |
| Mxxx – 06400350A | 3 | 35 | 15 | 25 | 38 | 18.5 | 25 |
| Mxxx – 06400420A | 3 | 42 | 18.5 | 30 | 48 | 22 | 30 |
| Mxxx – 06400470A | 3 | 47 | 22 | 30 | 63 | 30 | 40 |
| Mxxx – 07400660A | 3 | 66 | 30 | 50 | 79 | 37 | 50 |
| Mxxx – 07400770A | 3 | 77 | 37 | 60 | 94 | 45 | 60 |
| Mxxx – 07401000A | 3 | 100 | 45 | 75 | 112 | 55 | 75 |
| Mxxx – 08401340A | 3 | 134 | 55 | 100 | 155 | 75 | 100 |
| Mxxx – 08401570A | 3 | 157 | 75 | 125 | 184 | 90 | 125 |
| Mxxx – 09402000A | 3 | 200 | 90 | 150 | 221 | 110 | 150 |
| Mxxx – 09402240A | 3 | 224 | 110 | 150 | 266 | 132 | 200 |
| Mxxx – 09402000E | 3 | 200 | 90 | 150 | 221 | 110 | 150 |
| Mxxx – 09402240E | 3 | 224 | 110 | 150 | 266 | 132 | 200 |
| Mxxx – 10402700E | 3 | 270 | 132 | 200 | 320 | 160 | 250 |
| Mxxx – 10403200E | 3 | 320* | 160 | 250 | 361 | 200 | 300 |
| Mxxx – 11403770E | 3 | 377 | 185 | 300 | 437 | 225 | 350 |
| Mxxx – 11404170E | 3 | 417* | 200 | 350 | 487* | 250 | 400 |
| Mxxx – 11404640E | 3 | 464* | 250 | 400 | 507* | 280 | 450 |
| Mxxx -12404800T | 3 | 480* | 250 | 400 | 608* | 315 | 500 |
| Mxxx -12405660T | 3 | 566* | 315 | 450 | 660* | 355 | 550 |
| Mxxx -12406600T | 3 | 660* | 355 | 550 | 755* | 400 | 650 |
| Mxxx -12407200T | 3 | 720* | 400 | 600 | 865* | 500 | 700 |
*At 2 kHz switching frequency
500/575 VAC +/-10%
| Product Code M600/M700/M701/M702 | Heavy Duty | Normal Duty | |||||
| Supply Phases | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | |
| Mxxx – 05500030A | 3 | 3 | 1.5 | 2 | 3.9 | 2.2 | 3 |
| Mxxx – 05500040A | 3 | 4 | 2.2 | 3 | 6.1 | 4 | 5 |
| Mxxx – 05500069A | 3 | 6.9 | 4 | 5 | 10 | 5.5 | 7.5 |
| Mxxx – 06500100A | 3 | 10 | 5.5 | 7.5 | 12 | 7.5 | 10 |
| Mxxx – 06500150A | 3 | 15 | 7.5 | 10 | 17 | 11 | 15 |
| Mxxx – 06500190A | 3 | 19 | 11 | 15 | 22 | 15 | 20 |
| Mxxx – 06500230A | 3 | 23 | 15 | 20 | 27 | 18.5 | 25 |
| Mxxx – 06500290A | 3 | 29 | 18.5 | 25 | 34 | 22 | 30 |
| Mxxx – 06500350A | 3 | 35 | 22 | 30 | 43 | 30 | 40 |
| Mxxx – 07500440A | 3 | 44 | 30 | 40 | 53 | 45 | 50 |
| Mxxx – 07500550A | 3 | 55 | 37 | 50 | 73 | 55 | 60 |
| Mxxx – 08500630A | 3 | 63 | 45 | 60 | 86 | 75 | 75 |
| Mxxx – 08500860A | 3 | 86 | 55 | 75 | 108 | 90 | 100 |
| Mxxx – 09501040A | 3 | 104 | 77 | 100 | 125 | 110 | 125 |
| Mxxx – 09501310A | 3 | 131 | 90 | 125 | 150 | 110 | 150 |
| Mxxx – 09501040E | 3 | 104 | 75 | 100 | 125 | 110 | 125 |
| Mxxx – 09501310E | 3 | 131 | 90 | 125 | 150 | 110 | 150 |
| Mxxx – 10501520E | 3 | 152 | 110 | 150 | 200 | 130 | 200 |
| Mxxx – 10501900E | 3 | 190 | 132 | 200 | 200 | 150 | 200 |
| Mxxx – 11502000E | 3 | 200 | 150 | 200 | 248 | 185 | 250 |
| Mxxx – 11502540E | 3 | 254* | 185 | 250 | 288* | 225 | 300 |
| Mxxx – 11502850E | 3 | 285* | 225 | 300 | 315* | 250 | 350 |
*At 2 kHz switching frequency
690 VAC +/-10%
| Product Code M600/M700/M701/M702 | Heavy Duty | Normal Duty | |||||
| Supply Phases | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | Max Cont. Current (A) | Motor Power (kW) | Motor Power (HP) | |
| Mxxx – 07600190A | 3 | 19 | 15 | 20 | 23 | 18.5 | 25 |
| Mxxx – 07600240A | 3 | 24 | 18.5 | 25 | 30 | 22 | 30 |
| Mxxx – 07600290A | 3 | 29 | 22 | 30 | 36 | 30 | 40 |
| Mxxx – 07600380A | 3 | 38 | 30 | 40 | 46 | 37 | 50 |
| Mxxx – 07600440A | 3 | 44 | 37 | 50 | 52 | 45 | 60 |
| Mxxx – 07600540A | 3 | 54 | 45 | 60 | 73 | 55 | 75 |
| Mxxx – 08600630A | 3 | 63 | 55 | 75 | 86 | 75 | 100 |
| Mxxx – 08600860A | 3 | 86 | 75 | 100 | 108 | 90 | 125 |
| Mxxx – 09601040A | 3 | 104 | 90 | 125 | 125 | 110 | 150 |
| Mxxx – 09601310A | 3 | 131 | 110 | 150 | 150 | 132 | 175 |
| Mxxx – 09601040E | 3 | 104 | 90 | 125 | 125 | 110 | 150 |
| Mxxx – 09601310E | 3 | 131 | 110 | 150 | 155 | 132 | 175 |
| Mxxx – 10601500E | 3 | 150 | 132 | 175 | 172 | 160 | 200 |
| Mxxx – 10601780E | 3 | 178 | 160 | 200 | 197 | 185 | 250 |
| Mxxx – 11602100E | 3 | 210 | 185 | 250 | 225 | 200 | 250 |
| Mxxx – 11602380E | 3 | 238* | 200 | 250 | 275* | 250 | 300 |
*At 2 kHz switching frequency
