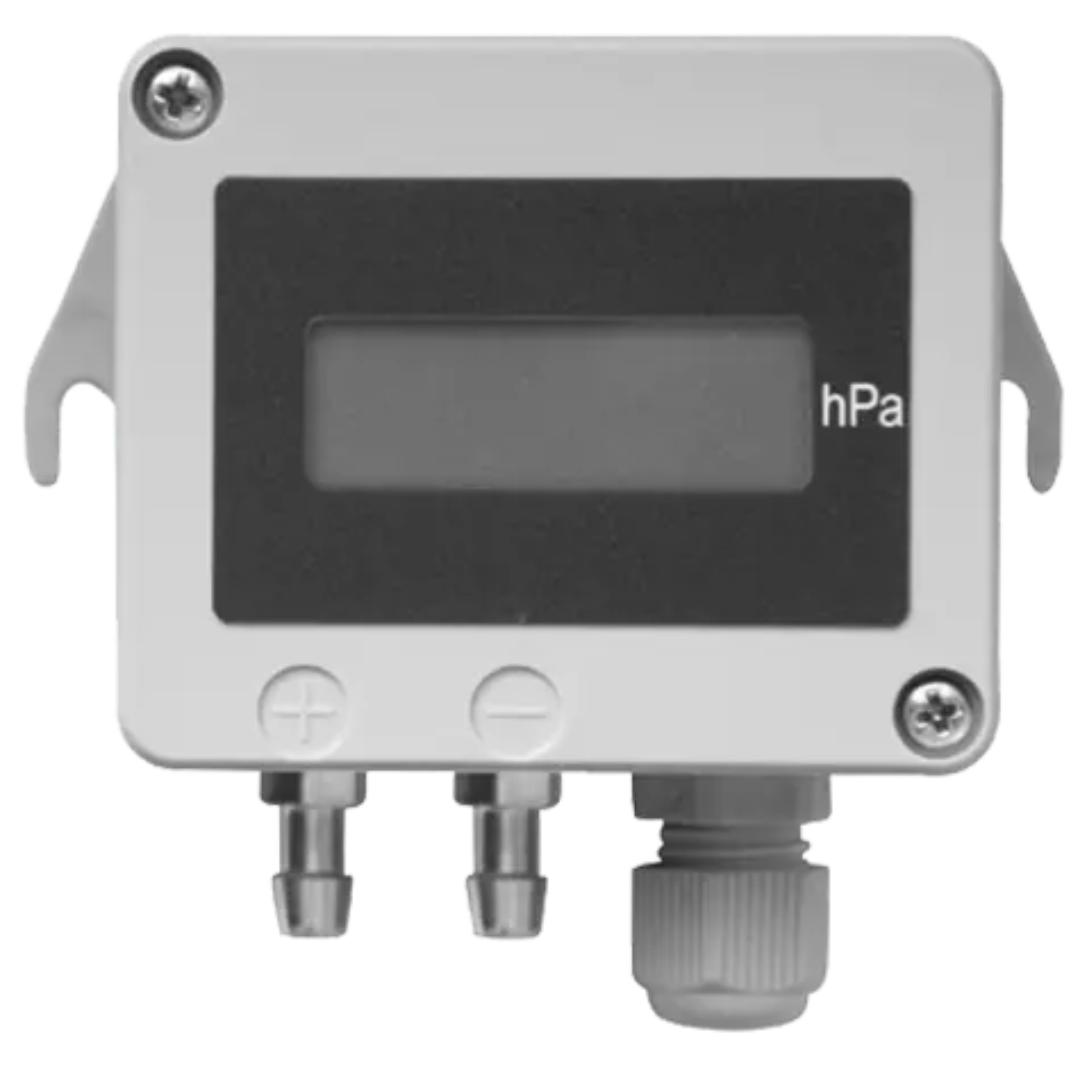

Multirange pressure and differential pressure transmitter
The product enables differential pressure measurement in non-aggressive gases. Permanent overpressure protects the process from dust penetration. The transmitter is mainly used in cleanrooms.
Technical data
| General technical data | |
|---|---|
| Process connection | Tube connection |
| Accuracy (linearity) | 2 % |
| Input | 2.5 to 100 mbar DP, rel. |
| Output | (0)4 to 20 mA three-wire; DC 0 to 10 V three-wire |
| Medium temperature | 10 to 50 °C |
| Special features | Measuring range adjustable; with LCD display as an optional extra |
