Main features
- Pressure ranges from: 0-17 to 0-2000 bar / 0-250 to 0-30000 psi
- Strain gage Wheatstone bridge
- Accuracy : <±0.25% FS (H); <±0.5% FS (M)
Available resources
2D/3D Files
– ccae24c3-f5fb-403a-b062-cd77c425926d_M31.zip
Documentation – Previous Versions
– Data Sheet
Datasheet
– M3 Datasheet
Brochure
– Melt pressure sensors
– Gefran product range brochure
User Manual
– Manual of electrical installation for pressure probes
– Pressure Sensors for high temperature – User Manual
Technical Articles
– Kunstoffemagazine 12/2010: Schmelzedruckmessung mit neuem Impuls
Catalogue
– 4.0 plastic application catalogue
Informativa RoHS
– RoHS informative note
Certifications
– UK Conformity declaration – not amplified M series FS over 500bar
– Conformity declaration EU – not amplified M series FS over 500bar
– GTP+ FDA Certificate
Technical specifications
Overview

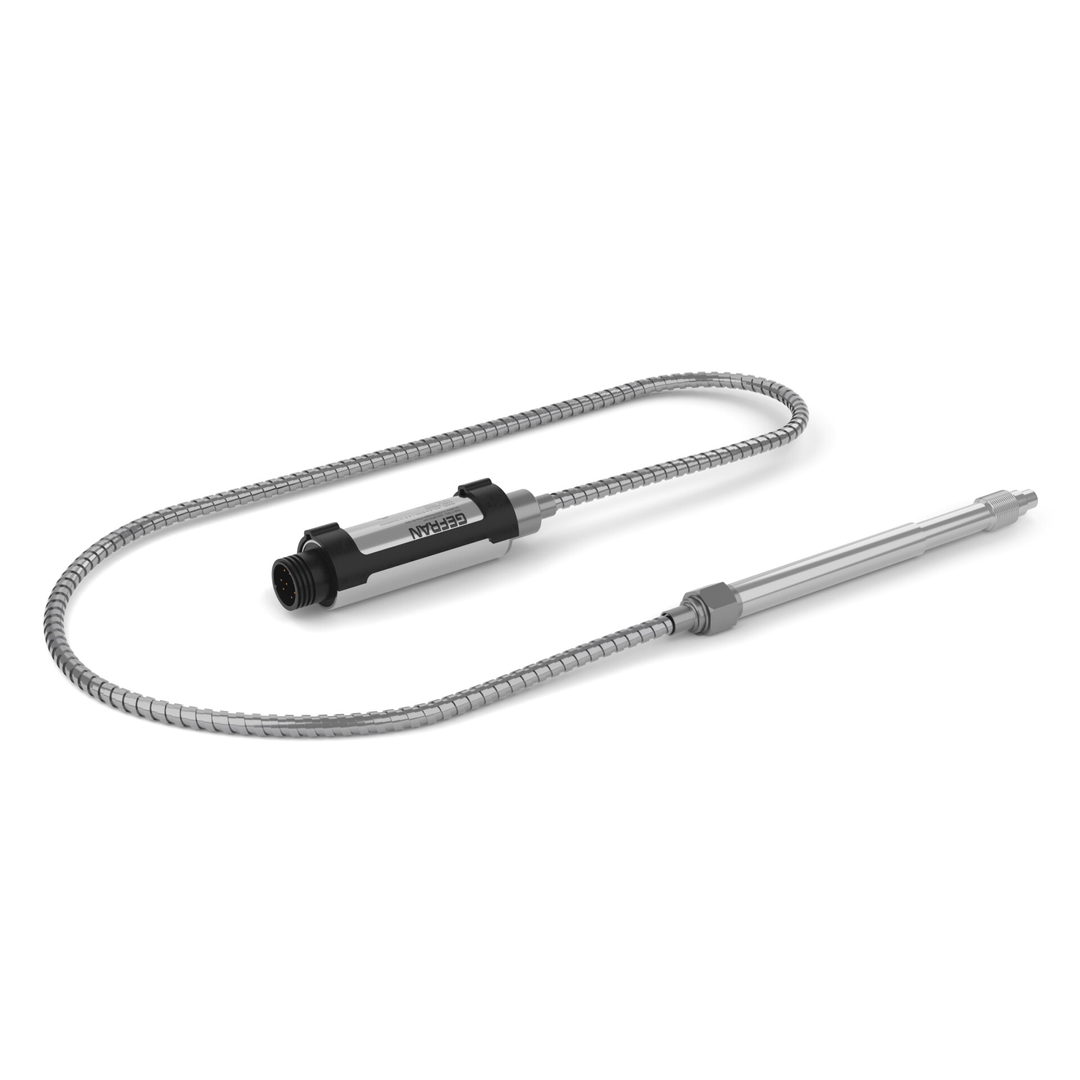

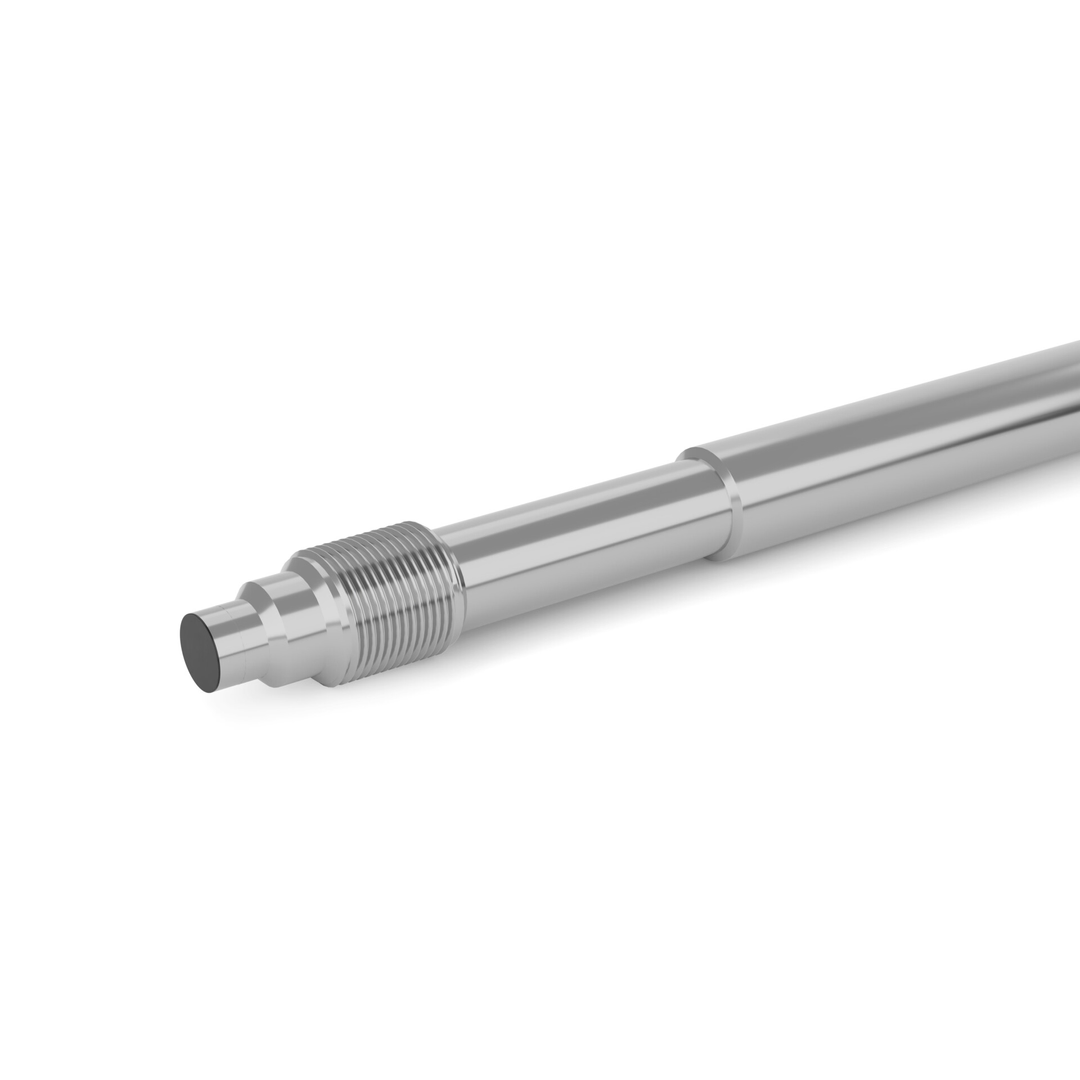

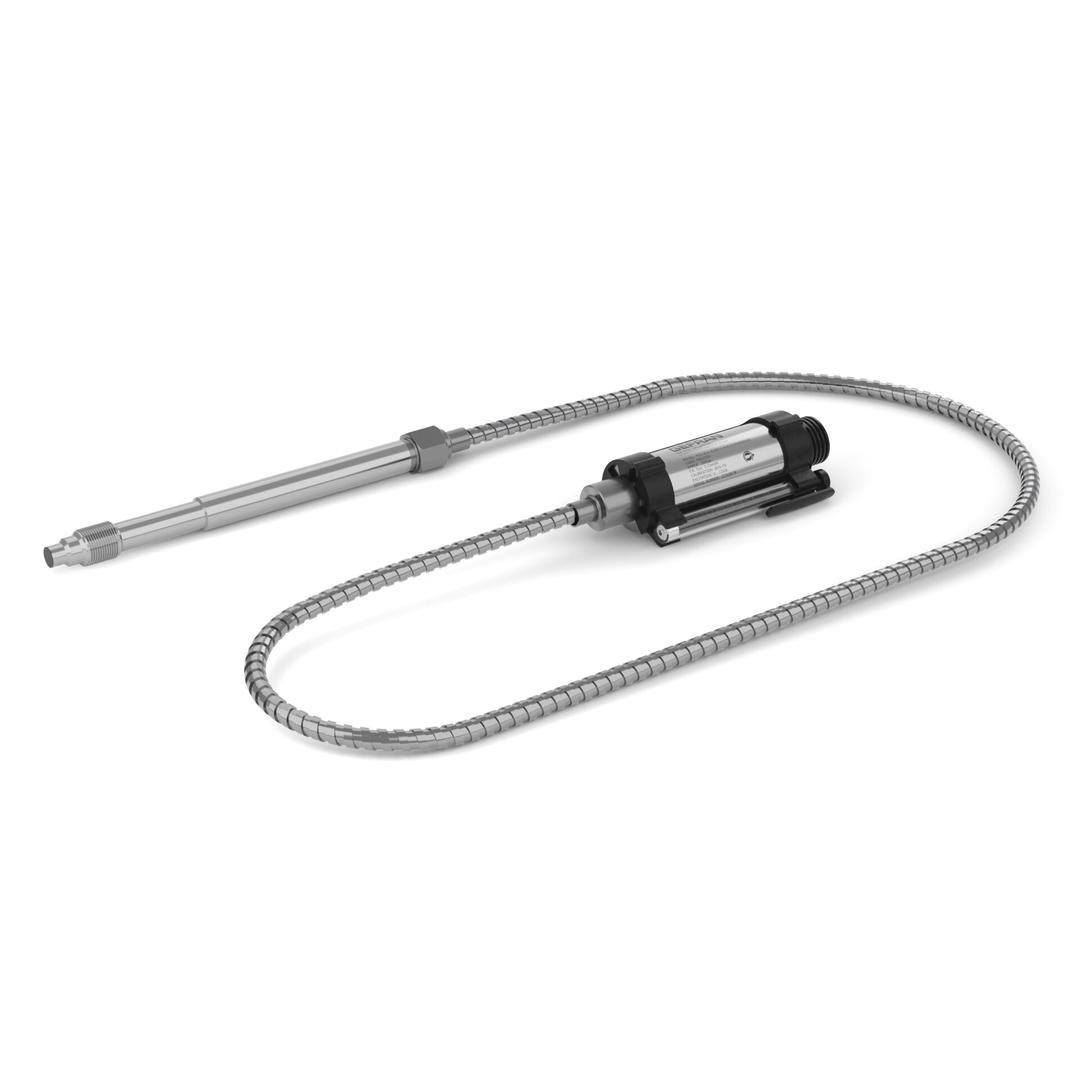

The M3 series of Gefran are pressure transmitters for using in High temperature environment and specifically designed for melt pressure measurement and available only to be used in large-scale fixed installations or in large-scale stationary industrial tools, typically extruders, or for laboratory B2B equipments for R&D purposes according to the European Directive 2011/65/EU.
The main characteristic of this series is the capability to read temperature of the media up to 400°C.
The constructive principle is based on the hydraulic trasmission of the pressure. The fluid-filled system assures the temperature stability.
The phisical measure is transformed in a electrical measure by means the strain-gauge technology.
