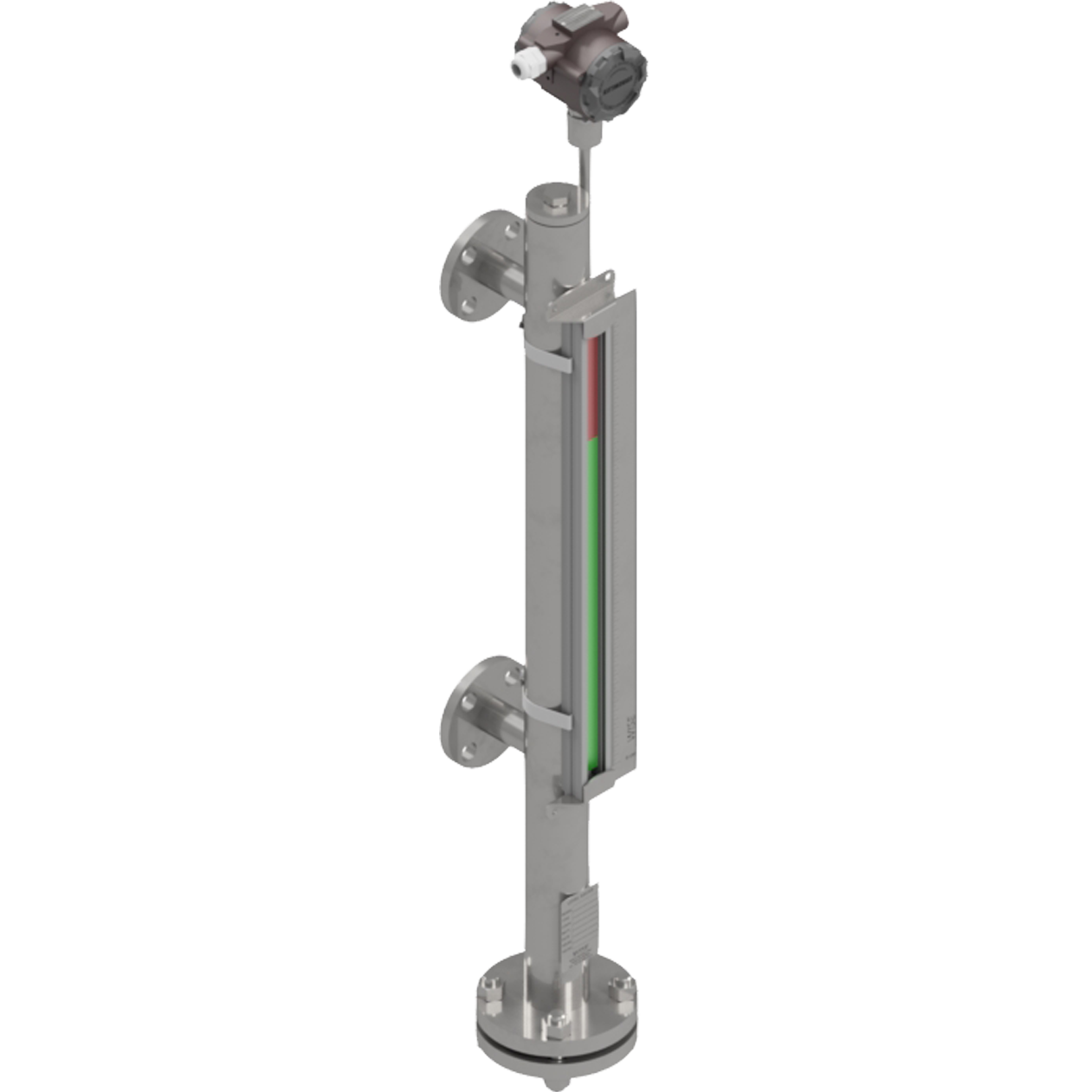

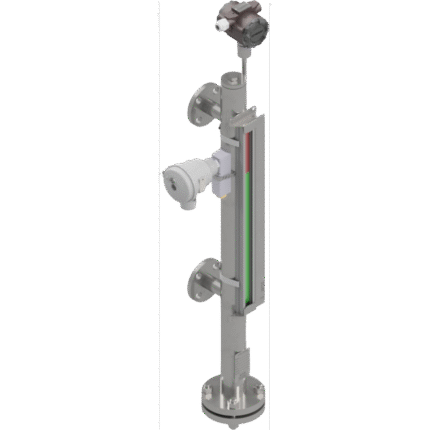

L300 SMT4000 Series_Magnetic Float type level gauge with level transmitter
Service intended
The SMT4000 series is a Magnetic float type level transmitter, which uses buoyancy to continuosly measure the water level inside the vessel.
When a float designed/manufactured for the specific gravity of fluid moves up and down due to buoyancy, the Reed switch attached to the sensor detects magnetic in the float and changes its resistance value. You can measure the water level inside the vessel with the converted current value.
Standard features
| Part List | SMT4100 (General) | SMT4200 (High Temp.) |
| Encolsure type | Ex-proof – KCs, Ex d IIC T6 – IP66 @ Max. 80 ºC Weather proof (IP66) | Ex-proof – KCs, Ex d IIC T6 – IP66 @ Max. 150 ºC Weather proof (IP66) |
| Ambient Temp. | -25 ~ 65 ºC | |
| Max. Temperature | Max. 80 ºC | Max. 150 ºC (With Cooling Fin) |
| Max. Pressure | 20 kgf/cm² | |
| Material | Housing : A.D.C 12 Float : 316L SS Wetted parts : 304SS, 304L SS, 316SS, 316L SS, Etc. | |
| Applicable Specific Gravity | 0.8 ~ 1.4 (For Mounting size 1″) 0.6 ~ 1.1 (For Mounting size 2″) 0.7 ~ 1.4 (For Mounting size 3″ & 4″) | |
| Resolution | For Mounting size 1″ : 5 mm For Mounting size 2″ to 4″ : 10 mm | |
| Power supply | DC 24V (DC 17~36 V) | |
| Out Put | DC 4~20 mA (2-Wire) DC 3.6 ~ 21 mA @ NAMUR NE43 | |
| Cable Entry | M20 X 1.5P Etc. | |
| Max. Length | 2000 mm (For 1″ Float) 3500 mm (For 2″ Float) 5000 mm (For 3″ and 4″ Float) | |
