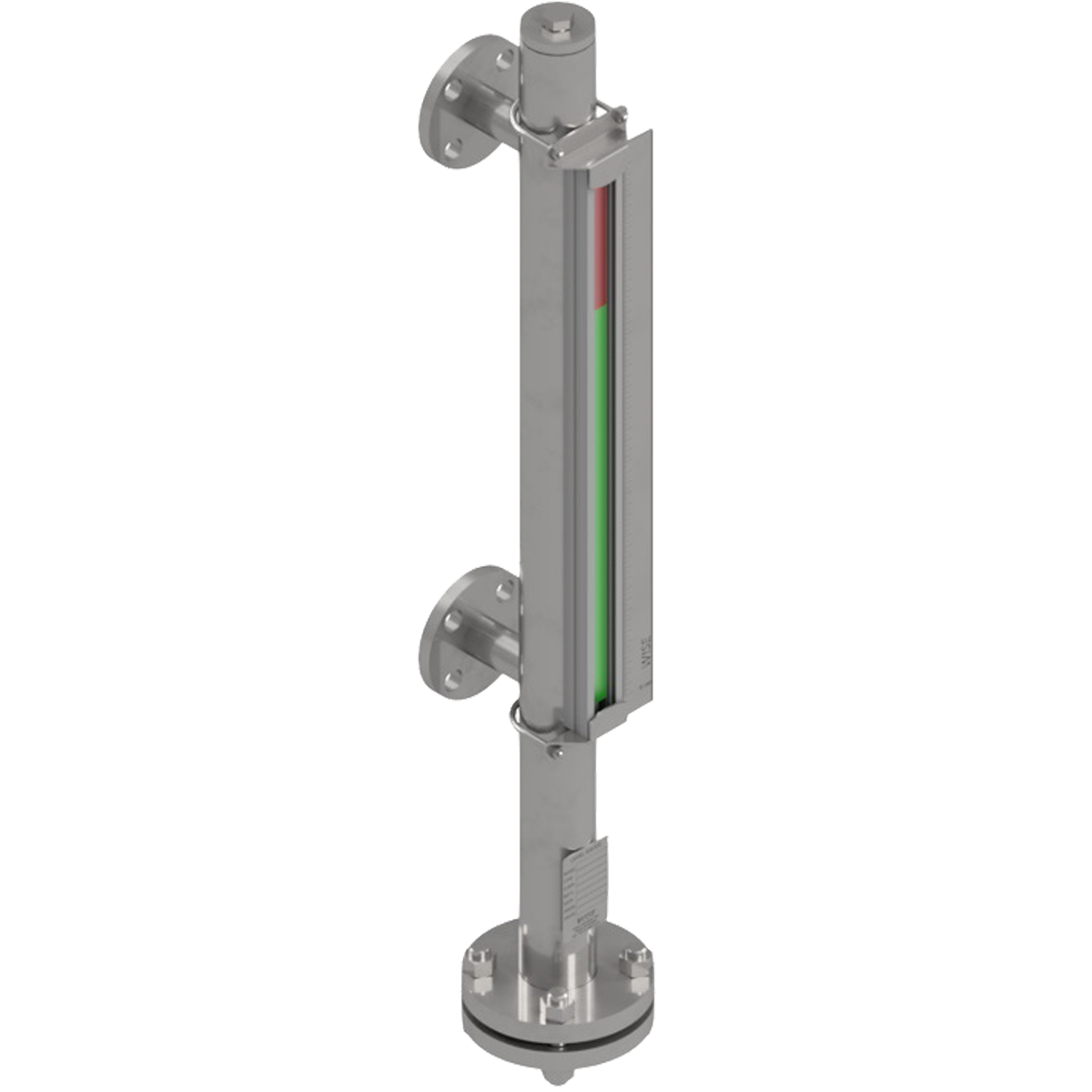

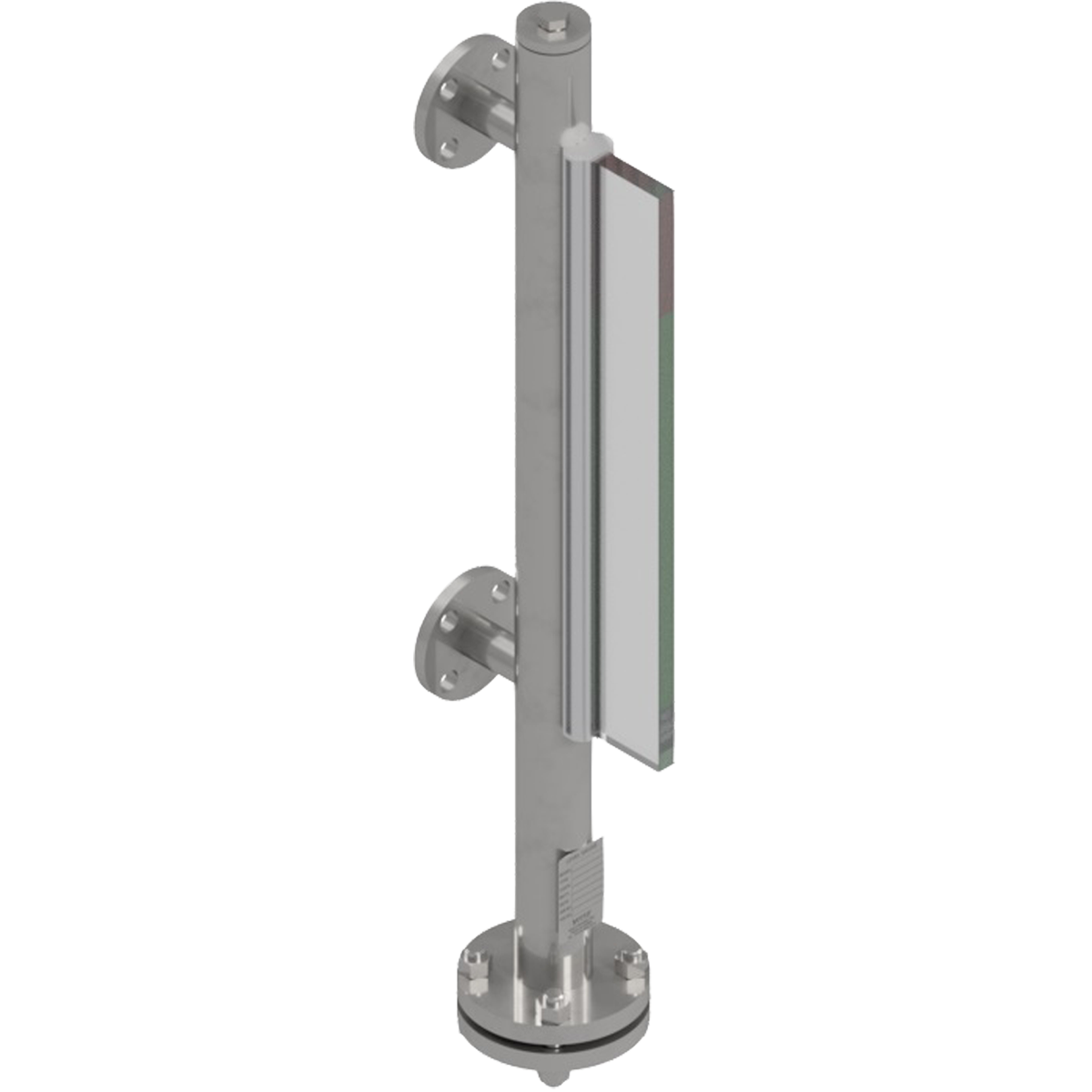

L300 Series_Magnetic float type level gauge
L300
Standard Specification
L300 (Chamber size-50A)
| Chamber size | 2″ (50A) |
| Flange rating | 150 ~ 900Lb |
| Material | 304SS, 316SS, 316L SS, CPVC, etc. |
| Indicator method | Magnetic |
| Max. pressure | 8 MPa |
| Max. temperature | 350 °C |
| Specific gravity | Min. 0.7 |
| Viscosity | Max. 50 CP |
L300 (Chamber size-65A)
| Chamber size | 2½” (65A) |
| Flange rating | 150 ~ 900Lb |
| Material | 304SS, 316SS, 316L SS, CPVC, etc. |
| Indicator method | Magnetic |
| Max. pressure | 8 MPa |
| Max. temperature | 350 °C |
| Specific gravity | Min. 0.5 |
| Viscosity | Max. 50 CP |
