Main features
- Digital output signal with DP404 CAN OPEN communication protocol
- Transmission frequency (Baud rate): 10 Kbaud to 1 Mbaud (default 500 Kbaud)
- Software / Hardware selection of Baud rate and ID nodes
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Datasheet
– KD Datasheet
User Manual
– Manual of electrical installation for pressure probes
– Pressure Sensors for high temperature – User Manual
– Can Open DP404 Digital Output (Operating Handbook)
Technical Articles
– Kunstoffemagazine 12/2010: Schmelzedruckmessung mit neuem Impuls
Fieldbus Configuration Files
– EDS (MD, WD, KD CanOpen)
Catalogue
– 4.0 plastic application catalogue
Certifications
– GTP+ FDA Certificate
Technical specifications
Overview

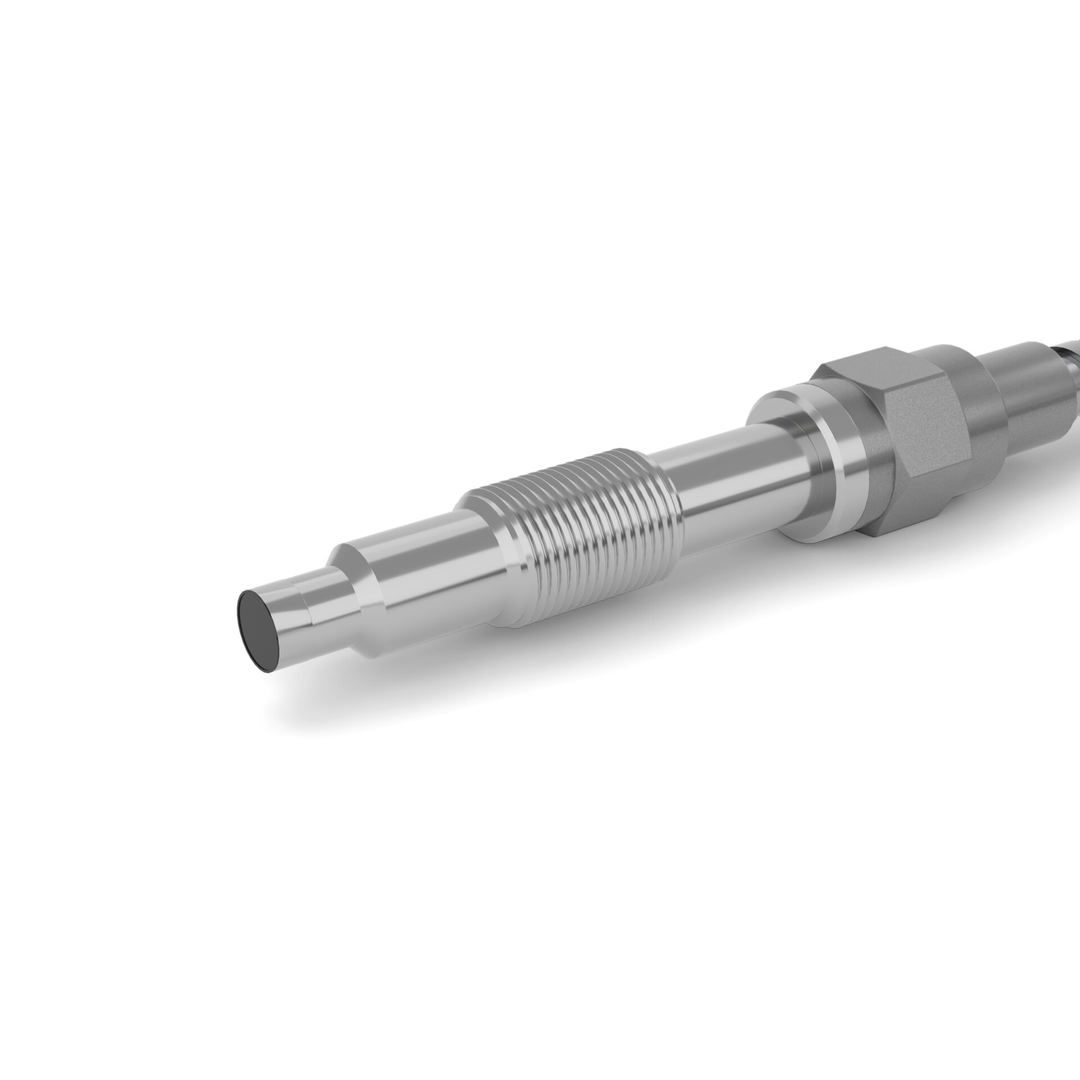

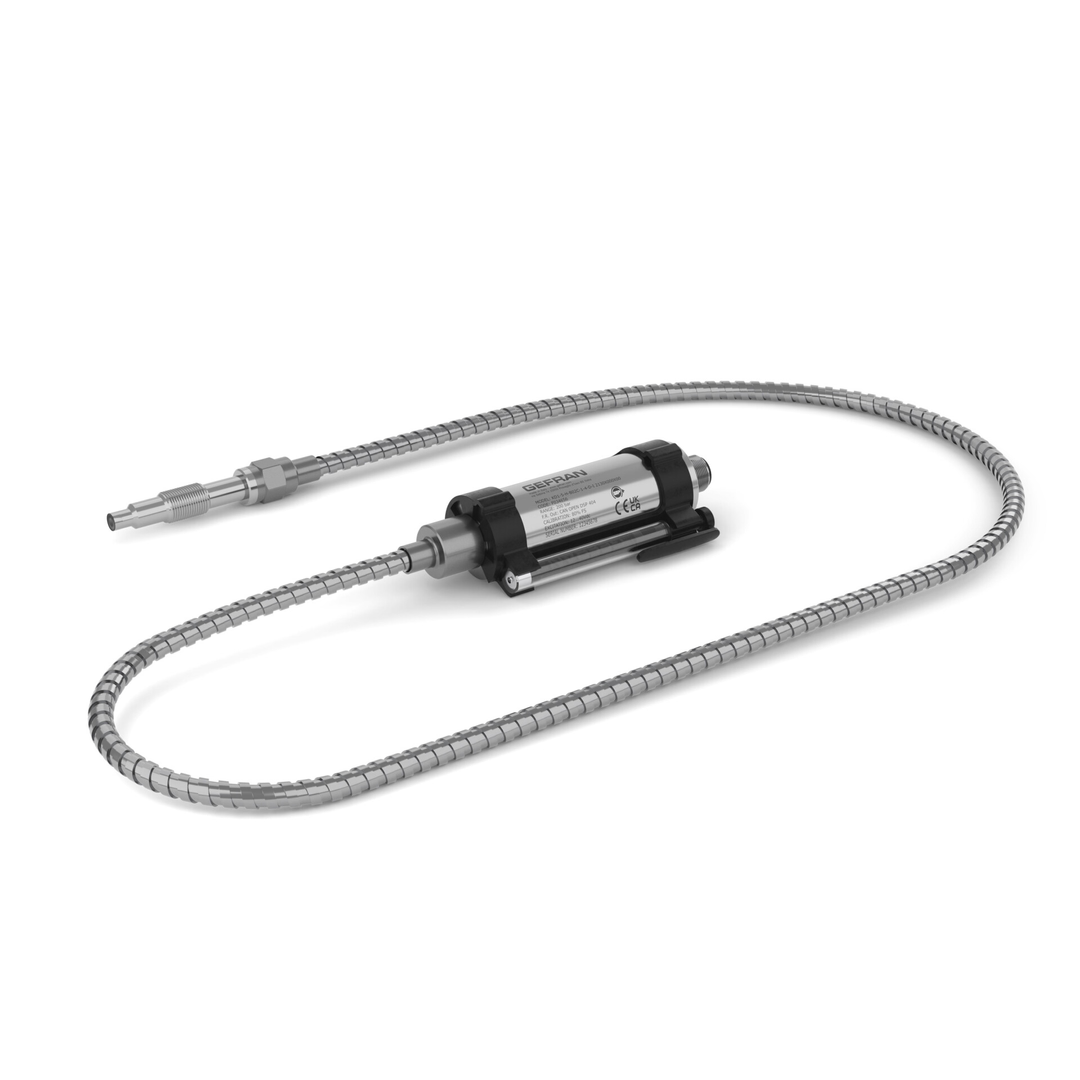

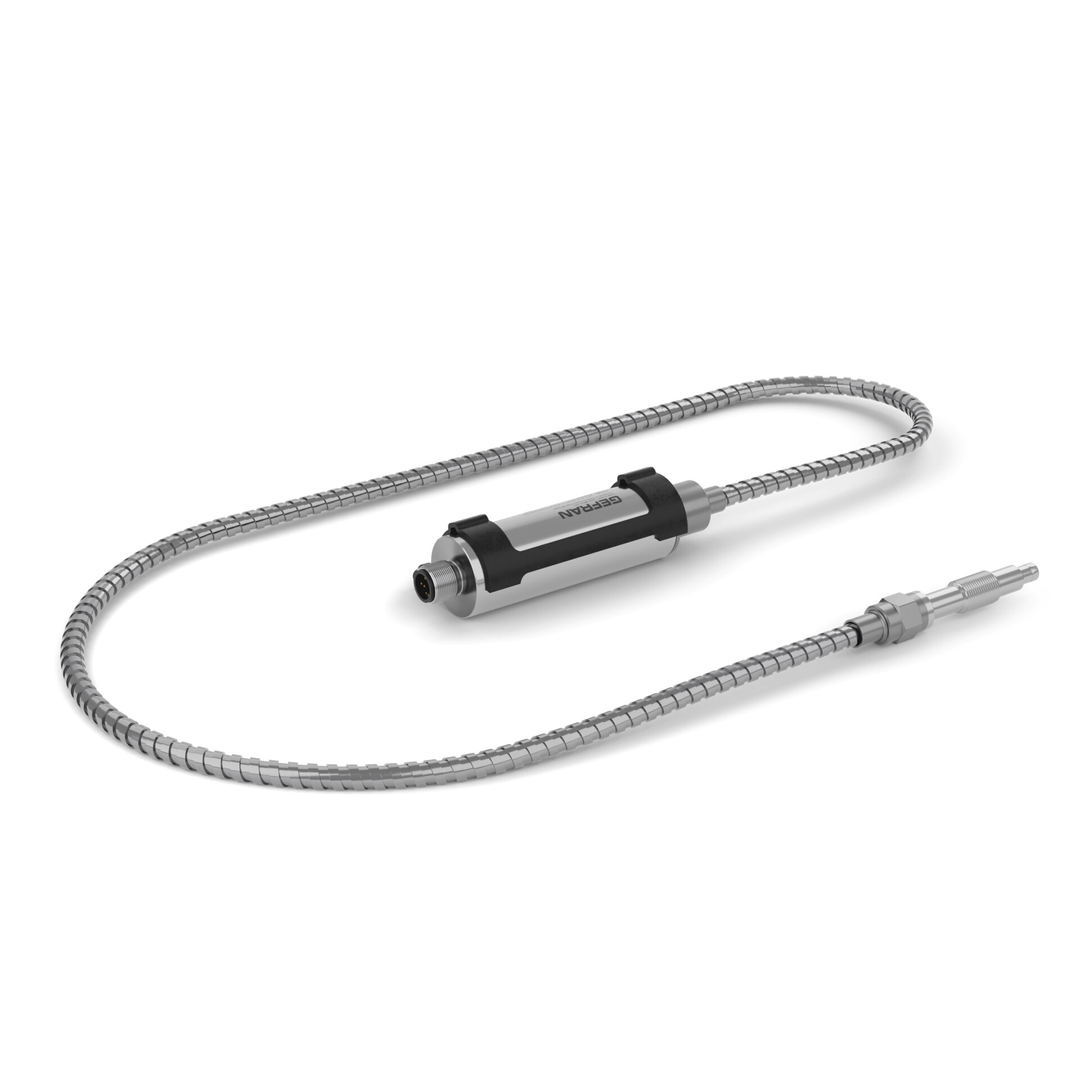

The KD Series are pressure sensors for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers.
The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.
A near incompressible sodium-potassium (i.e. NaK) mixture is used for pressure transmission.
NaK is FDA recognized safe (GRAS) substance.
Application:
- As for FDA approval, K series is suitable for Mercury free , food and medical application
- Processing special polymers, technopolymers (538°C /1000°F)
