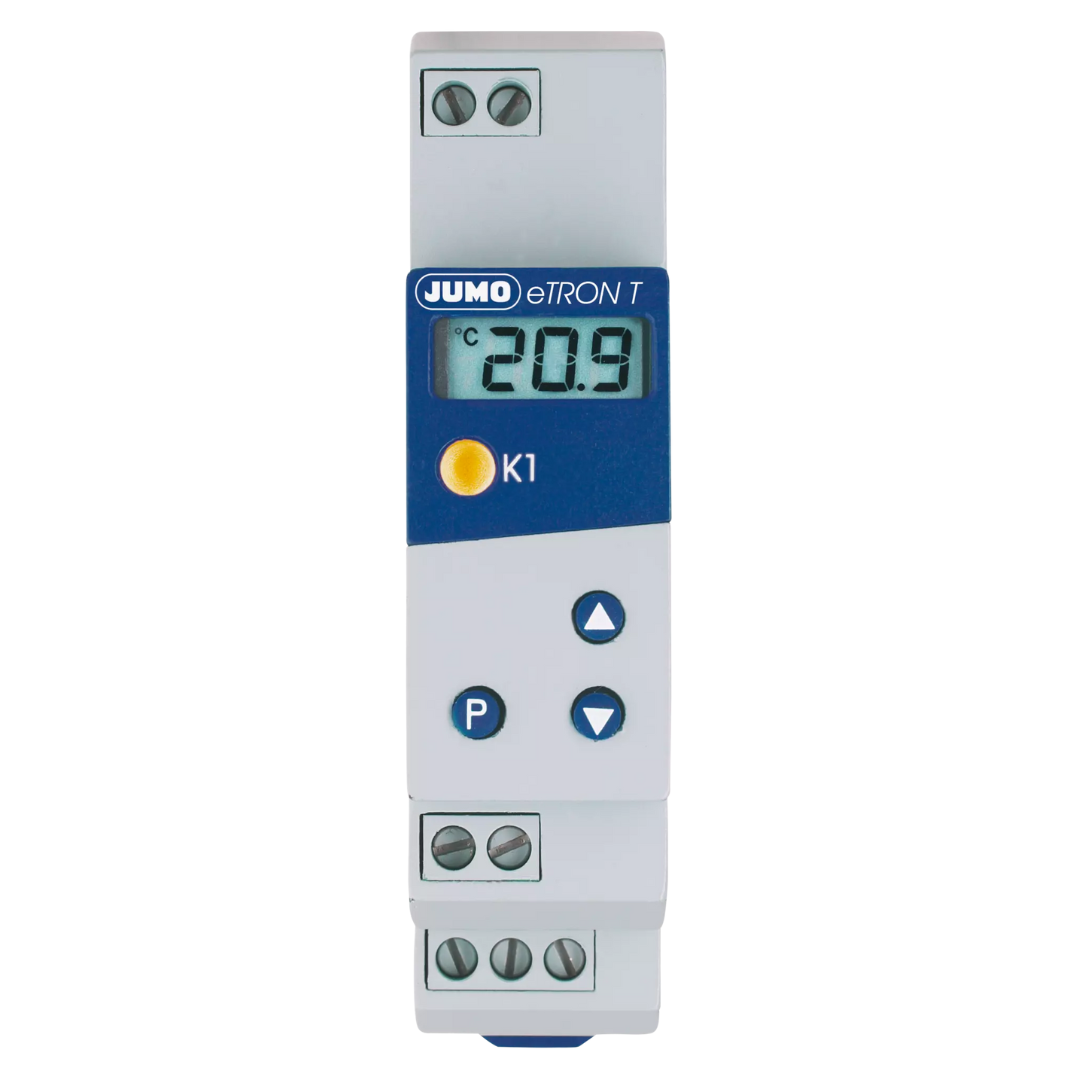

JUMO eTRON T
The JUMO eTRON T is a digital electronic thermostat for DIN-rail mounting that provides simple temperature control (heating or cooling). The actual value is displayed on a three-digit LCD display.
Technical data
| General technical data | |
|---|---|
| Measuring inputs | 1 analog input for: Pt100, Pt1000, or KTY2x-6 in two-wire circuit (configurable) or Fe-CuNi (J, L) and NiCr-Ni (K) thermocouples (configurable) or current 0(4) to 20 mA (configurable) or voltage 0 to 10 V |
| Display | Three-digit LCD display with special characters for °C, °F |
| Alarms | Messages in the display: lower/upper alarm limit temperature |
| Protection type | IP20 |
| Outputs | 1 changeover contact 10 A/250 V |
| Mounting | Mounting rail |
| Connections | Screw terminals |
| Format | 90 mm × 22.5 mm × 60 mm |
| Special features | Setup program |
| Voltage supply | AC 230 V +10/-15 %, 48 to 63 Hz; AC 115 V +10/-15 %, 48 to 63 Hz; DC 12 to 24 V +15/-15 %, AC 24 V +15/-15 %, 48 to 63 Hz |
| Approvals | Metrological certificate; cULus |
