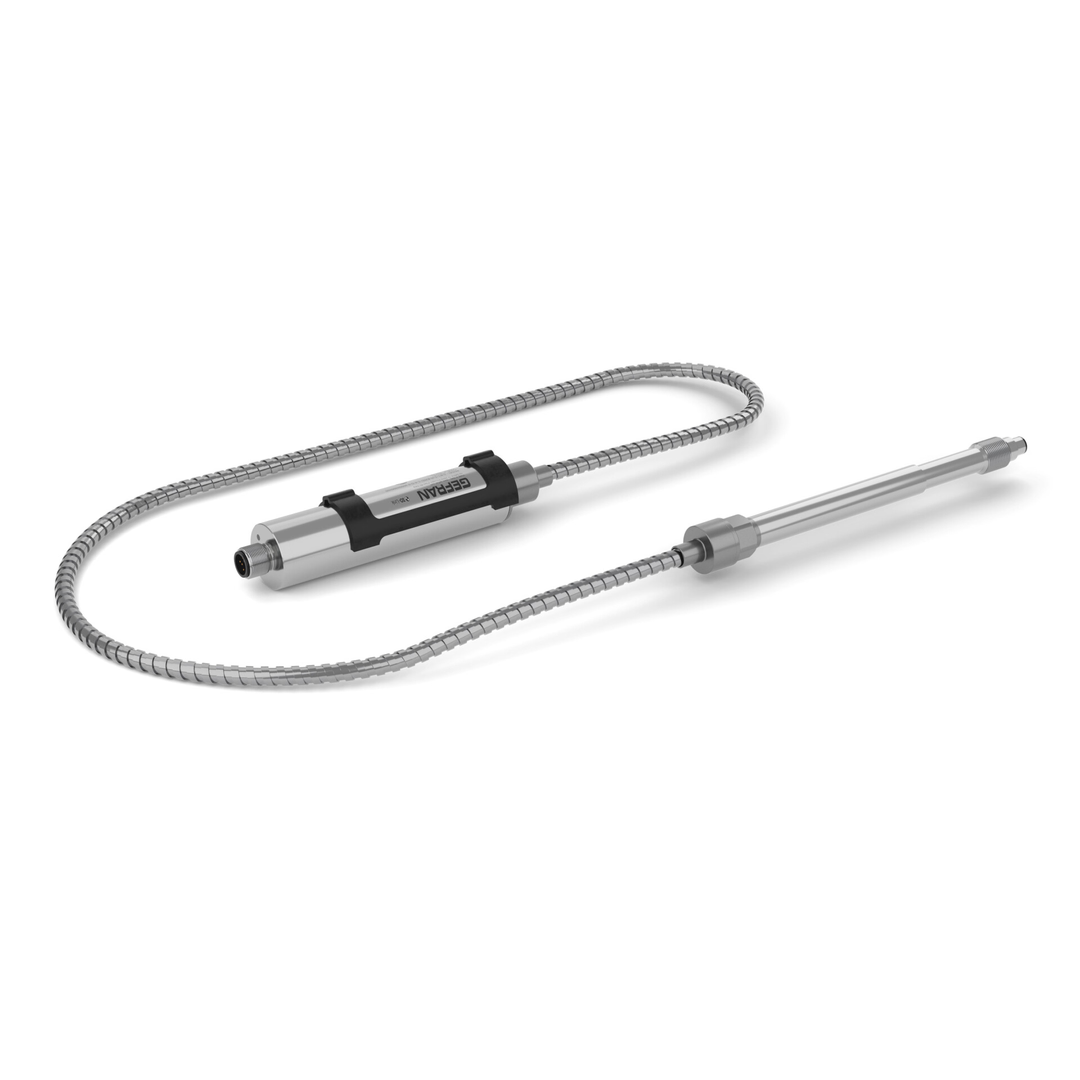

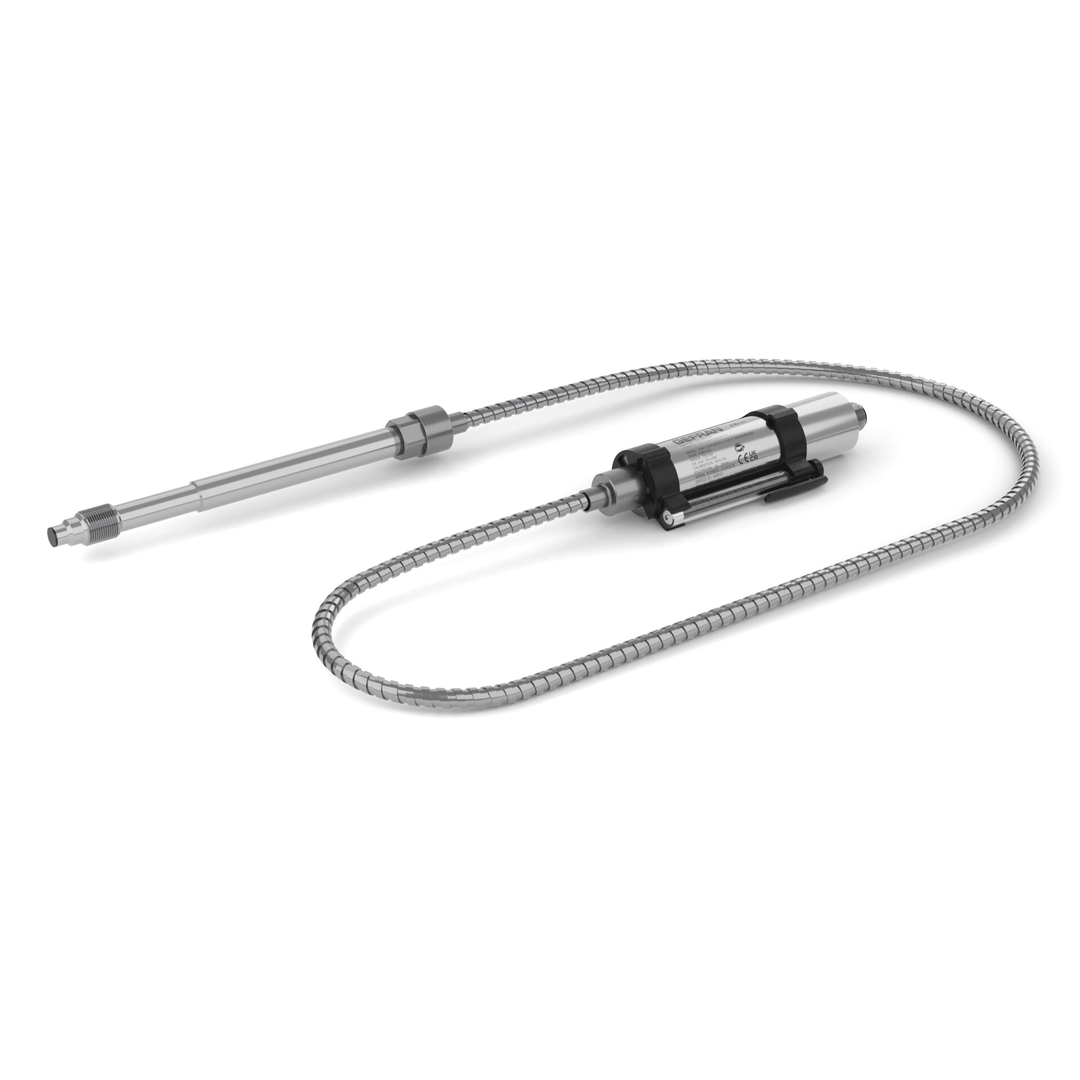

Main features
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
- 1/2-20UNF, M18x1.5 standard threads
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Datasheet
– ILW DATASHEET
User Manual
– ILM – ILW – ILK Installation Manual
Flyer
– Melt IO-link
Certifications
– EU CONFORMITY DECLARATION_Melt ILW SIL2 PLd below 500bar
– UK Conformity Declaration – Melt ILW min 500bar
– UK Conformity Declaration – Melt ILW over 500bar
– UK Conformity Declaration – Melt ILW SIL2 PLd min 500bar
– UK Conformity Declaration – Melt ILW SIL2 PLd over 500bar
– EU CONFORMITY DECLARATION_Melt ILW SIL2 PLd below 500bar
– EU CONFORMITY DECLARATION_Melt ILW SIL2 PLd over 500bar
– SIL2/PLd certification ILM/ILK/ILW Series
Technical specifications
Overview
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)

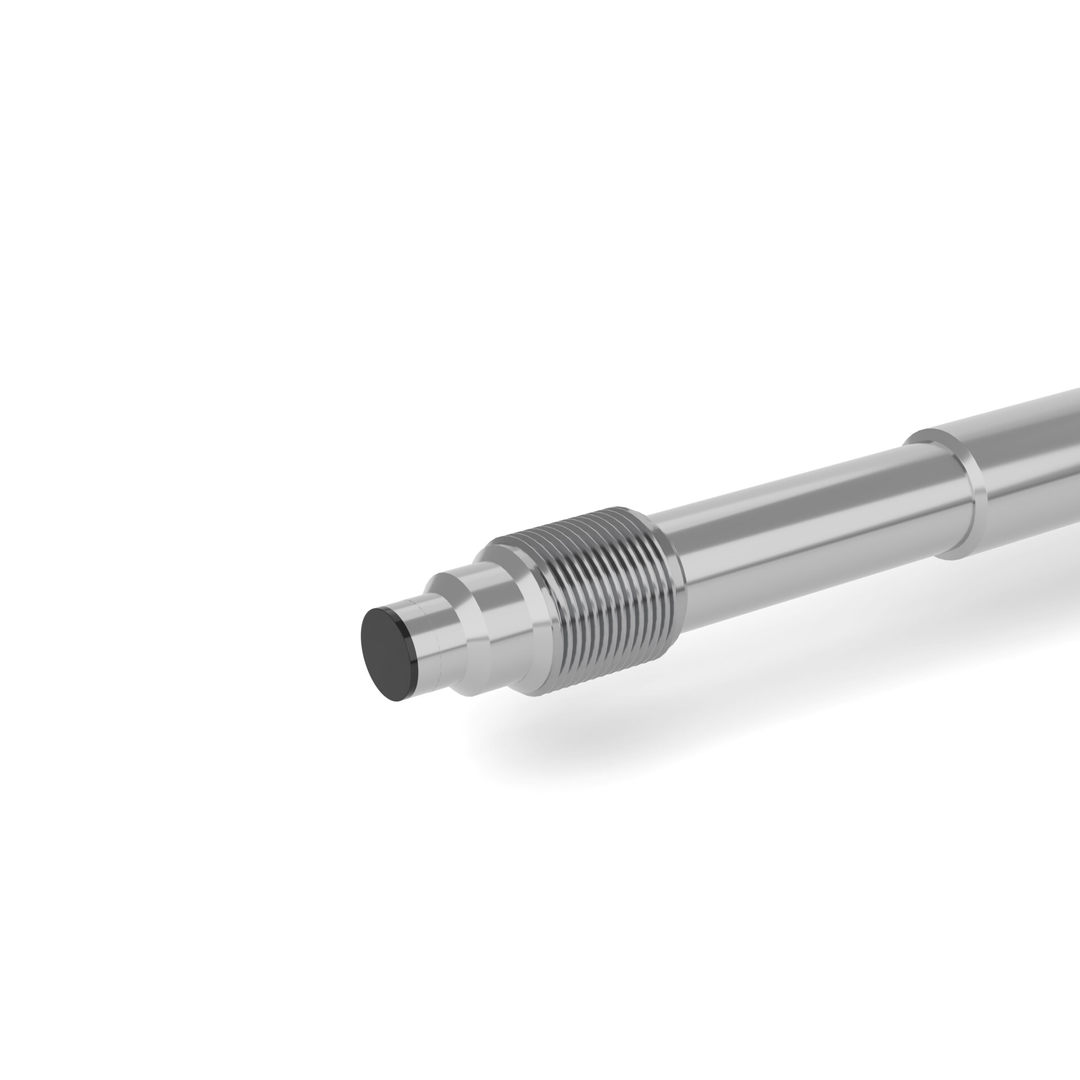

- 1/2-20UNF, M18x1.5 standard threads
- 17-7 PH corrugated diaphragm with GTP+ coating
- Oil filling meets FDA requirements CFR 178.3620 and CFR 172.878
- IO-Link digital output, ready for “Industry 4.0”
- Rangeabilty: 3:1
- PLd and SIL2 approvals for Functional safety
- Autozero function
- Auxiliary information over IO-Link protocol
