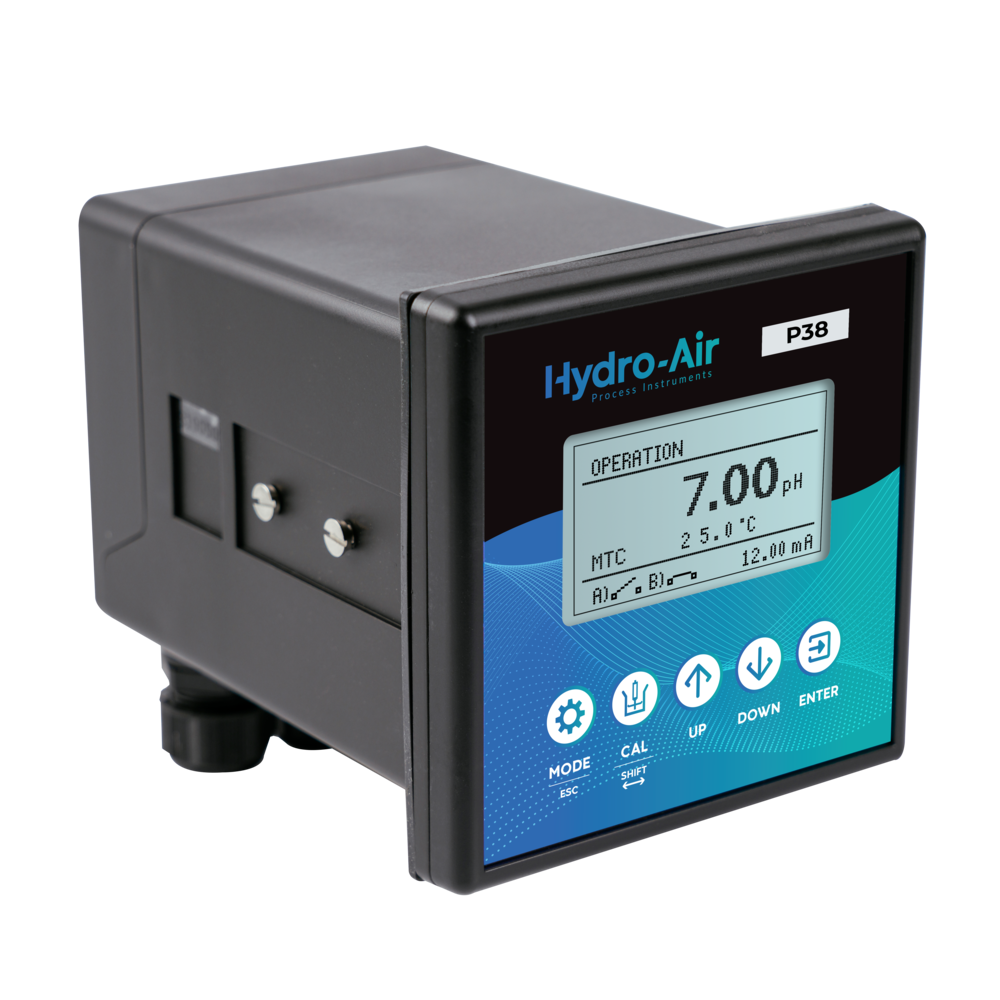

Hydro-Air P38 pH/ORP Analyzer
The P-38 series is our state-of-the-art analyzer for pH and Oxidation Redox Potential (ORP). Striving to realize the unique qualities and simplicity of the displays are the keys to an efficient operation. Hence, P-38 is the right analyzer for a wide range of users’ experience.
The operation and calibration can be performed easily with a friendly step-by-step interface. Besides, the controller is well-equipped with analogue output and Field Bus Connection RS-485 communication.
The P-38 offers you the best features you need for the reliable treatment of industrial and process water, drinking water as well as wastewater.
Specifications
- Measuring Ranges: pH (-2.00 to +16.00 pH); ORP (-2000 to +2000 mV)
- Resolution: 0.01 pH; 1 mV
- Accuracy: ± 0.01 pH; ± 1mV
- Temperature Probe: PT1000/ NTC10K
- Temperature Accuracy: ± 0.2 deg C
- Ambient Temperature: 0 to 70 deg C
- Input Impedance: > 10^12 Ω
- Analogue Output: 1 x 4-20mA electrically isolated, Max load 500Ω
- Output Signals: 2 x Relay Outputs
- Fieldbus Connection: RS-485 Modbus
- Power Supply: 240 VAC; 24 VDC
- Dimensions: 108(H) x 108(W) x 140(D) mm
