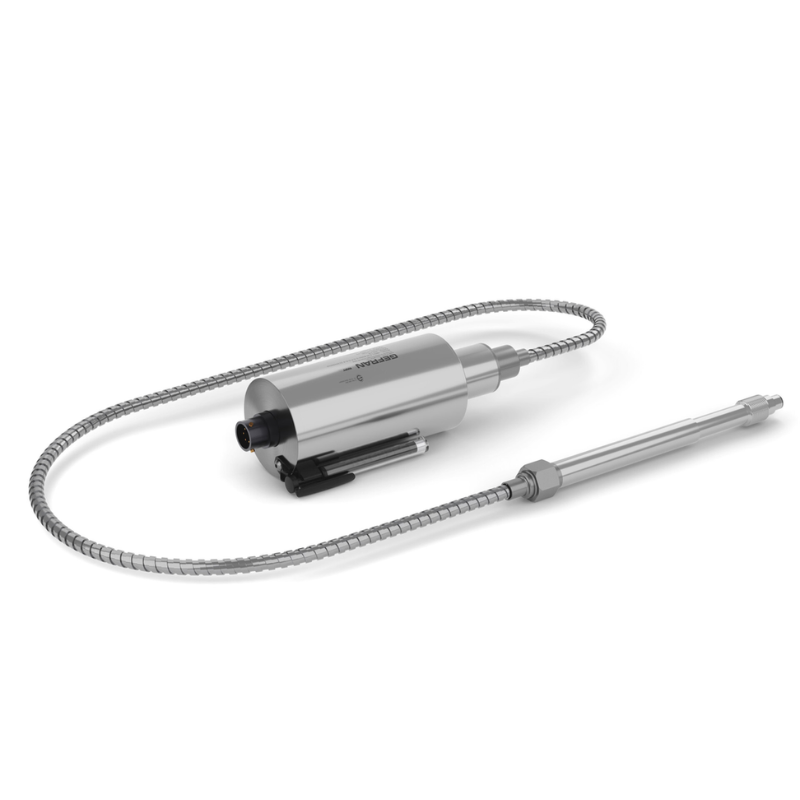

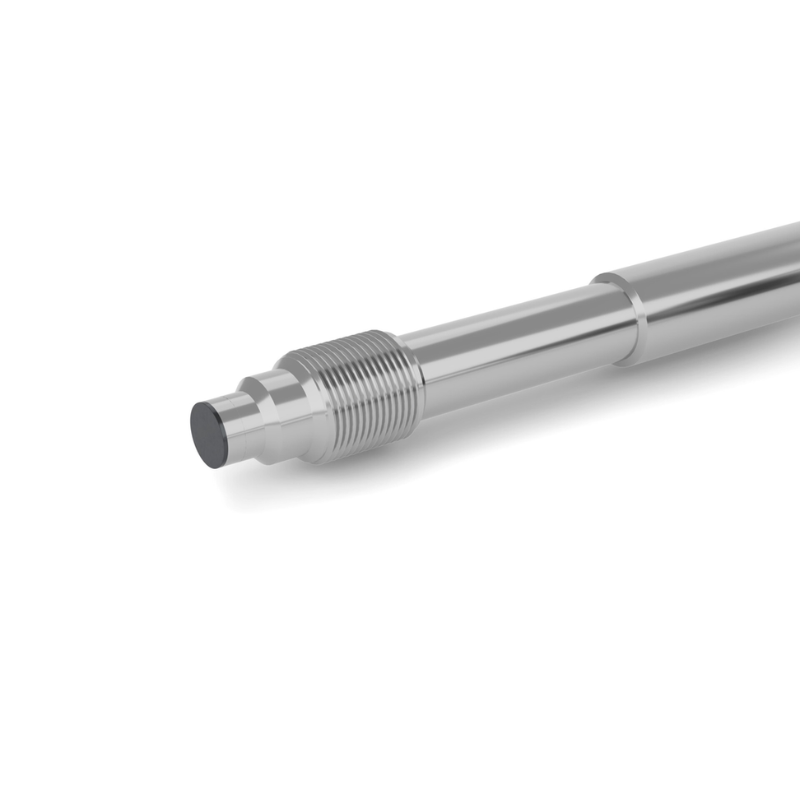

HMX
Mercury Filled – HART – ATEX – IECEx – EAC – PAC – SIL2 – PLd – KCs – Nepsi Ex – PESO
Main features
- Pressure ranges from: 0-17 a 0-2000 bar/0-250 a 0-30000 psi
- Extensimetric measurement principle with Wheatstone bridge
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Device Description File
– H pressure transmitter description file
– H pressure transmitter description files for HH475
– H pressure transmitter description file rev. 2
Catalogue
– 4.0 plastic application catalogue
Informative Rohs
– RoHS informative note
User Manual
– HWX4, HMX4, HMX, HWX Safety note
– HMX, HWX SAFETY NOTES – 3GD
– HMX-HWX EAC Ex012 – Safety Note
– HW/HM/HK SERIES – User manual
Flyer
– Flyer Melt for Polymers
Datasheet
– HMX datasheet
Certifications
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – KAZAKISTAN (LINGUA KAZAKA)
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – KAZAKISTAN (LINGUA RUSSA)
– PAC – PATTERN APPROVAL CERTIFICATE HMX/HWX/HIX – RUSSIA
– NEPSI Ex APPROVAL CERTIFICATE – HMX/HWX/HIX
– PESO- Petroleum & Explosives Safety Organisation CERTIFICATE HMX/HWX/HIX
– KCs APPROVAL CERTIFICATE_HMX
– EU CONFORMITY DECLARATION_HMX FS min 500bar SIL 2
– EAC Ex certification HMX_HWX_HIX_KX
– IECEx Certificate of Conformity – Pressure transmitters HART series HMX, HWX, HIX
– SIL2/PLd XERTIFICATION HM/HW/HK SERIES
– EU Conformity declaration_HMX FS min 500bar SIL 2
– EU Conformity declaration_HMX FS min 500bar PL d
– EU Conformity declaration_HMX FS min 500bar
– EU Conformity declaration_HMX FS over 500bar PL d
– EU Conformity declaration_HMX FS over 500bar
– ATEX Certification – HMX/HWX/HIX/AX DNV 21 ATEX 81471
– Hart Certifications
– GTP+ FDA Certificate
Technical specifications
Overview
The HMX series of Gefran, are pressure transmitters for using in High temperature environment and specifically designed for melt pressure measurement and available only to be used in large-scale fixed installations or in large-scale stationary industrial tools, typically extruders, or for laboratory B2B equipments for R&D purposes according to the European Directive 2011/65/EU.
The HMX series of Gefran are pressure transmitters with HART communication protocol for using in high temperature environment with explosive atmosphere presence.
The main characteristic of this series is the capability to read temperature of the media up to 400°C.
The constructive principle is based on the hydraulic trasmission of the pressure.
The fluid-filled system assures the temperature stability.
The physical measure is transformed in a electrical measure by means of strain-gauge technology.
