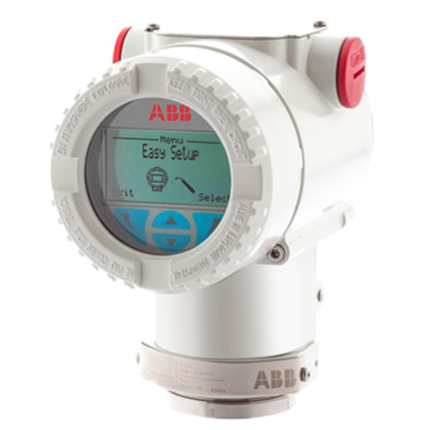

Dual-compartment temperature transmitter TTD300
Dual-compartment temperature transmitter TTD300
Back to products

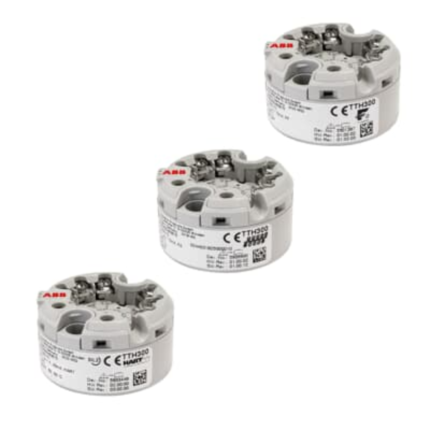

Head-mount temperature transmitter TTH300
Head-mount temperature transmitter TTH300

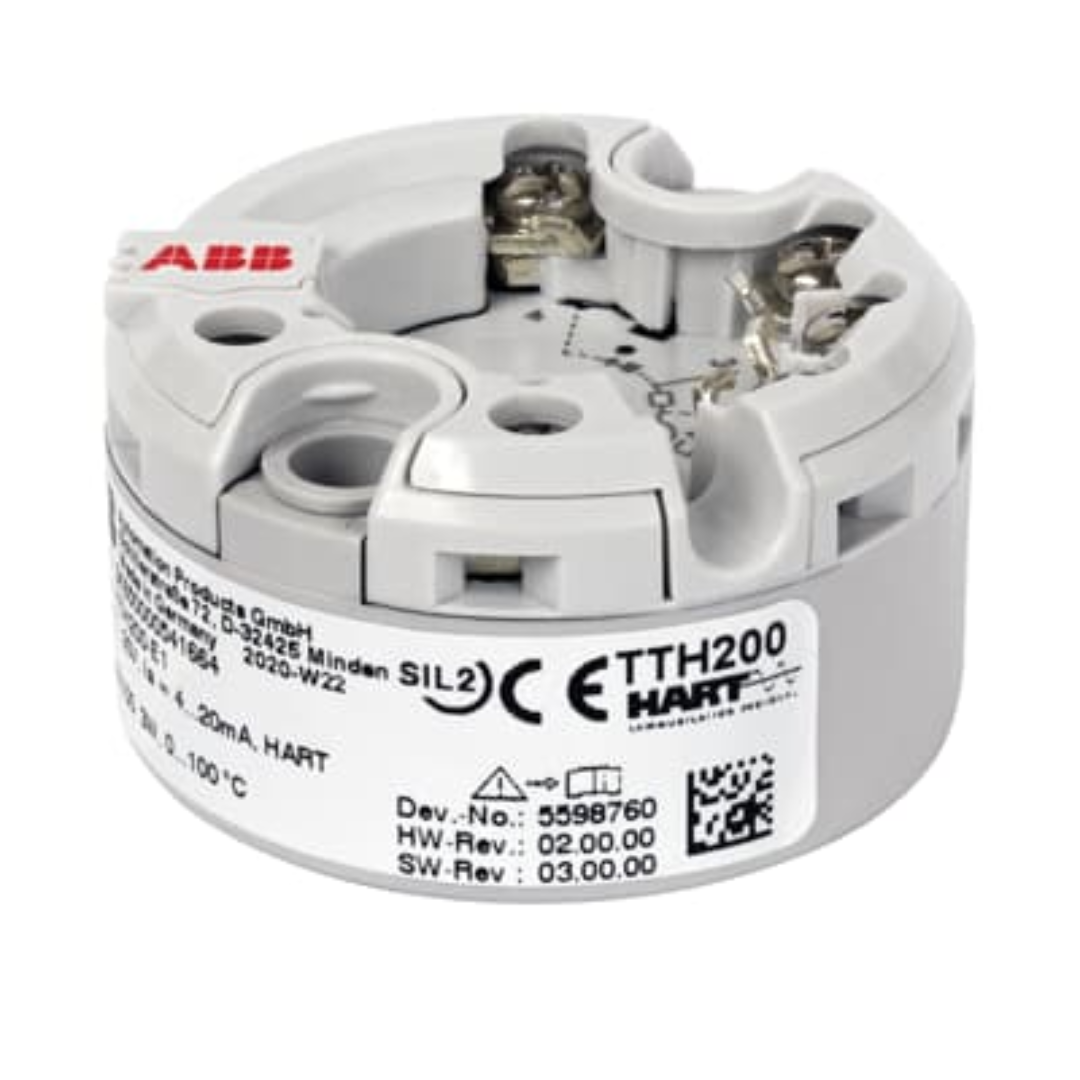

Head-mount temperature transmitter TTH200

The new temperature transmitter TTH200 supports both the HART 5 and HART 7 protocol and is the standard device of the proven TTx200 / TTx300 product family in two-wire technology.

Category:

Overview

The TTH200 is provided for all HART standard applications in temperature measurement with one sensor input. The transmitter follows NAMUR Recommendations such as NE 89 and NE 107. The TTH200 supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. As an option, an LCD indicator can be connected.
The transmitter can be configured with ABB-tools such as Field Information Manager (FIM), with DAT200 (Asset Vision Basic) via DTM, with a Handheld via EDD, or with any standard tool using FDI-/FDT-Technology.

Data

  • Universal sensor input
    – RTD, thermocouple, Ω, mV
  • Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
  • Various sensor error-calibration possibilities
    – One point, two point, Callendar-van Dusen, freestyle characteristics with 32 supporting points
  • Output signal
    – 4 to 20 mA, HART 5 and HART 7 (switchable)
  • Accuracy 0.1 %, long-term stability 0.05 % per year
  • Wire break / corrosion monitoring in accordance with NE 89
  • Device status signaling and freely configurable diagnostic categorization with diagnostic history according to NE 107
  • Event monitor for logging critical events
  • Configuration monitor for configuration changes
  • Turnable LCD indicator for optimal readability (option)
  • Approvals for explosion protection
    – ATEX, IECEx, zone 0
    – FM / CSA
    – EAC, EAC-Ex
    – NEPSI

Fieldbus & HART

Choose the right driver suitable for ABB field devices.
Get for each protocol the latest software revision.

Download

– Information – Supplement / changes of the operating and commissioning instruction for Temperature measurement products for use in potentially explosive atmospheres in accordance with TR CU 012/2011 | EAC Ex KZ 7500525.01.01.01940
– Software – DTM TTx200 HART | Revision 07.04.01 / 07.06.01 / 07.06.02
– Version matrix – TTx200
– Supplementary information – Driver TTx200 HART
– Certificate – TTH300, TTH300-N, TTH200, TTR200, TTF300, TTF300-N, TTF200 (all HW rev. 2.0) | HART | IECEx Certificate of Conformity IECEx PTB 20.0035X | Issue No: 1
– EU Data Act Information Notice – Temperature Transmitter, head mounted TTH200
– Certificate – TTx200 | Registration 1A4D Device 06 HART
– Certificate – TTx200 | Registration FDI 06.02.00 HART
– Software – EDD TTx200 HART | Revision 02 02, 03 01, 04 01, 05 01, 05 02, 06 01, 06 02
– Software – FDI TTx200 HART | Revision 01.00.00, 02 04 / 03.01.00, EDD 03 01 / 04.01.00, EDD 04 01 / 05.01.00, EDD 05 01 / 05.02.00, EDD 05 02 / 06.01.00, EDD 06 01 / 06.02.00, EDD 06 02
– Certificate – TTH200, TTH300, TTH300-N | HART, HW-Rev. 02 | Explosion Protection, Certificate of Conformity | ECAS-Ex Ex i, Ex ec, Ex nA, 25-03-142448/E25-02-147396/NB0002 | expires 2026-03-05
– Declaration of conformity – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N from HW-Rev. 02.00.00 | HART | Temperature transmitter | EU
– Brochure – Temperature measurement | Precise and flexible for efficient processes
– Declaration of conformity – HMI Type A, AS, B, BS | LCD indicator | EU
– Certificate – TTH200, TTH300, TTF300 | PROFIBUS PA & FOUNDATION Fieldbus | Explosion protection, Certificate of Conformity | NEPSI Ex i, GYB21.3835X | China | expires 2026-11-21
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200 | HART, HW-Rev. 02 | Explosion protection, Certificate of Conformity | NEPSI Ex i, Ex nA, GYJ21.2849X | China | expires 2026-07-29
– Drwaing – TTH200 | Head-mount temperature transmitter | STEP 3D
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200, TSP341-N | HW-Rev. 02 | Explosion Protection, Certificate of Conformity | FMus IS, NI, FM21US0103X Supplement 2 | United States
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200, TSP341-N | HW-Rev. 02 | Explosion Protection, Certificate of Conformity | cFM IS, NI, FM21CA0070X Supplement 3 | Canada
– Application note – Temperature measurement with non-invasive technology | Sulfuric acid temperature measurement with TSP341-N
– Application note – SensyTemp TSP131, TTH200, TTH300, NINVA TSP341-N | Temperature measurement in steam pipes of chemical plants
– Declaration of conformity – TTH200, TTH300, TTR200, TTF200, TTF300 | HW-Rev.: 01 | Temperature transmitter | EU
– Manufacturer declaration – HMI-Ex type A, HMI-Ex type AS, HMI-Ex type B, HMI-Ex type BS | LCD display | Directive 2014/34/EU
– Manufacturer declaration – TTH200-E2H | Temperature transmitter | Directive 2014/34/EU
– Manufacturer declaration – Temperature transmitter TTH200, TTR200, TTF200 – SIL capability
– Control Drawing – TTH200 | HW-Rev. 02 | Explosion Protection | cFMus IS, TTH200-L1H Rev. 02.01
– Control Drawing – TTH200 | HW-Rev. 02 | Explosion Protection | cFMus NI, TTH200-L2H Rev. 02.01
– SIL-safety manual – TTH200, TTH300, TTF200, TTF300 | HW-Rev. 02 | Functional safety | SIL 2/3, IEC 61508
– Commissioning instruction – TTH200 | Head-mount temperature transmitter
– Operating instruction – TTH200 | Head-mount temperature transmitter
– SIL-safety manual – TTH200, TTR200, TTF200 | SIL
– Certificate – TTH200, TTH300, TTF200, TTF300 | HW-Rev. 02 | Functional safety | SIL 2/3, 1435.IM.14343/21 V1.0 | expires 2027-04-04
– Certificate – Measurement & Analytics | Certificate of Conformity | Restriction of Hazardous Substances | No. 21-01-02768/Q21-01-000066/NB0007 | UAE RoHS
– Certificate – TTH200, TTH300, TTH300-N, TTF300, TTF300-N (each HW Rev. 2.0) | HART | EU-Type Examination Certificate PTB 20 ATEX 2008 X Issue: 0 | ATEX according to directive 2014/34/EU
– Certificate – TTH200, TTH300, TTF200, TTF300, TTR200 | HART | IECEx Certificate of Conformity IECExPTB 09.0014 | Issue No: 4
– Certificate – TTH200, TTH300, TTF200, TTF300, TTR200 | HART | EU-Type Examination Certificate ATEX 2017X | Issue: 01
– Information – Merger of ABB Automation Products GmbH into ABB AG
– Data sheet – TTH200 | Head-mount temperature transmitter
– Technical description – Temperature measurement from ABB | Precise and flexible – reliable and future-proof
– Course description – Z215e Basic Temperature | External version
– Handbook – Industrial temperature measurement | Basics and practice
– Certificate – HMI-Ex Type A, AS, B, BS | EC-Type Examination Certificate PTB 05 ATEX 2079 X
– Certificate – TTH, TTF, TTR – Version with HART protocol – Certificate of Compliance CSA1807522
– Certificate – TTH, TTF, TTR – Version with HART protocol – Certificate of Compliance FM3027610
– Certificate – HMI-Ex Typ A, AS, B, BS – Certificate of Conformity, IECExPTB 12.0028X
– Certificate – TTx200 | SIMATIC PDM Integration Test V6.0 SP3 | EDD 0202 HART
– Certificate – HMI LCD display Type A, Type AS, Type B – Certificate of Compliance, CSA 1797320
– Certificate – DTM400 Certificate ABB Instrumentation EN
– Software – DTM TTx200 HART | Revision 05.00.03
– Control Drawing – HMI LCD display Type A, Type AS, Type B, Type BS – FM Non-Incendive and FM Intrinsic Safety | SAP_214748 and SAP_214751
