GTF-Xtra
Single-phase power controller up to 60A, with over current fault protection (Xtra)
Main features
- Suitable for use in a wide range of applications including furnaces for heattreatment, high temperature materialsintering processes, glass and ceramic production
- The integrated overcurrent fault protection provides complete heating process and system protection
- Designed for Super Kanthal™ and silicon carbide single or three-phase heating systems
Available resources
2D/3D Files
– GTF-XTRA
Datasheet
– Datasheet GTF Xtra
Quick Start Guide
– Quick start guide – GTF Xtra
Configuration Software
– CATALOG VER. 3.1.0
– GF_EXPRESS VER 2.1.54
Brochure
– Gefran product range brochure
User Manual
– GF_EXPRESS README
– GTF-Xtra – Installation and Operation Manual
– GTF, GTFXtra – Programming and Configuration
Technical specifications
Overview

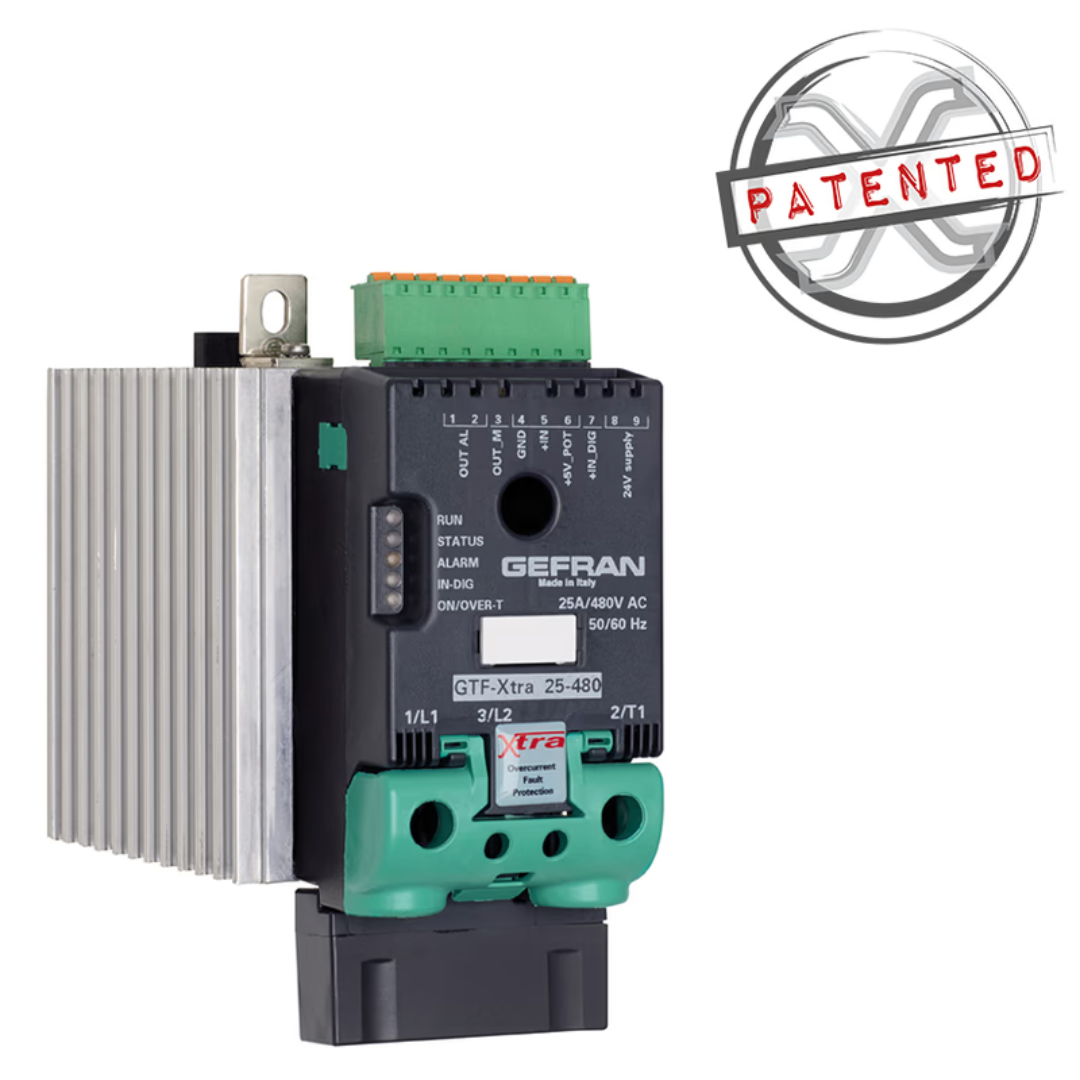

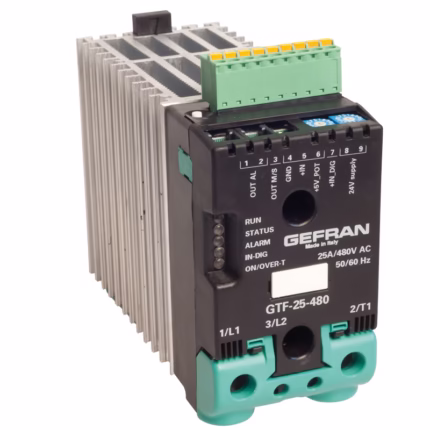

The Gefran GTF-Xtra power controller combines the functionality of a single, two or three phase solid-state power unit and controller with the benefits of the unique integrated overcurrent fault protection function.
The fault protection eliminates the need for extra-rapid fuses, reducing machine downtime and the cost of replacing fuse failures. It does so by instantaneously monitoring load current, cutting the power if the load reaches a pre-set threshold and isolating the power switching devices.
In applications susceptible to intermittent short-circuits and overloads, the Gefran Xtra power controller can be programmed to restore power automatically when the fault has cleared, preventing complete process shutdown and maintaining production.
Alternatively, power can be manually restored, locally or remotely.
A soft-start ramp is applied when the current is restored, to prevent system damage in the event that the fault is not effectively cleared.
The GTF-Xtra controller is compact, modular and optimised to control virtually any type of restive heating system in a wide range of industrial applications.
Impressive functionality is assured by a comprehensive array of options that are configurable with intuitive, guided-set-up, PC-based Windowstm software.
GTF-Xtra always provides an RS485 serial connection with Modbus RTU protocol to control currents, voltages, powers, load status, and device status from the supervisor terminal (HMI) or PLC.
