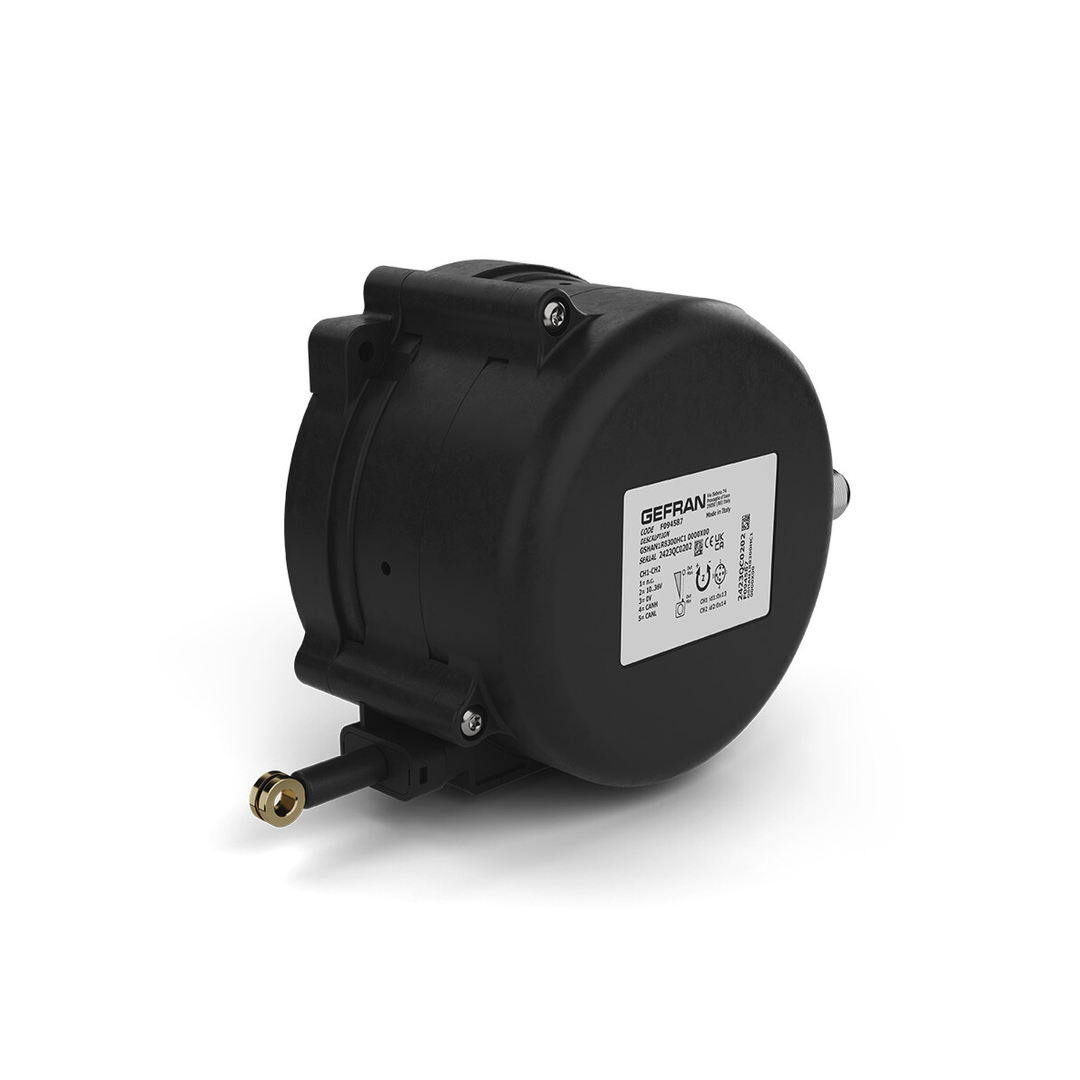

GSH-A 1.8-8.3 m
Wire position transducer with tilt angle measurement
Main features
- Stroke from 1800 to 8300mm
- Z-axis angle ±180°
- CAN Open output
Available resources
Brochure
– Position Tranducers
– Gefran product range brochure
– Solutions for mobile hydraulics
Documentation – previous versions
– GSH-A – Datasheet
Datasheet
– GSH-A – Datasheet
Flyer
– GSH-A – Flyer
User Manual
– GSH-A – User manual
Certifications
– UK Conformity declaration – GSH-A
– EU Conformity declaration – GSH-A
Technical specifications
Overview
Contactless linear sensor – HALL EFFECT technology –
with embedded single-axis MEMS inclinometer (i.e. single axis Z).
Excellent performance, high IP rating, shock and vibration resistance guarantee sensor performance in typical mobile hydraulic applications, wherever there’s the need to monitor a linear position and a tilt angle at the same time.
The compact design – with only 65mm height – and the CANopen signal ouput as well as the full redundant circuit, both for the linear position and for the tilt angle measurements, make such a sensor a state-ot-the-art multivariable transducer.
