Information
They can be used to measure the instantaneous flowrate of liquids or gases in various applications.
They are designed to be installed into vertical Teflon lines.
So they are suitable for chemical and corrosive application.
Specification
| Measuring | Liquid, Gas |
| Meter size | 15A (½”) ~ 80A (3″) |
| Material | Body : 304SS, 316SS, 316L SS with PTFE Lining Float : 316SS, 316L SS, PVC, PTFE Packing : NBR, VITON, EPDM, PTFE |
| Pressure rating | Max.8 kgf/cm² |
| Temperature | Max.120 ℃ |
| Connection | Flange connection (JIS / ANSI / DIN / Other) Screw connection (Size: 15A~ 100A) |
| Accuracy | ±3.0 % of full scale |
Model & Type
| Model | Type |
| F801 | Glass tube flowmeter_Con’n : Flange |
| F802 | Glass tube flowmeter_Con’n : Socket & Screw |
| F803 | Glass tube flowmeter_Mat’l : PVC |

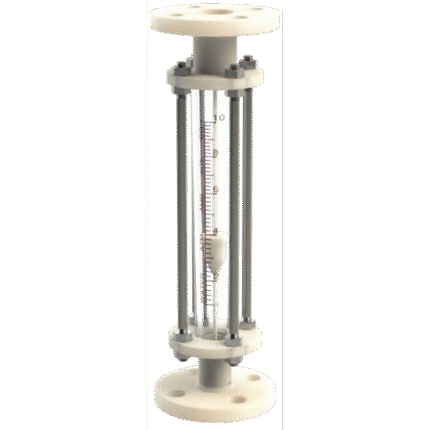

| F804 | Glass tube flowmeter_Mat’l : PTFE |

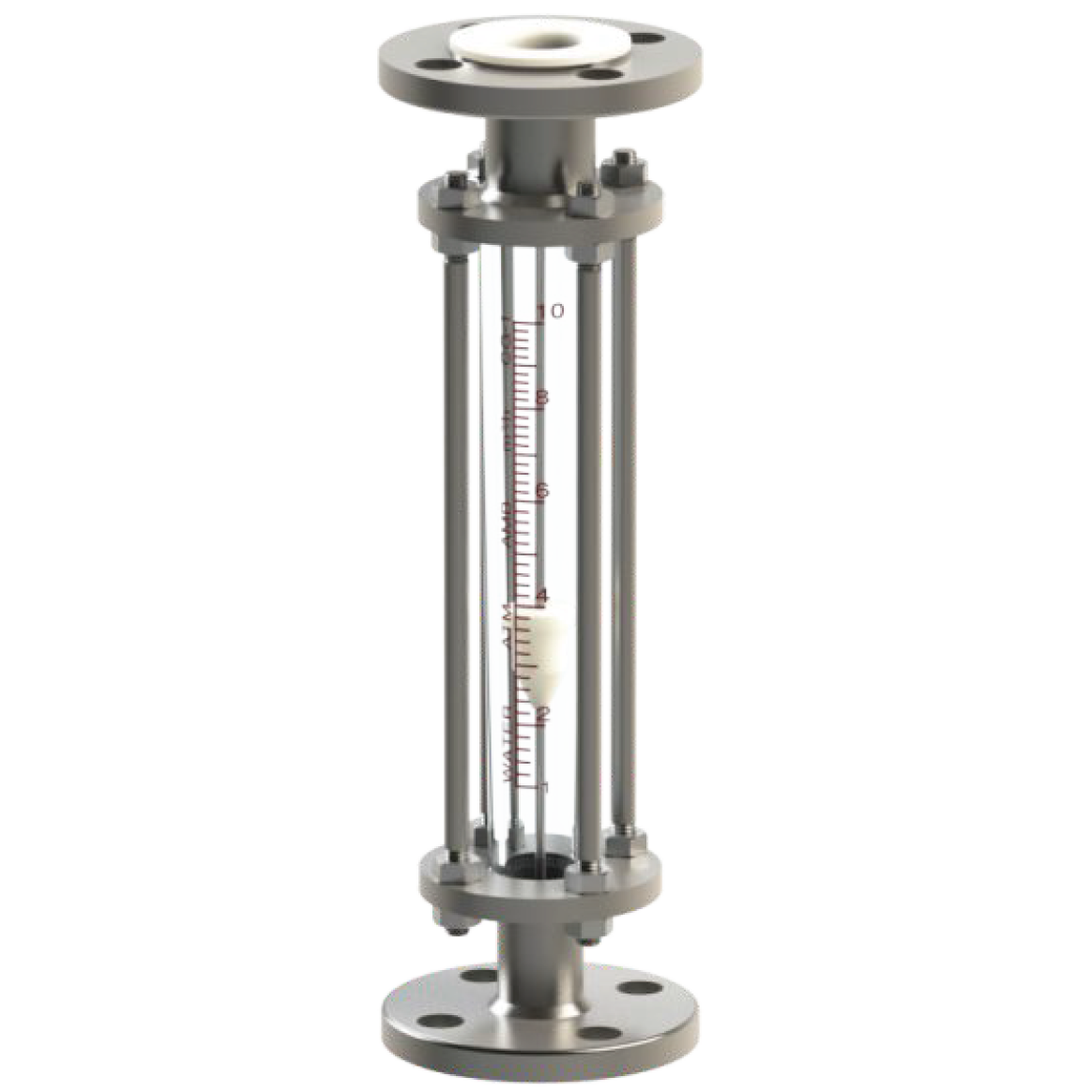

| F805 | Glass tube flowmeter_Mat’l : Teflon Lined |

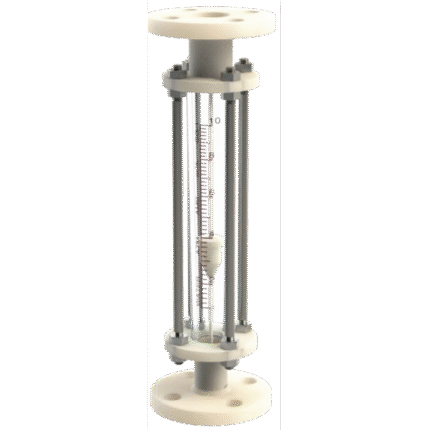

| F806 | Glass tube flowmeter_Mat’l : PP & PE |
| F807 | Glass tube flowmeter_without Guide rod |
| F808 | Glass tube flowmeter_Direct mount |
| F809 | Glass tube flowmeter_with Protect cover |
| F810 | Glass tube flowmeter_with Control valve |
| F811 | Glass tube flowmeter_Con’n : Sanitary clamp |
| F812 | Glass tube flowmeter_Large size type |
