Main features
- Controller
- 30, 60, 80kW solid state relay
- Current transformers
Available resources
Brochure
– Brochure Power Control
– Gefran product range brochure
Fieldbus Configuration files
– GFX4 – GFXTermo4 – GFX4-IR – EDS Configuration files (Devicenet)
– EDS Configuration file for GFX4IR (opzione E2)
– GFX4/GFXTERMO4/GFX4-IR GSD files Ver.P01
– GFX4/GFXTERMO4/GFX4-IR GSD files Ver.P02
– GFX4/GFXTERMO4/GFX4-IR GSD files Ver.P03
– GFX4/GFXTERMO4/GFX4-IR GSD files Ver.P04
– GFX4/GFXTERMO4/GFX4-IR GSD files Ver.P05
– GFX4-IR GSD files Ver.HP01
– GEFRAN Profinet V2.00 (for Step 7 / CPU3xx)
– EDS CONFIGURATION FILE FOR GFX4-IR (OPZIONE E5)
– GFX4-IR address map
– EDS CONFIGURATION FILE FOR GFX4-IR (OPZIONE E8)
– GFX4/GFXTERMO4/GFX4-IR GSD FILES VER.P06
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C05
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C06
– GFX4/GFXTERM04/GFX4IR EDS files Ver. HC02 (“High performance”)
– GFX4/GFXTERM04/GFX4IR EDS files Ver. HC03 (“HIGH PERFORMANCE”)
– GSDML configuration file for GFX4-IR (opzione E4)
Datasheet – Fieldbus
– GFX4/GFXTERM04-Profibus datasheet
– GFX4/GFXTERM04-CANopen datasheet
– GFX4/GFXTERM04-DeviceNet datasheet
– GFX4/GFXTERM04-Modbus datasheet
– GFX4/GFXTERM04-EtherCAT datasheet
– GFX4/GFXTERM04-Modbus TCP datasheet
– GFX4/GFXTERM04/GFX4-IR/GFW Ethernet IP Datasheet
– GFX4-GFXTermo4-GFX4-IR-PROFINET Data Sheet
Software
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C04 (“BRIDGE”)
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C01 (“BRIDGE”)
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C02 (“BRIDGE”)
– GFX4/GFXTERM04/GFX4IR EDS files Ver. C03 (“BRIDGE”)
– GFX4/GFXTERM04/GFX4IR EDS files Ver. HC01 (“High Performance”)
Datasheet
– GPX4-IR datasheet
User Manual
– HW – Installation and Operation Manual
– GF_EXPRESS README
– GF_eXpress UserGuide
– GFX4-IR – Programming and Configuration
User Manual – Fieldbus
– MSW ETHERNET IP_E1 (obsolete version) – GFX4/GFX4-IR/GFXTermo4
– MSW ETHERNET IP (obsolete version) – GFX4-IR
– MSW ETHERNET IP E8 – GFX4 – GFXTERM04 – GFX4-IR
– GFX4-IR PROFINET – User manual
– GFX4/GFX4IR/GFXTHERMO4 (ETHERCAT) – Installation and operational manual
– GFX4/GFXTERMO/GFX-IR CANopen – Configuration and programming manual
– GFX4/GFXTERMO/GFX-IR Profibus-Programming and Configuration
Software – Library
– Step 7 Library 1.00
– Step 7 Library 2.00
Catalogue
– 4.0 plastic application catalogue
Quick Start Guide
– Quick start guide – GFX4IR
Configuration Software
– CATALOG VER. 3.0.0
– GF_EXPRESS VER 2.1.54
Certifications
– EU Conformity Declaration 2019 – GFX4IR
– SCCR 100KA – GFX4, GFX4-IR and GFW
– UK Conformity declaration – GFX4IR
– EAC CERTIFICATION
– Ethernet IP certification – ODVA – GFX4-IR («E8»)
– Profinet Certification 2024 – GFX4-IR
– Ethernet IP Certification – Ethernet IP – ODVA – GFX4-IR («E5»)
– UL Certifications – UL – GFX4-IR serie
Technical specifications
Overview

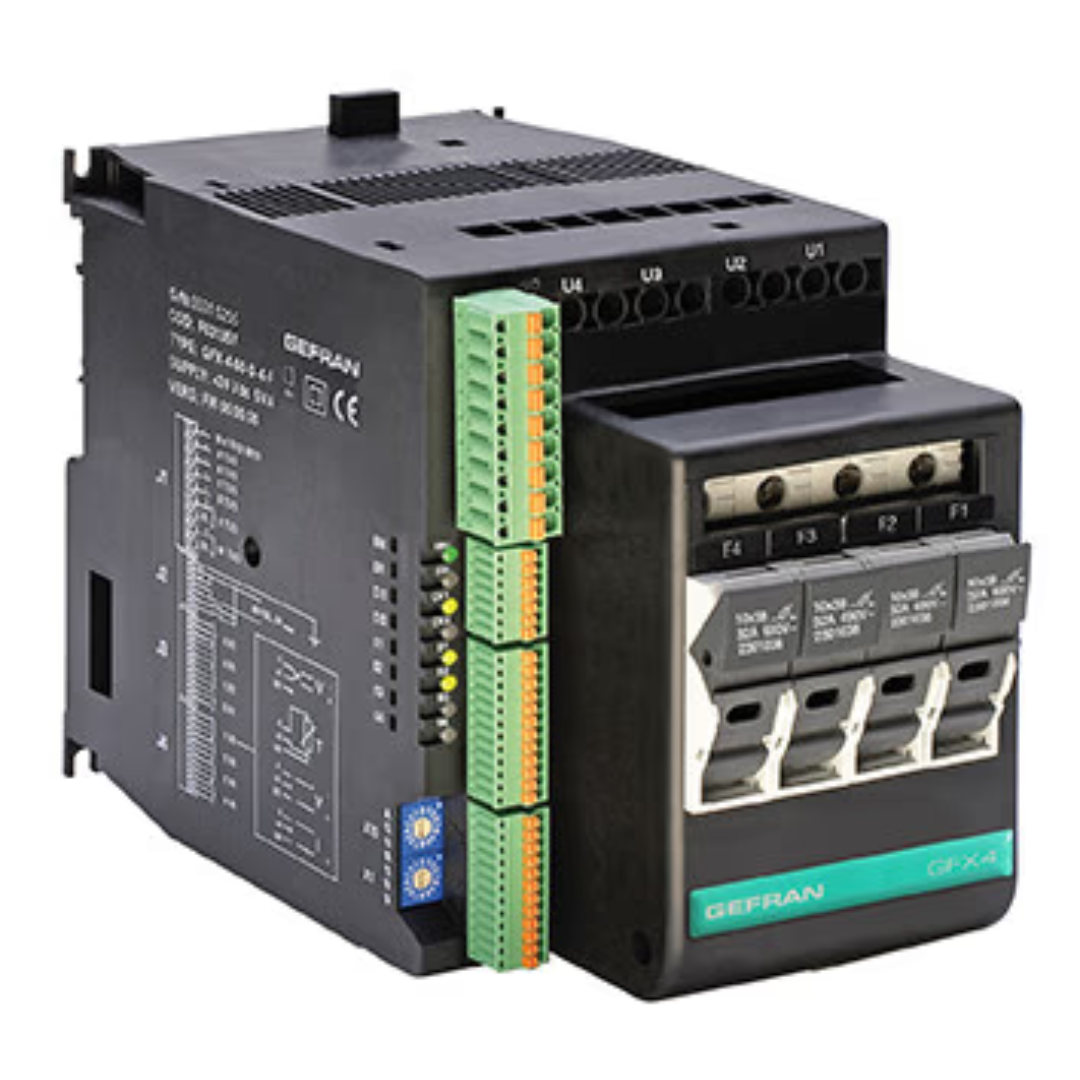

GFX4-IR is a four independent loop controller, designed to manage electrical power.
GFX4 is a compact unit bounding different technological elements like:
- controller
- solid state relay
- current transformers
- fuses-holders (option)
The final result is a cost saving in terms of space and cabling.
The GFX4-IR is managed by a microprocessor that independently controls the four control loops and also runs functions specifically designed to manage singlephase and 3-phase loads, with low and high temperature coefficient, medium and short wave infrared lamps, and transformer primary circuits.
The multiple activation methods are all software-configurable, and include:
- Zero crossing with constant cycle time for conventional loads
- Burst firing with variable cycle time for systems with low thermal inertia, medium wave IR lamps
- Single cycle for short wave IR lamps with reduced flickering (half single cycle)
- Phase angle control with current limit for short wave IR lamps, transformer primaries, with assignment of soft start up and soft stop down options with limitation of max. rms current.
GFX4IR runs complete diagnostics of current, voltage, and temperature levels:
Current
- Total and partial interrupted load alarm
- “Teach-in” function for self-learning of alarm threshold for interrupted load
- SCR in short circuit alarm
- Load in short circuit or in overcurrent alarm
- Unbalanced 3-phase load alarm
Voltage
- Phase loss in case of 3-phase configurations
- Check of correct phase sequence alarm
Temperature
- Overtemperature alarm
Various feedback functions in the absence of PID control have been developed for complete control of loads in all types of applications:
- Voltage feedback (V) with current limit
- Current feedback (I)
- Power feedback with maximum power limit
Configuration is changed by setting simple parameters with a software tool that guides the user to a correct and safe configuration.
GFX4-IR dialogs with the operator terminals according to the most popular protocols: from the simple and efficient Modbus to (via a second optional fieldbus communication) the by-now indispensable Profibus DP, CANopen, DeviceNet, Modbus RTU, Ethernet Modbus TCP, Ethernet IP.
The product comes with a standard configuration that is simple and quick to modify, for example, to assign different functions to outputs.
