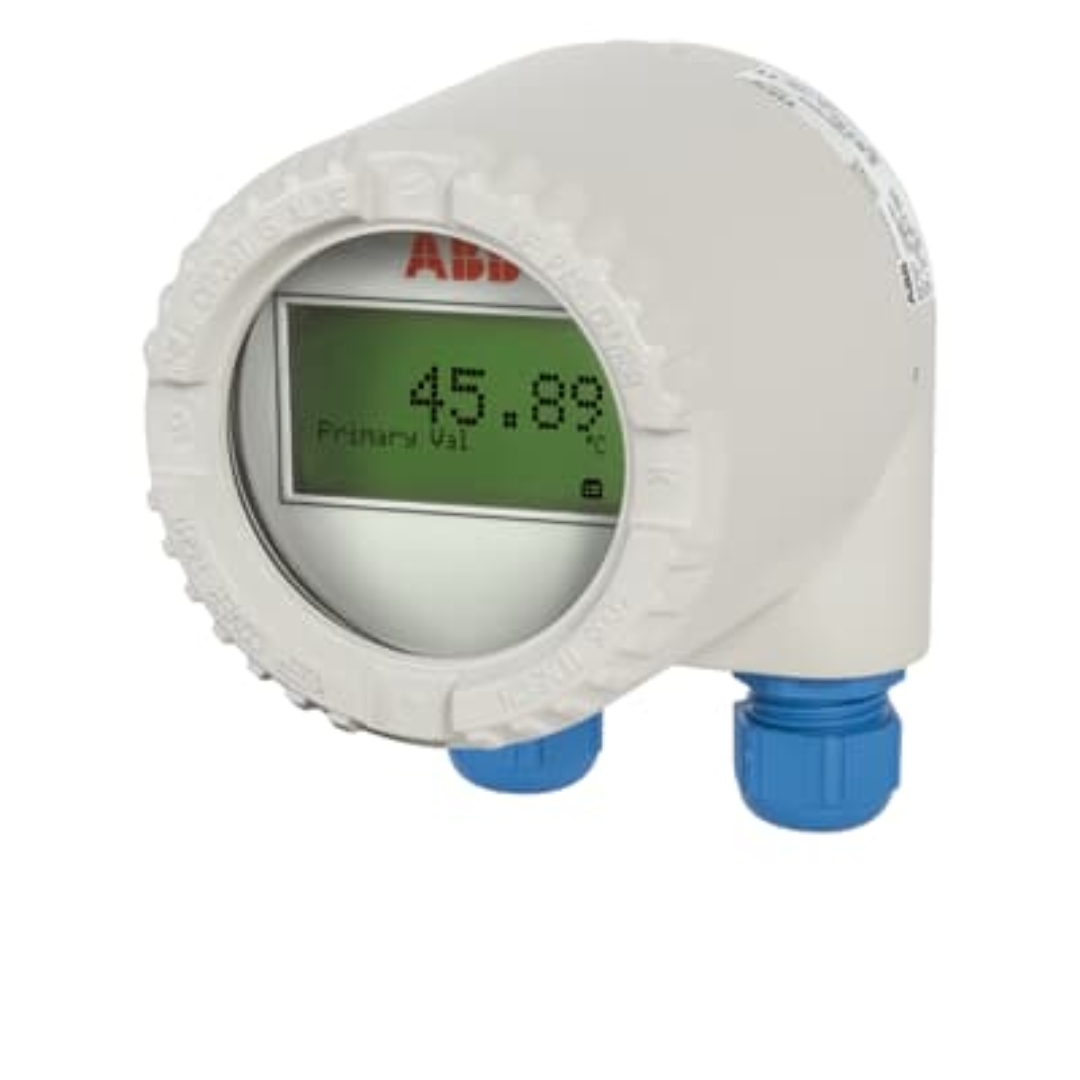

Field-mount temperature transmitter TTF200

The TTF200 HART temperature transmitter completes the TTx200 / TTx300 product family in proven two-wire technology.

Category:

Overview

The field-mount temperature transmitter TTF200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTF300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology.

Data

  • Universal sensor input
    – RTD, thermocouple, Ω, mV
  • Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
  • Output signal
    – 4 to 20 mA, HART
  • Accuracy 0.1 %, long-term stability 0.05 % per year
  • Wire break / corrosion monitoring in accordance with NE 89
  • Diagnostic information in accordance with NE 107
  • IP 66 / IP 67, NEMA 4X aluminum or stainless steel field-mount housing
  • Large, user-friendly LCD indicator Type BS
  • Approvals for explosion protection
    – ATEX, IECEx, zone 0

Fieldbus & HART

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.

Software and documentation:

Stand-alone tool:
ABB offers software tools that use the listed drivers above for your device configuration and monitoring requirements. Read more & download

Fieldbus solutions:
ABB offers a wide range of fieldbus products, accessories, tools, support documentation, applications and news. Read more

Download

– Software – DTM TTx200 HART | Revision 07.04.01 / 07.06.01 / 07.06.02
– Version matrix – TTx200
– Supplementary information – Driver TTx200 HART
– Certificate – TTH300, TTH300-N, TTH200, TTR200, TTF300, TTF300-N, TTF200 (all HW rev. 2.0) | HART | IECEx Certificate of Conformity IECEx PTB 20.0035X | Issue No: 1
– EU Data Act Information Notice – Temperature Transmitter, field mounted TTF200
– Certificate – TTx200 | Registration 1A4D Device 06 HART
– Certificate – TTx200 | Registration FDI 06.02.00 HART
– Software – EDD TTx200 HART | Revision 02 02, 03 01, 04 01, 05 01, 05 02, 06 01, 06 02
– Software – FDI TTx200 HART | Revision 01.00.00, 02 04 / 03.01.00, EDD 03 01 / 04.01.00, EDD 04 01 / 05.01.00, EDD 05 01 / 05.02.00, EDD 05 02 / 06.01.00, EDD 06 01 / 06.02.00, EDD 06 02
– Certificate – TTF200, TTF300, TTF300-N, TSA100, TSP300, TSP341-N | HART, PROFIBUS PA & FOUNDATION Fieldbus | Explosion Protection, Certificate of Conformity | ECAS-Ex Ex d, 25-03-142442/E25-02-147387/NB0002 | expires 2026-03-05
– Certificate – TTF200, TTF300, TTF300-N | HART, HW-Rev. 02 | Explosion Protection, Certificate of Conformity | ECAS-Ex Ex i, Ex ec, Ex nA, 25-03-142444/E25-02-147393/NB0002 | expires 2026-03-05
– Certificate – TTF200, TTF300, TSA100, TSP300, TTF300-N, TSP341-N | IECEx Certificate of Conformity | IECEx Ex d, IECEx PTB 12.0039X Issue No: 6
– Declaration of conformity – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N from HW-Rev. 02.00.00 | HART | Temperature transmitter | EU
– Brochure – Temperature measurement | Precise and flexible for efficient processes
– Declaration of conformity – HMI Type A, AS, B, BS | LCD indicator | EU
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200 | HART, HW-Rev. 02 | Explosion protection, Certificate of Conformity | NEPSI Ex i, Ex nA, GYJ21.2849X | China | expires 2026-07-29
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200, TSP341-N | HW-Rev. 02 | Explosion Protection, Certificate of Conformity | FMus IS, NI, FM21US0103X Supplement 2 | United States
– Certificate – TTH200, TTH300, TTH300-N, TTF200, TTF300, TTF300-N, TTR200, TSP341-N | HW-Rev. 02 | Explosion Protection, Certificate of Conformity | cFM IS, NI, FM21CA0070X Supplement 3 | Canada
– Declaration of conformity – TTH200, TTH300, TTR200, TTF200, TTF300 | HW-Rev.: 01 | Temperature transmitter | EU
– Control Drawing – TTF200 | HW-Rev. 02 | Explosion Protection | cFMus IS, TTF200-L1H Rev. 02.02
– Control Drawing – TTF200 | HW-Rev. 02 | Explosion Protection | cFMus NI, TTF200-L2H Rev. 02.01
– Control Drawing – TTF200 | HW-Rev. 02 | Explosion Protection | cFMus XP or IS, TTF200-L3H Rev. 02.01
– Certificate – TTF200, TTF300, TTF300-N, TSA100, TSP300, TSP341-N | EU-Type Examination Certificate | ATEX Ex d, PTB 99 ATEX 1144 X Issue 3 | ATEX according to directive 2014/34/EU
– Certificate – TTH200, TTH300, TTF200, TTF300 | HW-Rev. 02 | Functional safety | SIL 2/3, 1435.IM.14343/21 V1.0 | expires 2027-04-04
– Certificate – Measurement & Analytics | Certificate of Conformity | Restriction of Hazardous Substances | No. 21-01-02768/Q21-01-000066/NB0007 | UAE RoHS
– Certificate – TTH200, TTH300, TTF200, TTF300, TTR200 | HART | IECEx Certificate of Conformity IECExPTB 09.0014 | Issue No: 4
– Certificate – TTH200, TTH300, TTF200, TTF300, TTR200 | HART | EU-Type Examination Certificate ATEX 2017X | Issue: 01
– Certificate – HMI-Ex Type A, AS, B, BS | EC-Type Examination Certificate PTB 05 ATEX 2079 X
– SIL-safety manual – TTH200, TTH300, TTF200, TTF300 | HW-Rev. 02 | Functional safety | SIL 2/3, IEC 61508
– Instruction – TSP300, TSA101, TSP341-N, TTF200, TTF300 | Temperature sensors and transmitters with INMETRO Flameproof enclosure
– Commissioning Instruction – TTF200 | Field-mount temperature transmitter
– Operating instruction – TTF200 | Field-mount temperature transmitter
– SIL-safety manual – TTH200, TTR200, TTF200 | SIL
– Information – Merger of ABB Automation Products GmbH into ABB AG
– Technical description – Temperature measurement from ABB | Precise and flexible – reliable and future-proof
– Course description – Z215e Basic Temperature | External version
– Data sheet – TTF200 | Field-mount temperature transmitter
– Manufacturer declaration – Temperature transmitter TTH200, TTR200, TTF200 – SIL capability
– Handbook – Industrial temperature measurement | Basics and practice
– Software – DTM TTx200 HART | Revision 05.00.03
– Certificate – HMI-Ex Typ A, AS, B, BS – Certificate of Conformity, IECExPTB 12.0028XS
– Certificate – TTx200 | SIMATIC PDM Integration Test V6.0 SP3 | EDD 0202 HART
