electromechanical axis Series 5ES…BS

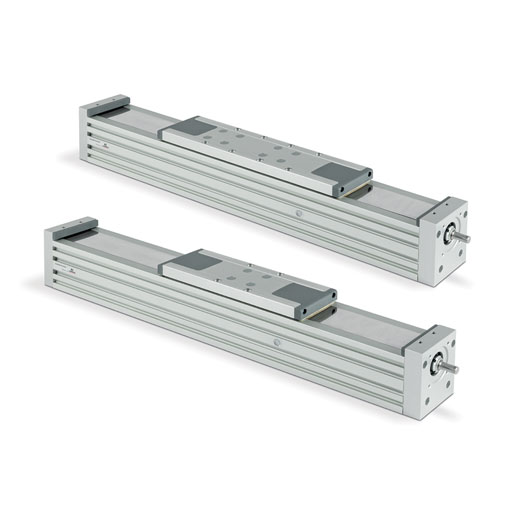

Series 5ES…BS axes are mechanical linear actuators in which the rotary movement generated by a motor is converted into a linear movement by means of a recirculating ball screw.
Series 5E is designed with a special self-supporting square profile with a recirculating ball guide integrated within the actuator, providing exceptional stiffness and resistance to external loads.
A stainless steel plate protects against the ingress of contaminating agents from the surrounding environment, especially dust and dirt.
A stainless steel plate protects against the ingress of contaminating agents from the surrounding environment, especially dust and dirt.
The axis is available in three sizes; 50, 65 and 80. They can be combined in different configurations to create multi-axis systems. Thanks to the wide range of accessories, assembly is simple and intuitive, reducing assembly and commissioning times considerably.
The axis equipped with recirculating ball screw is particularly suitable for applications requiring a high repeatability and a high load capacity.
General Data
| Construction | electromechanical axis with recirculating ball screw |
| Design | open profile with protection plate |
| Sizes | 50, 65, 80 |
| Strokes | 15 ÷ 1000 mm for size 50; 15 ÷ 1500 mm for size 65; 15 ÷ 2000 mm for size 80; |
| Type of guide | internal, with recirculating ball screw (cage type) |
| Fixing | by means of slots on the profile and special clamps |
| Mounting motor | in line and parallel |
| Operating temperature | -10°C ÷ +50°C |
| Storage temperature | -20°C ÷ +80°C |
| Protection class | IP 40 |
| Lubrication | centralized lubrification by means of internal channels |
| Repeatability [% FS] | ± 0,02 mm |
| Duty cycle | 100% |
| Use with external sensors | Series CSH magnetic switches in special slots |
Coding Example
| 5E | S | 050 | BS | 05P | 0200 | A | S | 1 |
| 5E | SERIES |
| S | PROFILE S = square section |
| 050 | SIZE 050 = 50×50 mm 065 = 65×65 mm 080 = 80×80 mm |
| BS | TRANSMISSION BS = recirculating ball screw |
| 05P | SCREW PITCH 00P = without spindle (only for D version) 05P = 5 mm 10P = 10 mm 16P = 16 mm (only for size 080) |
| 0200 | TOTAL STROKE (TS) See table of mechanical characteristics |
| A | VERSIONS A = standard axis D = support axis (dummy) |
| S | TYPE OF SLIDER S = standard C = short |
| 1 | NUMBER OF SLIDERS 1 = 1 slider |
