Electromagnetic flowmeter HygienicMaster FEH300

The HygienicMaster FEH300 standard version is designed specifically for the food & beverage, pharmaceutical and biotechnical industries. Manufactured from FDA approved materials and certified in accordance with 3-A.

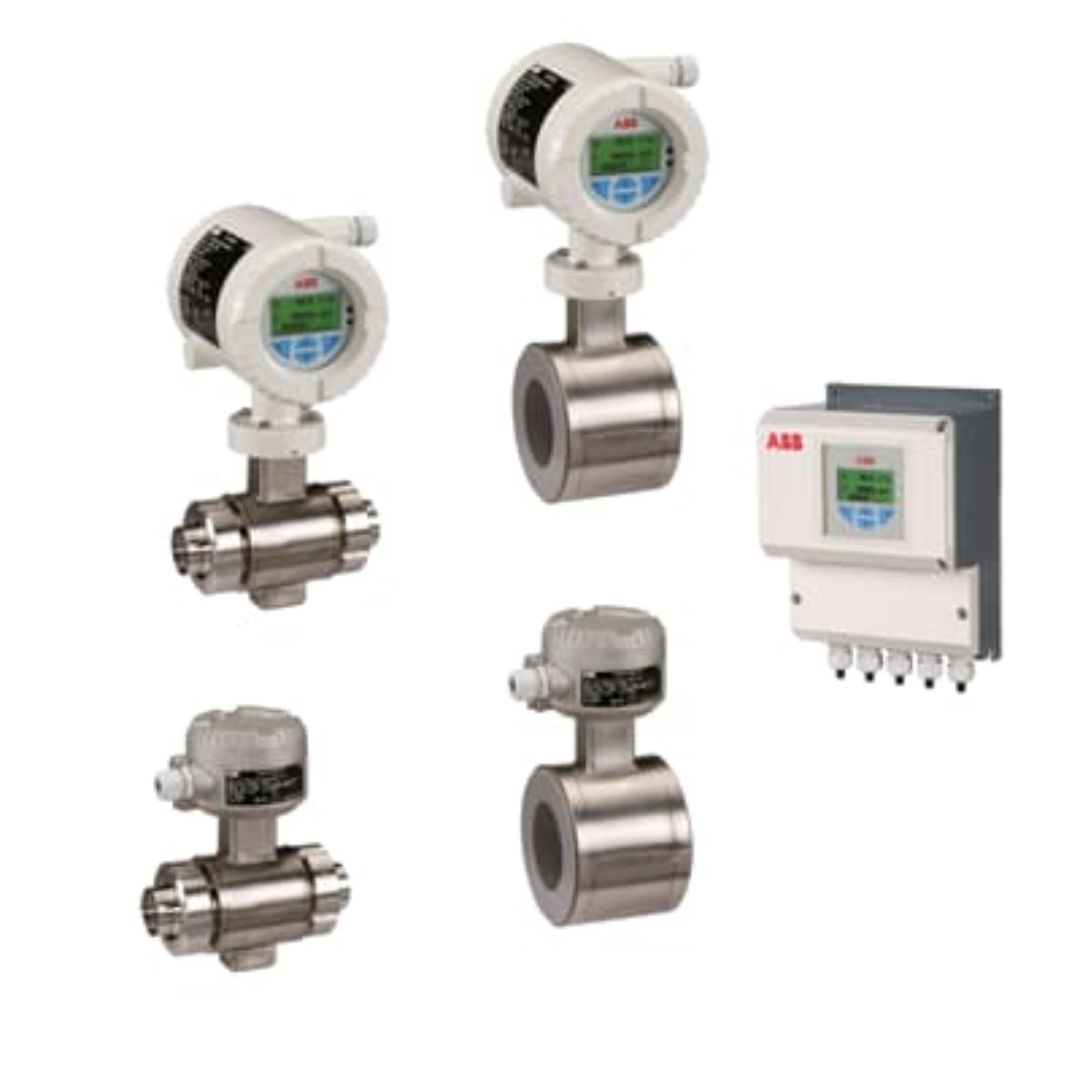

Available as integral mount design or remote mount design system.

Looking for a electromagnetic flowmeter with enhanced functionality and extended diagnostic functions? Find out more about HygienicMaster FEH500.

Category: Flow Measurement

Overview

The stainless steel exterior, the variable process connection, the advanced signal processing and the state-of-the-art data storage provide a complete and cost effective flow solution.
HygienicMaster FEH300 is a versatile, reasonably priced, most accurate flow meter tailored for all process industry applications. A flowmeter with base functionality, short delivery and a simple and clearly understandable documentation.

Intuitive and simple configuration
– Through glass configuration eliminating the need to remove the cover and reducing commissioning time
– Soft key based functionality
– “Easy Set-up” function
State-of-the-art memory technology
– Data storage enables transmitter exchange without the need for reconfiguration
Diagnostics for real-life-situations
– Status messages in accordance with NAMUR
– Help texts in LCD display
ScanMaster in situ verification software option
– Allows the customer to perform in situ verification of the flowmeter and the plant

Data

General specifications:

Measuring value error
– Standard 0.4 % of rate, optional 0.2 % of rate
Nominal diameter
– DN 3 to 100 (1/10 to 4 in.)
Process connection
– Wafer type design
– Flange in accordance with DIN 2501 / EN 1092-1, ASME B16.5 / B16.47, JIS
– Threaded pipe connection in accordance with DIN 11851
– Weld stubs
– Tri-Clamp in accordance with DIN 32676, ASME BPE
– External thread in accordance with ISO 228 / DIN 2999
Lining
– PFA (vacuum tight)
Process connection material
– Flange: stainless steel
– Variable process connections: 1.4404
Communication
– HART, PROFIBUS PA, FOUNDATION Fieldbus
Explosion protection approvals
– ATEX, IECEx, FM, cFM, NEPSI, GOST
Certificates
– 3-A, FDA-approved material

Special features:

Process diagnosis
– Empty pipe detection

Tools

For selecting the most suitable product for your application

Sizing and selection tool for electromagnetic flowmeters

Fieldbus & HART

ABB’s freedom of choice offers the right driver for the major fieldbus protocols suitable for ABB devices.
The version matrix document shows for each protocol the software revision that’s compatible to the hardware and firmware revision of the device.

Read first
– Software/hardware revisions: Version matrix

Software and documentation:

HART
– Software: DTM*, EDD
– Driver description: Supplementary information
PROFIBUS
– Software: DTM*, GSD,
– Driver description: Supplementary information
FOUNDATION fieldbus
– Software: EDD/CF

*) DSV401 Rx (SMART VISION) is not released with the latest DTM500 Bundle. Please use any latest frame application (e.g. Stand-Alone-Tool ABB DAT200 Asset Vision Basic).
