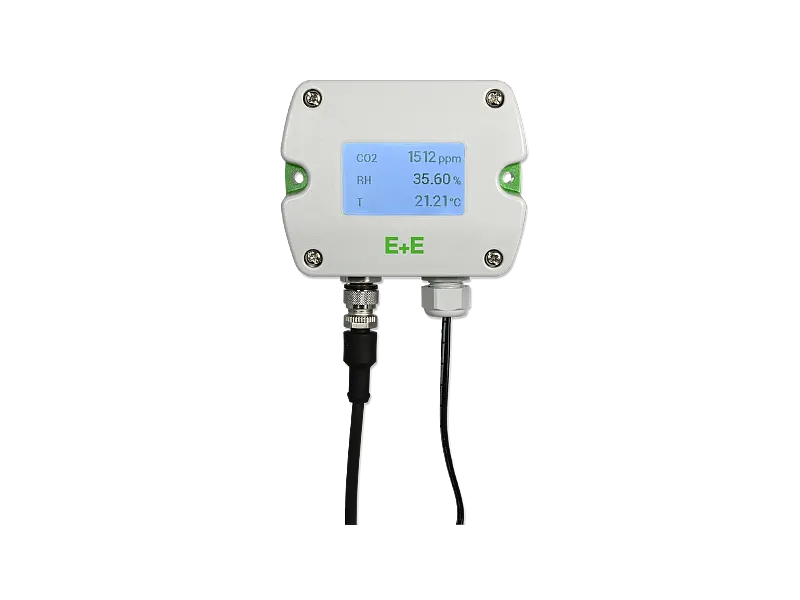

E+E Sigma 05 Modular Sensor Platform

The Sigma 05 sensor hub represents the central element of the E+E modular sensor ecosystem with intelligent probes, analogue outputs and display. With pluggable, interchangeable probes, the modular sensor platform is suitable even for harsh and challenging environment. The Sigma 05 is available with polycarbonate or die-cast aluminium enclosure.

Enquiry

Add to quote

Part Number: Sigma 05 Category: Others

Email:

sales@vlmsolutions.com.my
may@vlmsolutions.com.my
vlim@vlmsolutions.com.my

Description

Overview

Plug and play with out of the box E+E Modbus probes
Accommodates up to 3 E+E Modbus Probes
Handles up to 5 physical quantities simultaneously (2 on the outputs, 3 on the display)
Status information on the display and via LEDs on the electronics board
IP65 / NEMA 4 enclosure
Polycarbonate or die-cast aluminium enclosure available
User configurable alarm indication on the display
M12 probe connection, direct onto Sigma 05 or via M12 cables
USB service interface and free product configuration software

MAX. NUMBER OF SENSINGS PROBES	3
MAX. NUMBER OF MEASURANDS (* 2 ON THE ANALOGUE OUTPUTS / 3 ON THE DISPLAY)	5
PROBE INTERFACE	RS485
PROTOCOL	Modbus RTU
ANALOG OUTPUTS	0 – 1 V / 2.5 V / 5 V / 10 V 0 / 4 – 20 mA (3-wire)
ACCURACY OF ANALOGUE OUTPUTS AT 20 °C (68 °F) (*FS = FULL SCALE)	0.02 % FS for 0 – 10 V and 0 – 20 mA
PROTECTION RATING	IP65 / NEMA 4
