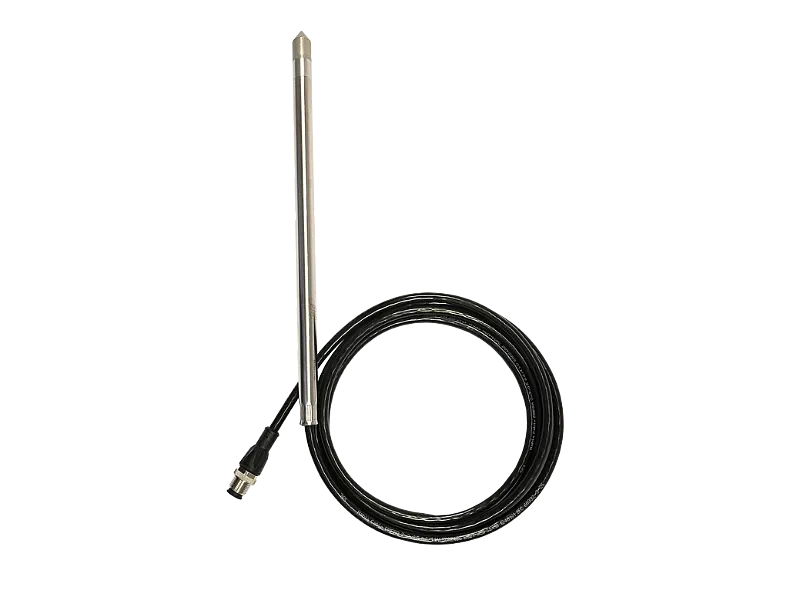

Overview

  • High accuracy and wide temperature range
  • High-end RH sensing element with E+E proprietary coating protection and optional cast leads
  • Fully protected electronics
  • Stainless steel probe in several lengths
  • Flexible high temperature cable in several lengths
  • Moulded M12x1 connector with standardized pin-out
  • RS485 with Modbus RTU protocol
  • Calculation of relevant humidity related physical quantities
  • Wide choice of filter caps
Measuring range – Humidity 0…100 % RH
Measuring range – Temperature -40…120 °C (-40…248 °F)
Output Modbus RTU
Accuracy – Humidity ± 1.3 %RH
Accuracy – Temperature ± 0.1 °C at 20 °C
Supply 8…35 V DC
