Main features
- Performance Level PL ‘c’
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FSO (H); < ±0.5% FSO (M)
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
User Manual
– WE-W7 PL ‘c’ – User Manual
Datasheet
– W7 PL ‘c’ – Datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UK Conformity declaration – Melt W min 500bar PLc
– UK Conformity declaration – Melt W over 500bar PLc
– EU conformity declaration_W series FS over 500bar PL c
– EU conformity declaration_W series FS min 500bar PL c
– Performance Level ‘c’ Certification ME/M7, WE/W7, KE/K7 Series
– GTP+ FDA Certificate
Technical specifications
Overview

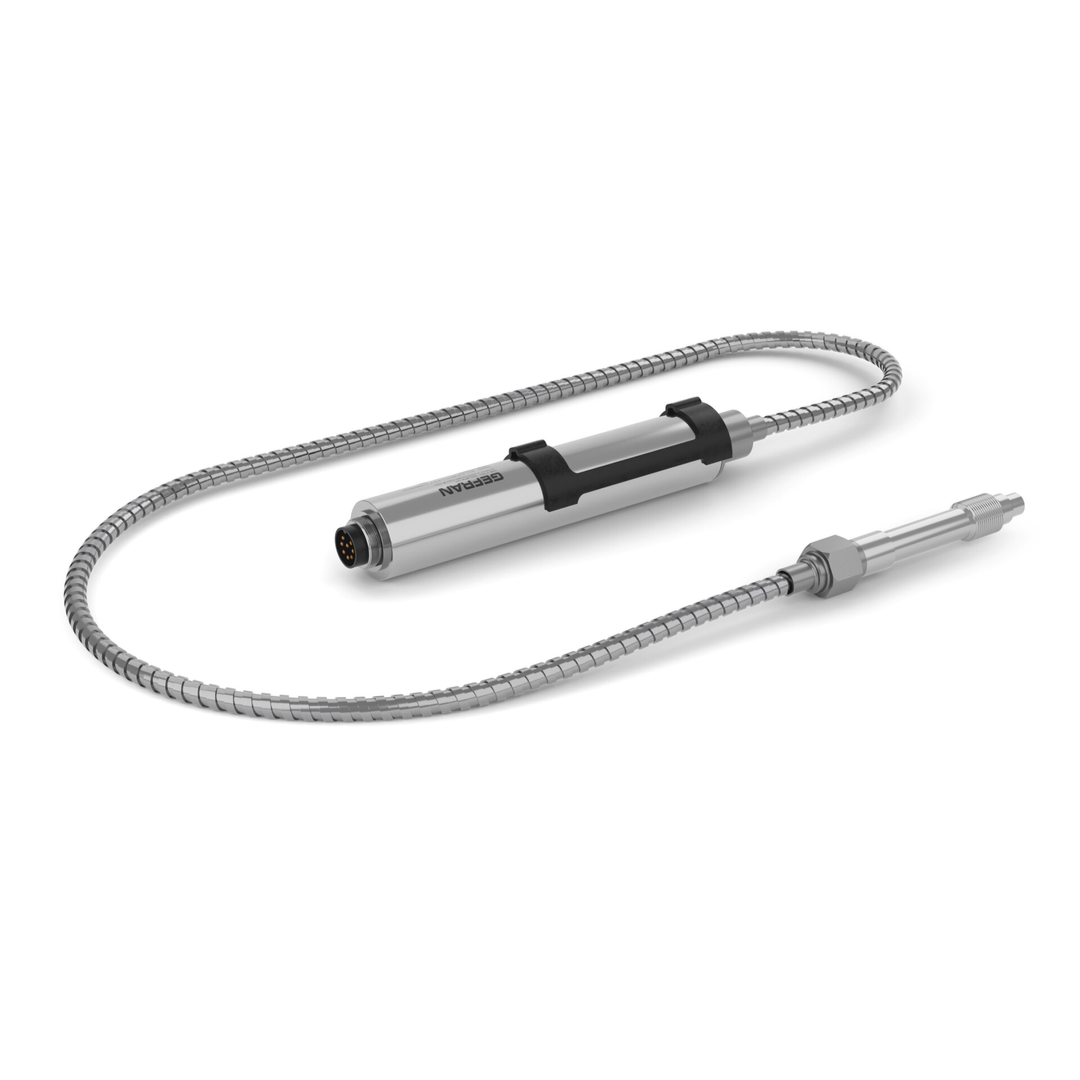

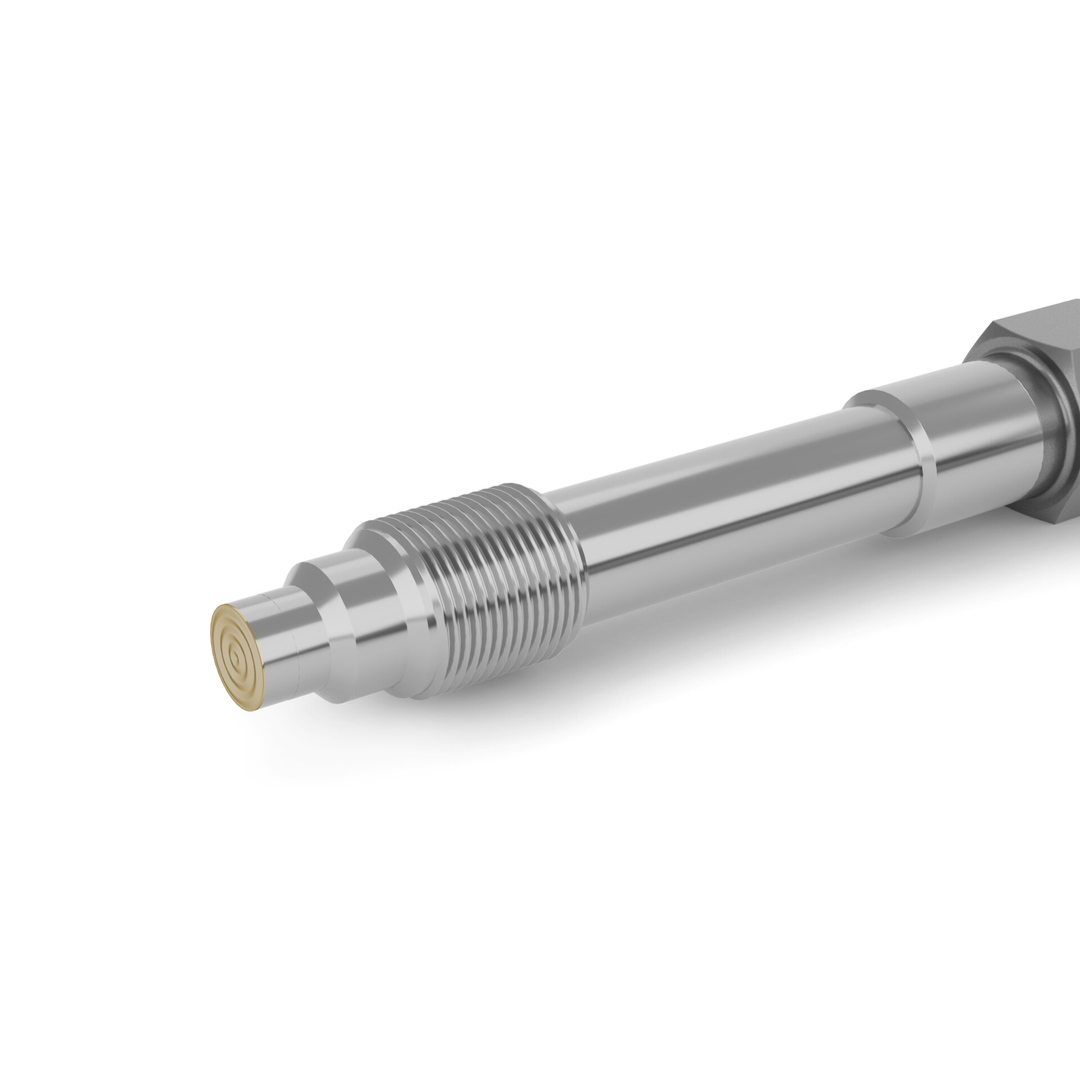

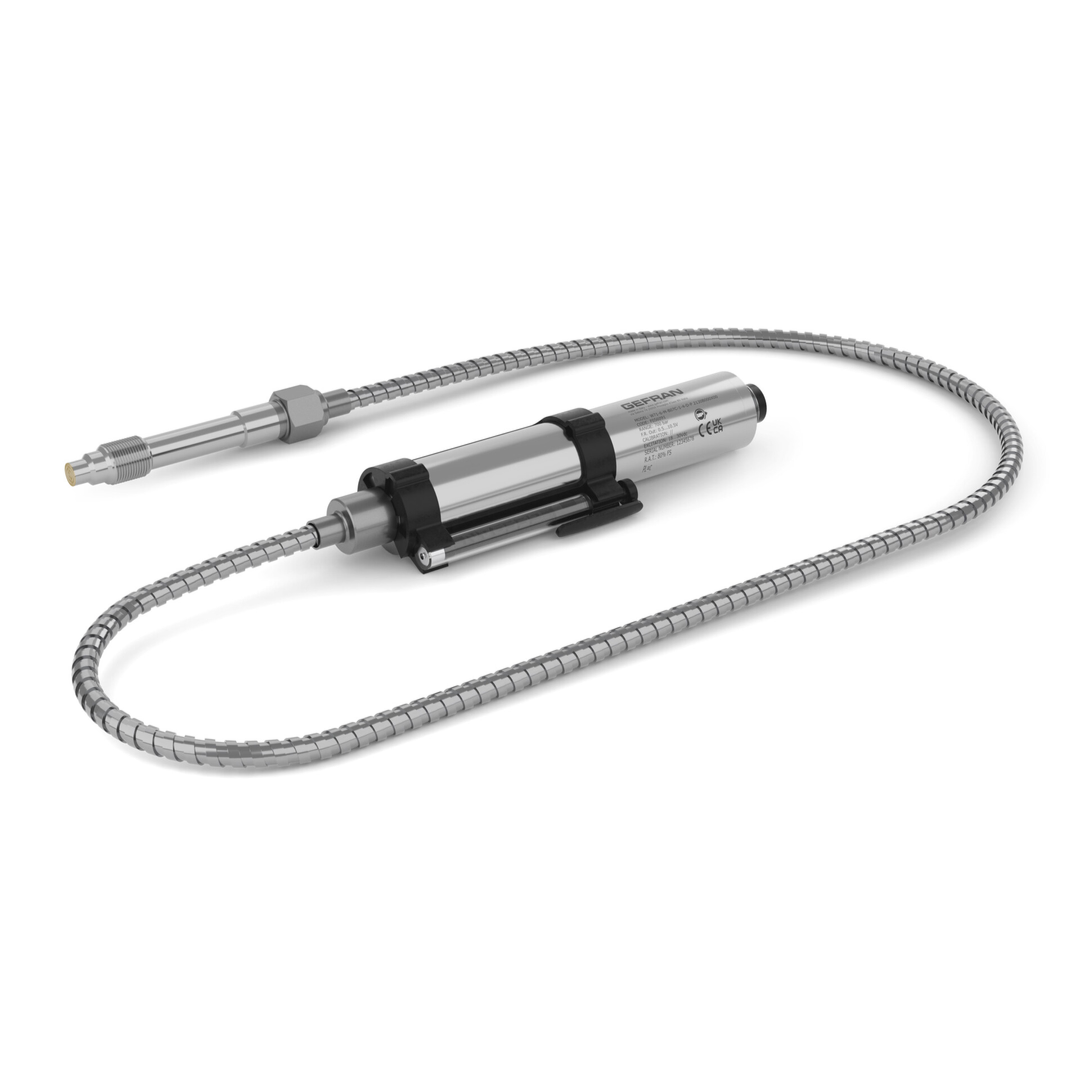

The W7 Performance Level ‘c’ Series are pressure sensors for use in high temperature applications where the process temperatures may reach 315°C (600°F) such as high temperature engineered polymers.
The W Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.
A near incompressible mixture (diathermic oil) is used for pressure transmission.
