Overview

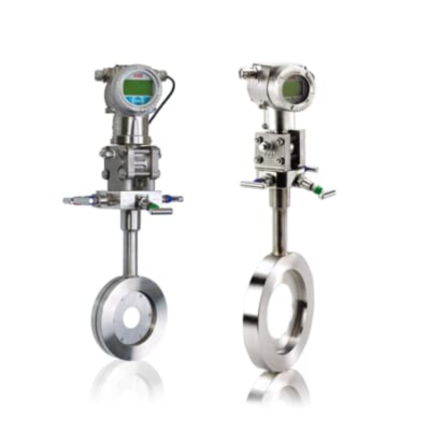

IOMaster joins OriMaster, WedgeMaster and PitoMaster to form the new compact DP family. IOMaster is available in sizes DN15, DN25 and DN40 (½, 1 and 1½ in.) and is designed for metering small flowrates of clean liquids or gases in relatively small pipelines. OriMaster is supplied in two versions – one for volumetric flow and one for mass (or corrected volume) flow.
- Versatile metering package for low flowrates and small pipelines
– Available with or without upstream/downstream pipework; wide choice of orifice plate bores gives a range of DP and pressure loss values to suit application conditions
- Enhanced Reliability, reduced maintenance
– As a one-piece flowmeter, pressure tested at the factory, problems during commissioning and operation associated with impulse line leakage
– As well as installation errors – are virtually eliminated
Data
- Utilizes ABB’s new 266 series DP and multivariable transmitters with optional Through The Glass technology
– enables meter configuration without the removal of the transmitter cover
- Option of alloy or stainless steel transmitter body
– enables supply of an all-stainless-steel, one piece flow meter
– for ambient conditions require stainless steel exposed parts
- Integral ABB 266CSH multivariable transmitter available
– measures DP, Pressure and Temperature
– enables flowmeter to measure mass or corrected gas volume
- Available in small pipe sizes
– pipe sizes of DN15, DN25 or DN40 (½, 1 or 1½ in.)
– for small flowrates and pilot plant applications
- Replaceable orifice plates as standard for all sizes
– enables easy modification to changes in process conditions / fluid
- Option of female-threaded or welded flanged pipework connections
– range of process connections to suit installation
