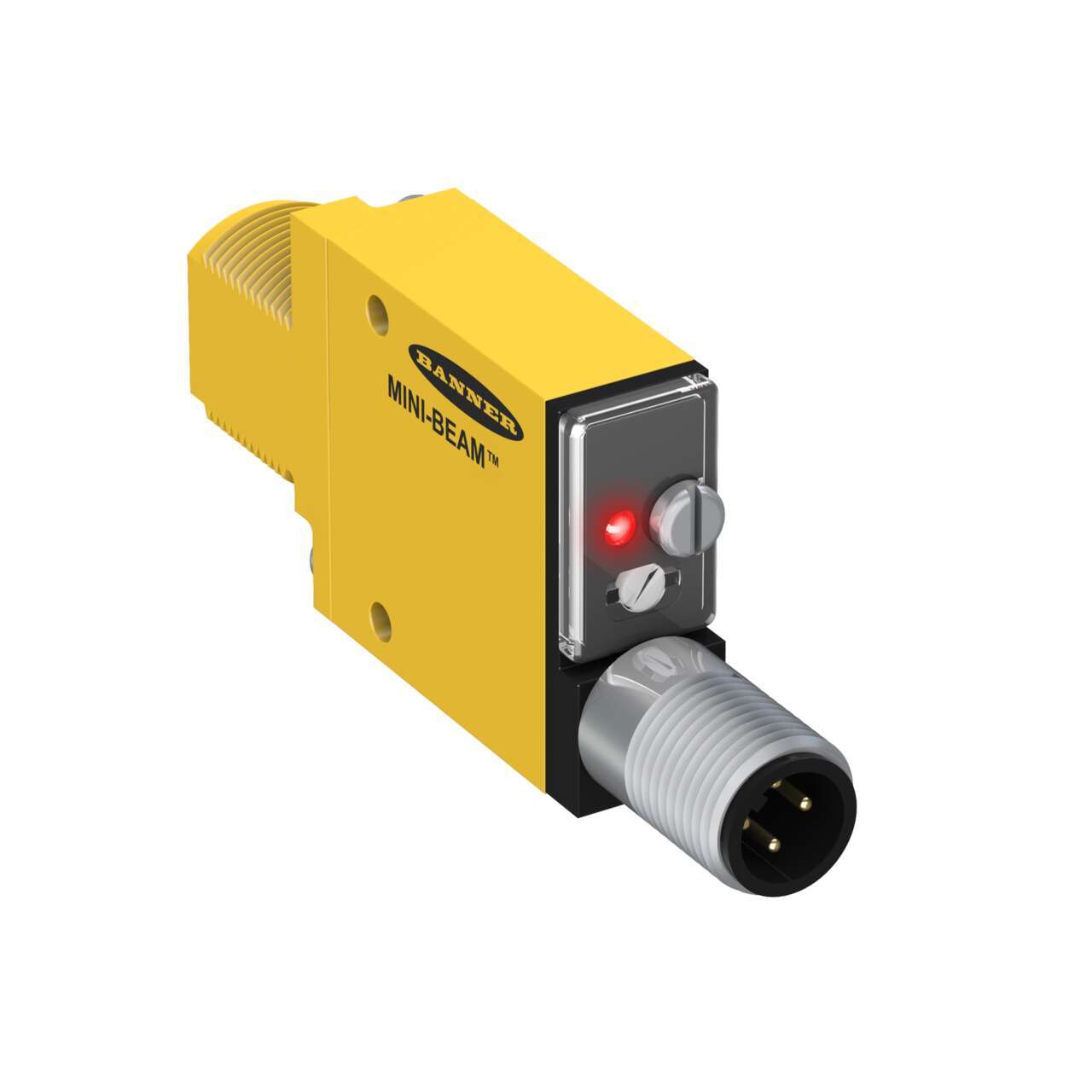

Product Description
| Power | DC |
| Sensing Beam | Infrared LED |
| IP Rating | IP67 |
| NEMA / UL Type Rating | NEMA 4X |
| Supply Voltage | 10-30 V dc |
| Sensing Mode (General) | Opposed |
| Sensing Mode (Detailed) | Receiver |
| Housing Style | Rectangular w/M18 Mount |
| Primary Housing Material | Thermoplastic |
| Input Output | Discrete |
| Max Sensing Distance (mm) | 3000 |
| Outputs | Bipolar (NPN & PNP) |
| Connection | Integral QD |
| Quick Disconnect Type | M12 |
| Operation | Light/Dark Operate |
| Min Op. Temp. (°C) | -20 |
| Max Op. Temp. (°C) | 70 |
| Output response time (ms) | 1 |
| Delay at Power-up (ms) | 100 |
| Repeatability (µs) | 140 |
| Number of Pins | 4 |
| Max Op. Relative Humidity [%] | 90% @ 50°C |
| Lens Material | Acrylic |
| Adjustments | Potentiometer |
| Barrel Diameter (mm) | 18 |
| Indicator | LEDs |
| Opposed Mode Emitter/Receiver | Receiver |
| Feature: Encapsulated | Yes |
| Feature: Audible | No |
| Feature: Quick Disconnect | Yes |
