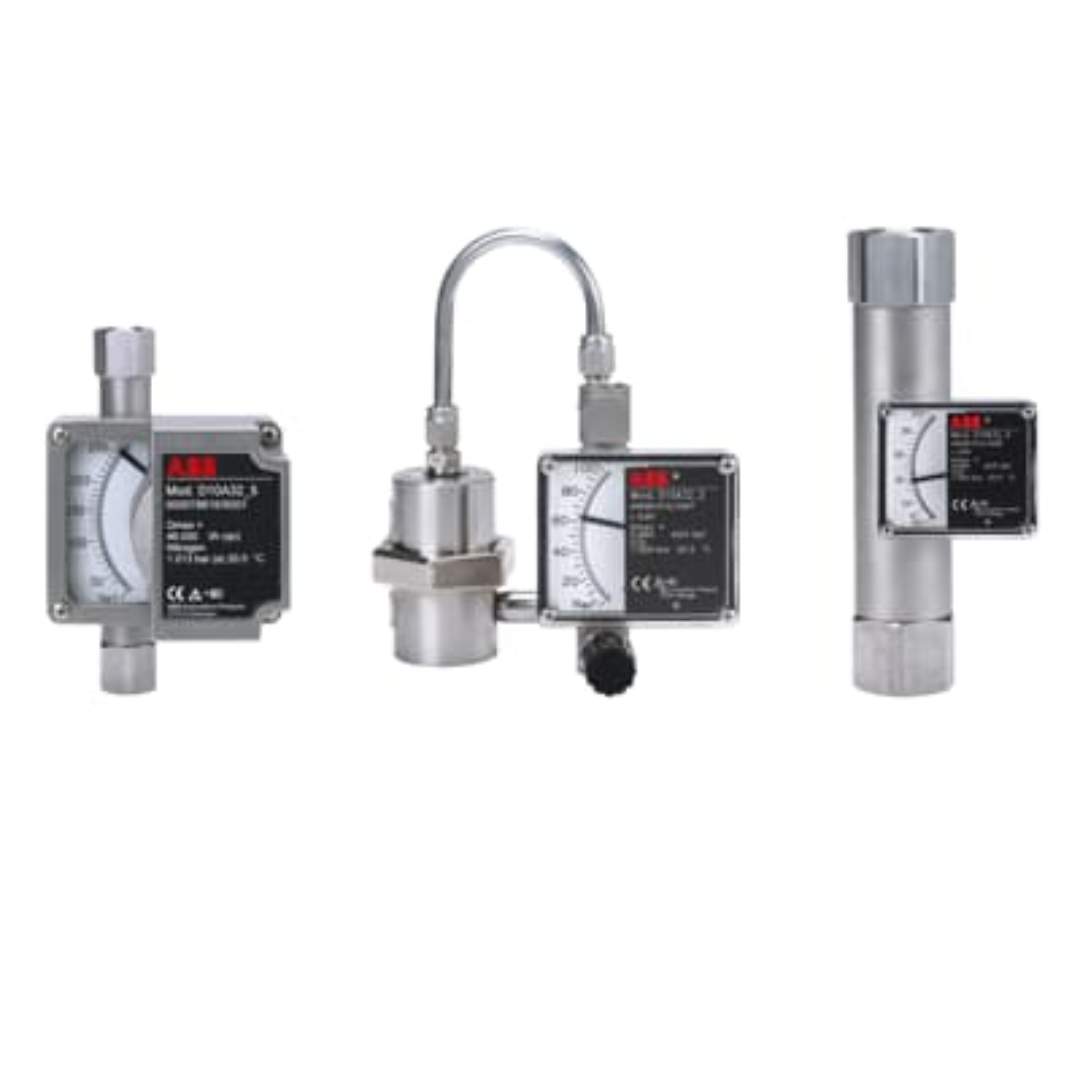

Armored variable area purgemeter FAM3200
The FAM3200 is an armored purgemeter designed to meter small gas and liquid flows. This meter is especially suited for applications with cloudy, opaque or aggressive fluids in chemical and pharmaceutical industries, gas analyzers, process systems, well systems and wherever glass metering tubes cannot be used for safety reasons.
Overview
The solution for the following application areas:
- Water purification
- Gas sampling systems, nitrogen generators
- Burner control
- Chemical injection
- Food and beverage applications
Data
General specifications:
- Application
– Clean, low viscosity liquids and gases - Mounting
– Vertically, in line or wall mouted - Connections
– 1/4 to 1 in., threaded, vertical or horizontal - Flow ranges
– Water flows: 1 to 3000 l/h - Flow turndown
– Typically 10:1 - Operating pressure
– Up to 100 bar (1450 lbf/in 2 g) - Operating temperature
– Up to 180 °C (356 °F) - Accuracy
– Class 6 - Alarms
– Slot sensors, up to 2 off - Tube material and float material
– Stainless steel
