Main features
- Faceplate configurable input
- Protected by a personal code
- Configurable by a serial link
Available resources
2D/3D files
– 4t-96.zip
Guide
– Address Map Modbus
User Manual
– Installation and Operation Manual
– AVyL AC-BR (3.6), Instruction manual
– AGyLift V3, Instruction manual
– SBI-DCP33, DCP Interface card
– GF_EXPRESS README
– GF_eXpress UserGuide
Datasheet
– 4T96 datasheet
Brochure
– Indicators, Alarm Units
– Gefran product range brochure
Configuration Software
– CATALOG VER. 3.2.0
– GF_EXPRESS VER 2.1.54
Certifications
– UK Conformity declaration – 4T96
– EAC CERTIFICATION
– UL Certifications – UL – 1200-1300-4 / 40T96-4 / 40B96
Technical specifications
Overview

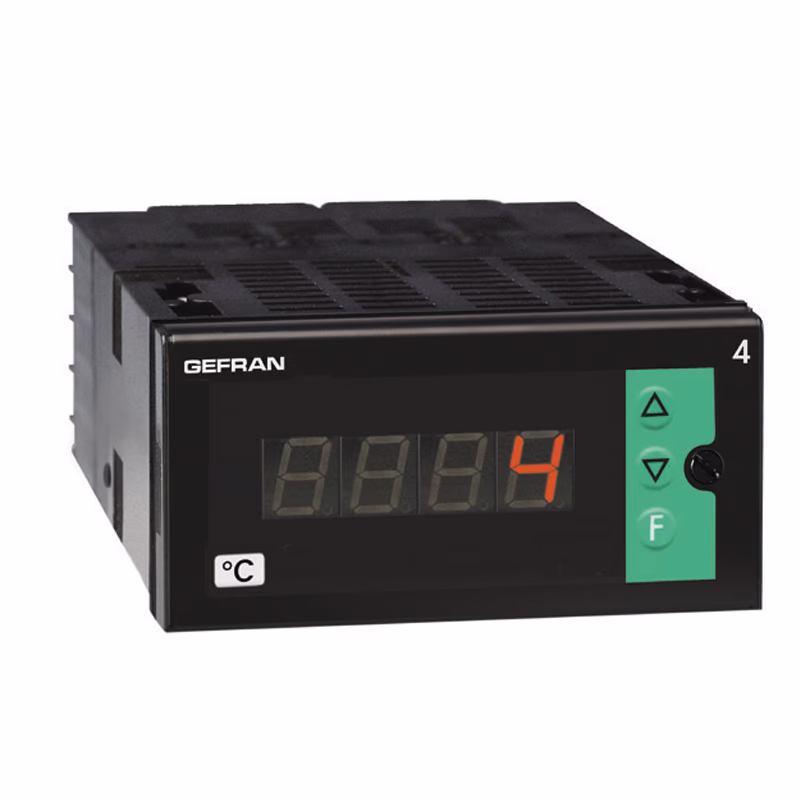

Microprocessor based indicator in both 96×48 (1/8 DIN) formats manufactured with SMT.
The instrument have a lexan membrane faceplate (guaranteed to IP65) which has 3 keys, a 3 / 4 digit display .
The input signal can be selected from a wide range of sensors:
- Thermocouples of type J, K, R, S, T, B, E, N, L GOST, U, G, D, C
- Resistance thermometers Pt100, JPt100; 2 / 3 wire
- PTC and NTC themistors
- Linear inputs 0 to 60/12 to 60mV, 0 to 20/4 to 20mA, 0 to 10/2 to 10/0 to 5/1 to 5/0 to 1/0, 2 to1V
The selection is made using the faceplate keys and correct input contact.
No external shunt or adapter is required.
The programming of the instrument is made easy by grouping the parameters in function blocks and by a simplified data entry menu.
The configuration can be simplified even further using the PC programming kit made up of a connection cable and a menu guide program that runs under windows (see data sheet cod. GF_eXpress).
A configurable personal software protection code (password protection) can be used to restrict the levels of editing and displaying the configuration parameters.
